High Voltage Cables (Copper & Aluminium)

High Voltage Cables (Copper & Aluminium)
69 KV-CE

69 kV 90°C CROSS-LINKED POLYETHYLENE INSULATED WITH COPPER WIRE SCREEN AND POLYETHYLENE JACKETED POWER CABLE

DOWNLOAD FILE
CONDUCTOR
    Compact round stranded annealed copper
CONDUCTOR SHIELD
    Semi conductive tape with extruded Semi-conductive cross-linked polyethylene compound
>
>
INSULATION
    Cross-Linked polyethylene (XLPE)
INSULATION SHIELD
    Semi-conductive tape cross-Linked polyethylene compound
>
>
>
>
>
WATER BLOCKING TAPE
    Semi-conductive water blocking tape
METALLIC SCREEN
    Copper wire screen with copper contact tape
>
SYNTHETIC WATER BLOCKING AND CUSHIONING TAPE
    Non-conductive water blocking tape
RADIAL WATER BARRIER
    Aluminium laminate tape
OUTER SHEATH
    Black Polyethylene (PE/ST7)
CLASSIFICATION
    Maximum conductor temperature 90°C
>
TESTING VOLTAGE
    90,000 Volts
REFERENCE STANDARD
    TIS 2202, TIS 2427 (IEC 60840, IEC 60228)
APPLICATION
    For installation exposed or in raceway, wet or dry location, or direct burial in ground

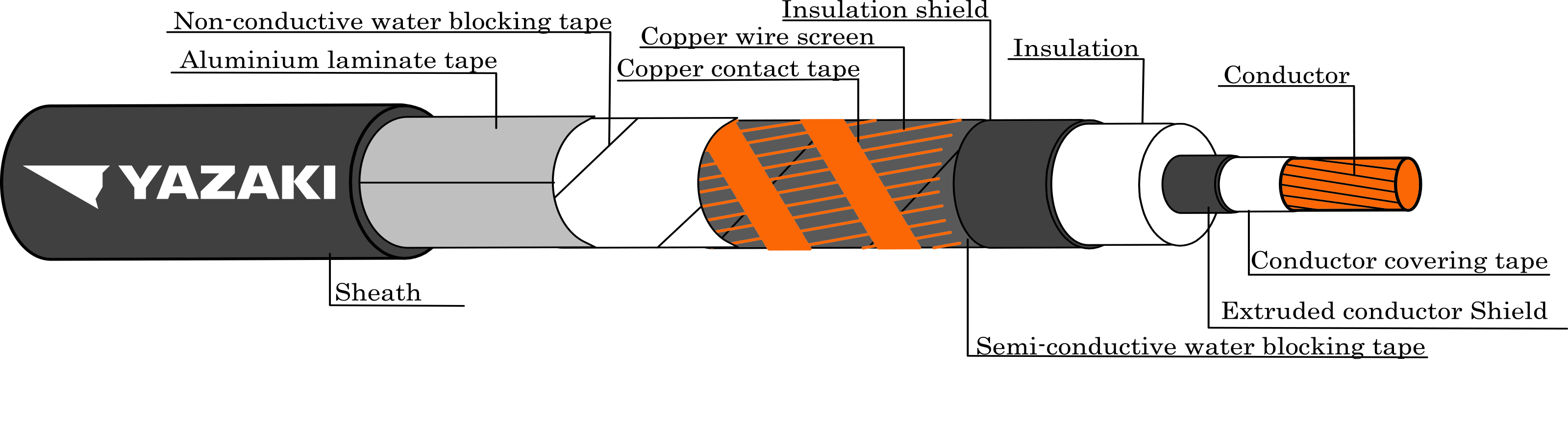

115 KV-CE

115 kV 90°C CROSS-LINKED POLYETHYLENE INSULATED WITH COPPER WIRE SCREEN AND POLYETHYLENE JACKETED POWER CABLE

DOWNLOAD FILE
CONDUCTOR
    Compact round stranded annealed copper
CONDUCTOR SHIELD
    Semi conductive tape with extruded Semi-conductive cross-linked polyethylene compound
>
>
INSULATION
    Cross-Linked polyethylene (XLPE)
INSULATION SHIELD
    Semi-conductive tape cross-Linked polyethylene compound
>
>
>
>
>
WATER BLOCKING TAPE
    Semi-conductive water blocking tape
METALLIC SCREEN
    Copper wire screen with copper contact tape
>
SYNTHETIC WATER BLOCKING AND CUSHIONING TAPE
    Non-conductive water blocking tape
RADIAL WATER BARRIER
    Aluminium laminate tape
OUTER SHEATH
    Black Polyethylene (PE/ST7)
CLASSIFICATION
    Maximum conductor temperature 90°C
>
TESTING VOLTAGE
    160,000 Volts
REFERENCE STANDARD
    TIS 2202, TIS 2427 (IEC 60840, IEC 60228)
APPLICATION
    For installation exposed or in raceway, wet or dry location, or direct burial in ground
