POWER PLANT & TRANSMISSION LINE

Power cables for power plants, power stations, electric power, on ground and underground power transmission. It consists of medium voltage cables. high voltage cable and electrical cables with special features

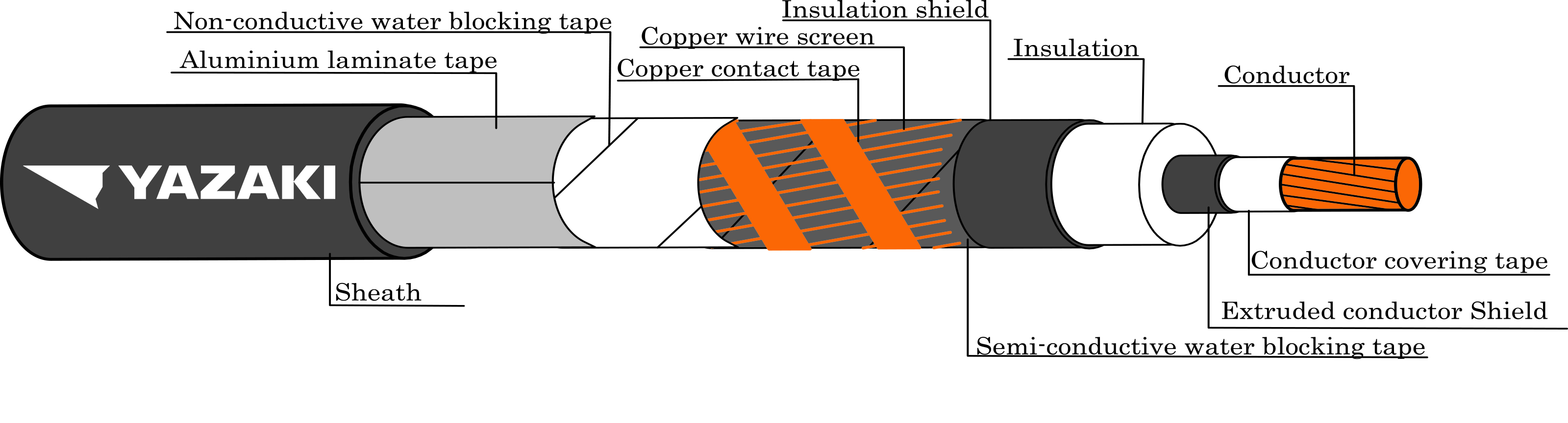

115 KV-CE

115 kV 90°C CROSS-LINKED POLYETHYLENE INSULATED WITH COPPER WIRE SCREEN AND POLYETHYLENE JACKETED POWER CABLE

DOWNLOAD FILE
CONDUCTOR
    Compact round stranded annealed copper
CONDUCTOR SHIELD
    Semi conductive tape with extruded Semi-conductive cross-linked polyethylene compound
>
>
INSULATION
    Cross-Linked polyethylene (XLPE)
INSULATION SHIELD
    Semi-conductive tape cross-Linked polyethylene compound
>
>
>
>
>
WATER BLOCKING TAPE
    Semi-conductive water blocking tape
METALLIC SCREEN
    Copper wire screen with copper contact tape
>
SYNTHETIC WATER BLOCKING AND CUSHIONING TAPE
    Non-conductive water blocking tape
RADIAL WATER BARRIER
    Aluminium laminate tape
OUTER SHEATH
    Black Polyethylene (PE/ST7)
CLASSIFICATION
    Maximum conductor temperature 90°C
>
TESTING VOLTAGE
    160,000 Volts
REFERENCE STANDARD

    TIS 2202, TIS 2427 (IEC 60840, IEC 60228)

APPLICATION
    For installation exposed or in raceway, wet or dry location, or direct burial in ground
69 KV-CE

69 kV 90°C CROSS-LINKED POLYETHYLENE INSULATED WITH COPPER WIRE SCREEN AND POLYETHYLENE JACKETED POWER CABLE

DOWNLOAD FILE
CONDUCTOR
    Compact round stranded annealed copper
CONDUCTOR SHIELD
    Semi conductive tape with extruded Semi-conductive cross-linked polyethylene compound
>
>
INSULATION
    Cross-Linked polyethylene (XLPE)
INSULATION SHIELD
    Semi-conductive tape cross-Linked polyethylene compound
>
>
>
>
>
WATER BLOCKING TAPE
    Semi-conductive water blocking tape
METALLIC SCREEN
    Copper wire screen with copper contact tape
>
SYNTHETIC WATER BLOCKING AND CUSHIONING TAPE
    Non-conductive water blocking tape
RADIAL WATER BARRIER
    Aluminium laminate tape
OUTER SHEATH
    Black Polyethylene (PE/ST7)
CLASSIFICATION
    Maximum conductor temperature 90°C
>
TESTING VOLTAGE
    90,000 Volts
REFERENCE STANDARD
    TIS 2202, TIS 2427 (IEC 60840, IEC 60228)
APPLICATION
    For installation exposed or in raceway, wet or dry location, or direct burial in ground
18/30 KV-CV

18/30 (36) kV 90°C CROSS-LINKED POLYETHYLENEINSULATED AND PVC SHEATHED POWER CABLE

DOWNLOAD FILE
CONDUCTOR
    Compacted round stranded annealed copper
>
>
>
INSULATION
    Cross-Linked polyethylene (XLPE)
INSULATION SHIELD
    Semi-conductive Cross-linked polyethylene compound
CORE IDENTIFICATION
    Single-core : Natural (Translucent)
    3 core : White, Red and Blue
>
>
>
SHIELD
    Copper tape
>
>
>
>
>
OUTER SHEATH
    Black polyvinyl chloride (PVC/ST2)
CLASSIFICATION
    Maximum conductor temperature 90°C
    Circuit voltage not exceeding 36,000 Volts
RATED VOLTAGE
    18,000 Volts between Line to Earth
    30,000 Volts between Line to Line
TESTING VOLTAGE
    63,000 Volts
REFERENCE STANDARD
    IEC 60502-1, IEC 60228, IEC 60332-1
APPLICATION
    For installation exposed or in raceway, wet or dry location, or direct burial in ground

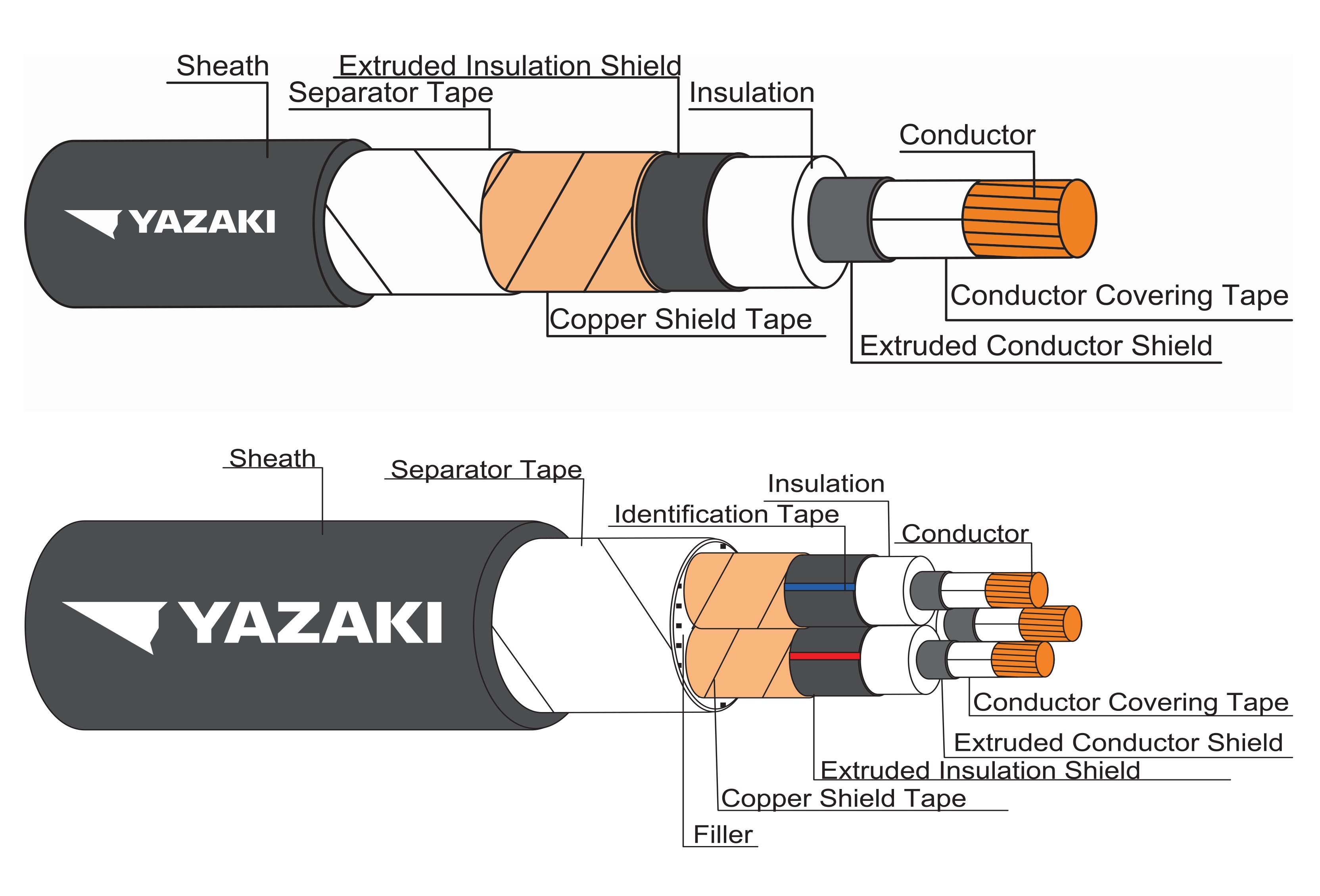

12/20 KV-CV

12/20 (24) kV 90°C CROSS-LINKED POLYETHYLENE INSULATED ANDPVC SHEATHED POWER CABLE

DOWNLOAD FILE
CONDUCTOR
    Compacted round stranded annealed copper
>
>
>
INSULATION
    Cross-Linked polyethylene (XLPE)
INSULATION SHIELD
    Semi-conductive Cross-linked polyethylene compound
CORE IDENTIFICATION
    Single-core : Natural (Translucent)
    3 core : White, Red and Blue
>
>
>
SHIELD
    Copper tape
>
>
>
>
>
OUTER SHEATH
    Black polyvinyl chloride (PVC/ST2)
CLASSIFICATION
    Maximum conductor temperature 90°C
    Circuit voltage not exceeding 24,000 Volts
RATED VOLTAGE
    12,000 Volts between Line to Earth
    24,000 Volts between Line to Line
TESTING VOLTAGE
    42,000 Volts
REFERENCE STANDARD
    IEC 60502-1, IEC 60228, IEC 60332-1
APPLICATION
    For installation exposed or in raceway, wet or dry location, or direct burial in ground
8.7/15KV-CV

8.7/15 (17.5) kV 90°C CROSS-LINKED POLYETHYLENE INSULATED ANDPVC SHEATHED POWER CABLE

DOWNLOAD FILE
CONDUCTOR
    Compacted round stranded annealed copper
>
>
>
INSULATION
    Cross-Linked polyethylene (XLPE)
INSULATION SHIELD
    Semi-conductive Cross-linked polyethylene compound
CORE IDENTIFICATION
    Single-core : Natural (Translucent)
    3 core : White, Red and Blue
>
>
>
SHIELD
    Copper tape
>
>
>
>
>
OUTER SHEATH
    Black polyvinyl chloride (PVC/ST2)
CLASSIFICATION
    Maximum conductor temperature 90°C
    Circuit voltage not exceeding 17,500 Volts
RATED VOLTAGE
    8,700 Volts between Line to Earth
    15,000 Volts between Line to Line
TESTING VOLTAGE
    30,500 Volts
REFERENCE STANDARD
    IEC 60502-1, IEC 60228, IEC 60332-1
APPLICATION
    For installation exposed or in raceway, wet or dry location, or direct burial in ground
6/10 KV-CV

6/10 (12) kV 90°C CROSS-LINKED POLYETHYLENE INSULATED AND PVC SHEATHED POWER CABLE

DOWNLOAD FILE
CONDUCTOR
    Compacted round stranded annealed copper
>
>
>
INSULATION

    Cross-Linked polyethylene (XLPE)

INSULATION SHIELD
    Semi-conductive Cross-linked polyethylene compound
CORE IDENTIFICATION
    Single-core : Natural (Translucent)
    3 core : White, Red and Blue
>
>
>
SHIELD
    Copper tape
>
>
>
>
>
OUTER SHEATH
    Black polyvinyl chloride (PVC/ST2)
CLASSIFICATION
    Maximum conductor temperature 90°C
    Circuit voltage not exceeding 12,000 Volts
RATED VOLTAGE
    6,000 Volts between Line to Earth
    10,000 Volts between Line to Line
TESTING VOLTAGE
    21,000 Volts
REFERENCE STANDARD
    IEC 60502-1, IEC 60228, IEC 60332-1
APPLICATION
    For installation exposed or in raceway, wet or dry location, or direct burial in ground
3.6/6 KV-CV

3.6/6 (7.2) kV 90°C CROSS-LINKED POLYETHYLENE INSULATED ANDPVC SHEATHED POWER CABLE

DOWNLOAD FILE
CONDUCTOR
    Compacted round stranded annealed copper
>
>
>
INSULATION
    Cross-Linked polyethylene (XLPE)
INSULATION SHIELD
    Semi-conductive Cross-linked polyethylene compound
CORE IDENTIFICATION
    Single-core : Natural (Translucent)
    3 core : White, Red and Blue
>
>
>
SHIELD
    Copper tape
>
>
>
>
>
OUTER SHEATH
    Black polyvinyl chloride (PVC/ST2)
CLASSIFICATION
    Maximum conductor temperature 90°C
    Circuit voltage not exceeding 7,200 Volts
RATED VOLTAGE
    3,600 Volts between Line to Earth
    6,000 Volts between Line to Line
TESTING VOLTAGE
    12,500 Volts
REFERENCE STANDARD
    IEC 60502-1, IEC 60228, IEC 60332-1
APPLICATION
    For installation exposed or in raceway, wet or dry location, or direct burial in ground

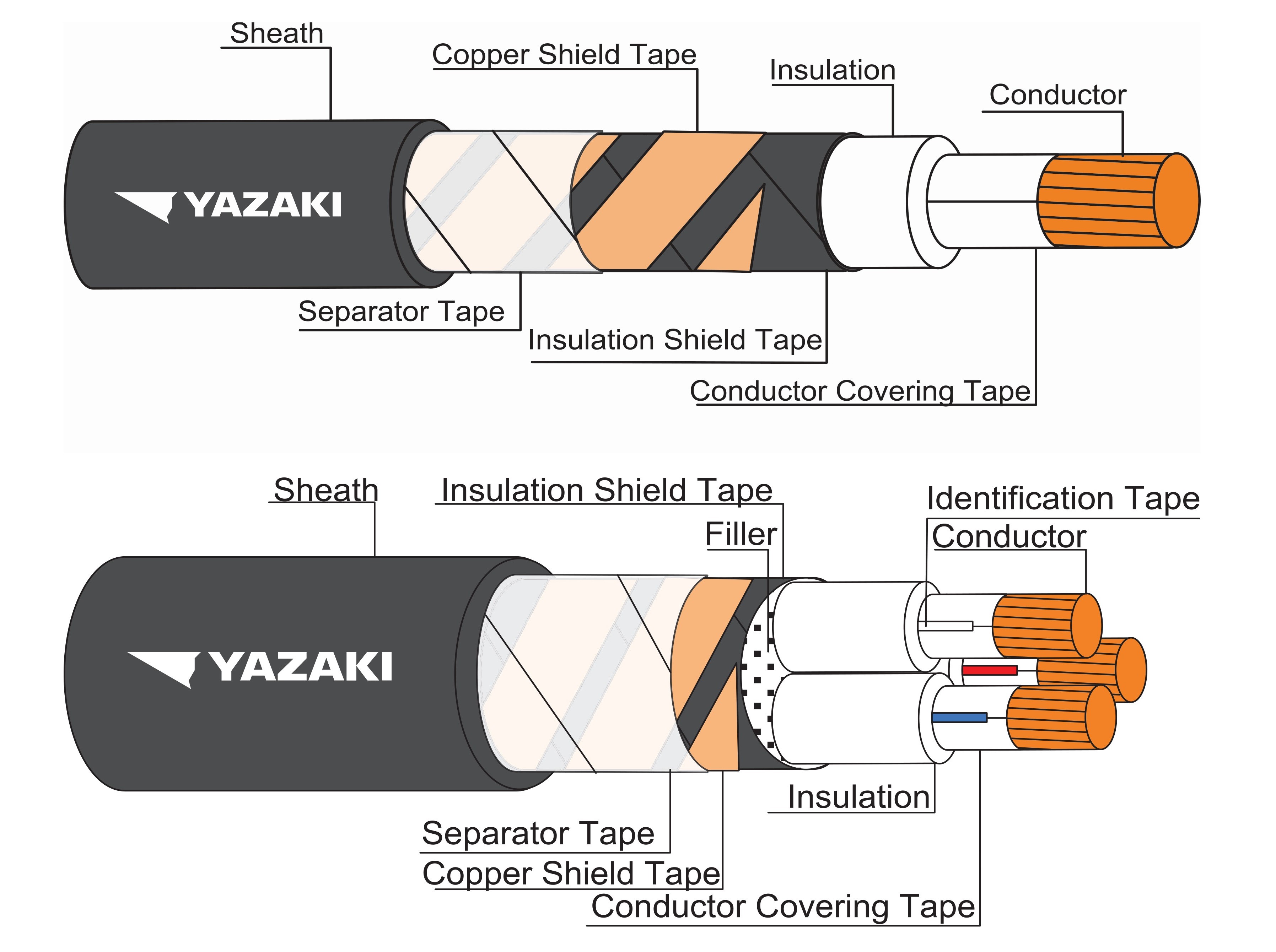

1.8/3 KV-CV

1.8/3 (3.6) kV 90°C CROSS-LINKED POLYETHYLENE INSULATED PVCSHEATHED POWER CABLE

DOWNLOAD FILE
CONDUCTOR
    Compacted round stranded annealed copper
>
>
>
INSULATION
    Cross-Linked polyethylene (XLPE)
INSULATION SHIELD
    Semi-conductive tape
CORE IDENTIFICATION
    Single-core : Natural (Translucent)
    3 core : White, Red and Blue
>
>
>
SHIELD
    Copper tape
>
>
>
>
>
OUTER SHEATH
    Black polyvinyl chloride (PVC/ST2)
CLASSIFICATION
    Maximum conductor temperature 90°C
    Circuit voltage not exceeding 3,600 Volts
RATED VOLTAGE
    1,800 Volts between Line to Earth
    3,000 Volts between Line to Line
TESTING VOLTAGE
    6,500 Volts
REFERENCE STANDARD
    IEC 60502-1, IEC 60228, IEC 60332-1
APPLICATION
    For installation exposed or in raceway, wet or dry location, or direct burial in ground

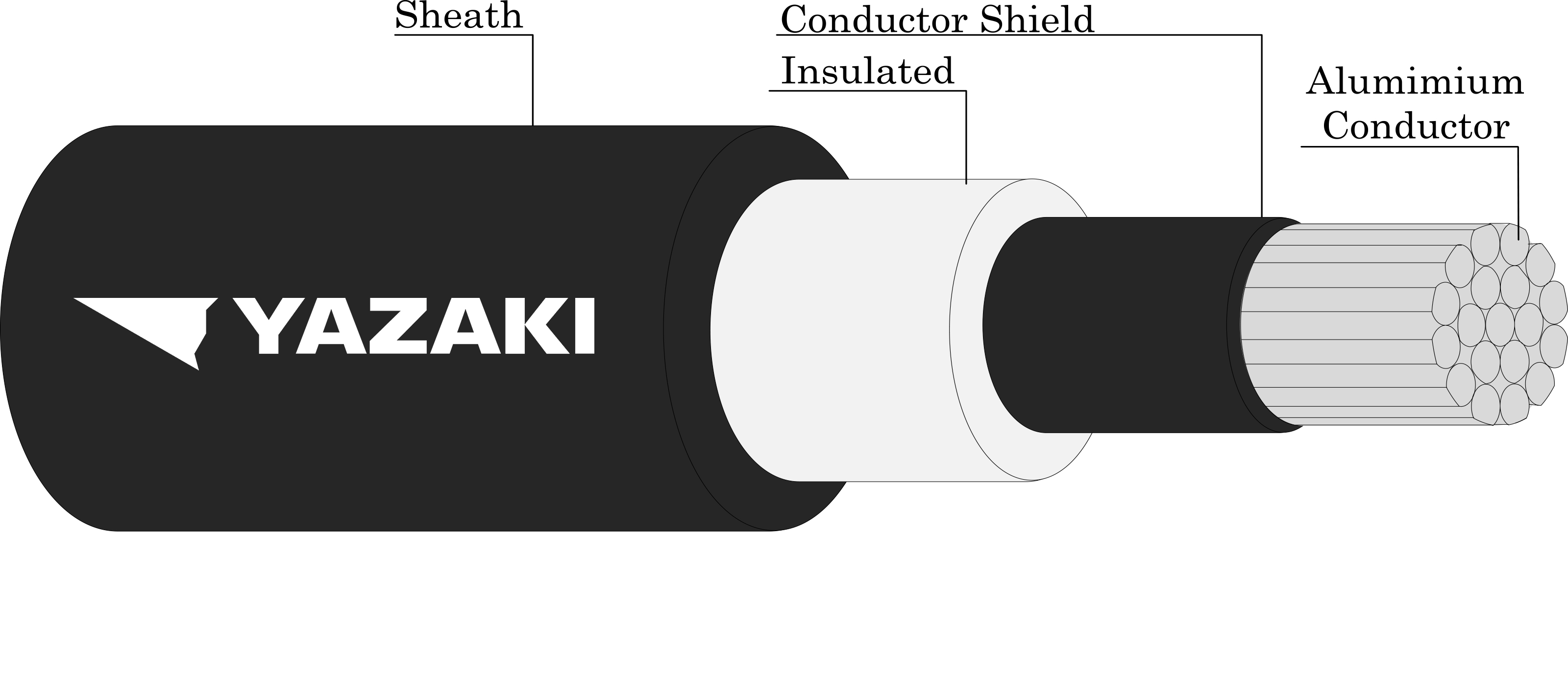

35 KV-CC

35 KV ALL ALUMINIUM CONDUCTOR SPACED AERIAL CABLE

DOWNLOAD FILE
CONDUCTOR
    Compacted round stranded hard drawn aluminuim wire
>
CONDUCTOR SCREEN
    Semi-Conductive Cross-linked polyethylene (XLPE) compound
>
INSULATION
    Cross-Linked polyethylene (XLPE)
>
>
>
>
>
>
>
>
>
>
>
OUTER SHEATH
    Black Cross-Linked polyethylene (XLPE)
CLASSIFICATION
    Maximum conductor temperature 90°C
    Circuit voltage not exceeding 35,000 Volts
>
TESTING VOLTAGE
    49,000 Volts
REFERENCE STANDARD
    ICEA S-66-524, ICEA S-93-639
APPLICATION
    For Aerial power transmission and distribution line
25 KV-CC

25 KV ALL ALUMINIUM CONDUCTOR SPACED AERIAL CABLE

DOWNLOAD FILE
CONDUCTOR
    Compacted round stranded hard drawn aluminuim wire
>
CONDUCTOR SCREEN
    Semi-Conductive Cross-linked polyethylene (XLPE) compound
>
INSULATION
    Cross-Linked polyethylene (XLPE)
>
>
>
>
>
>
>
>
>
>
>
OUTER SHEATH
    Black Cross-Linked polyethylene (XLPE)
CLASSIFICATION
    Maximum conductor temperature 90°C
    Circuit voltage not exceeding 25,000 Volts
>
TESTING VOLTAGE
    38,000 Volts
REFERENCE STANDARD
    ICEA S-66-524, ICEA S-93-639
APPLICATION
    For Aerial power transmission and distribution line

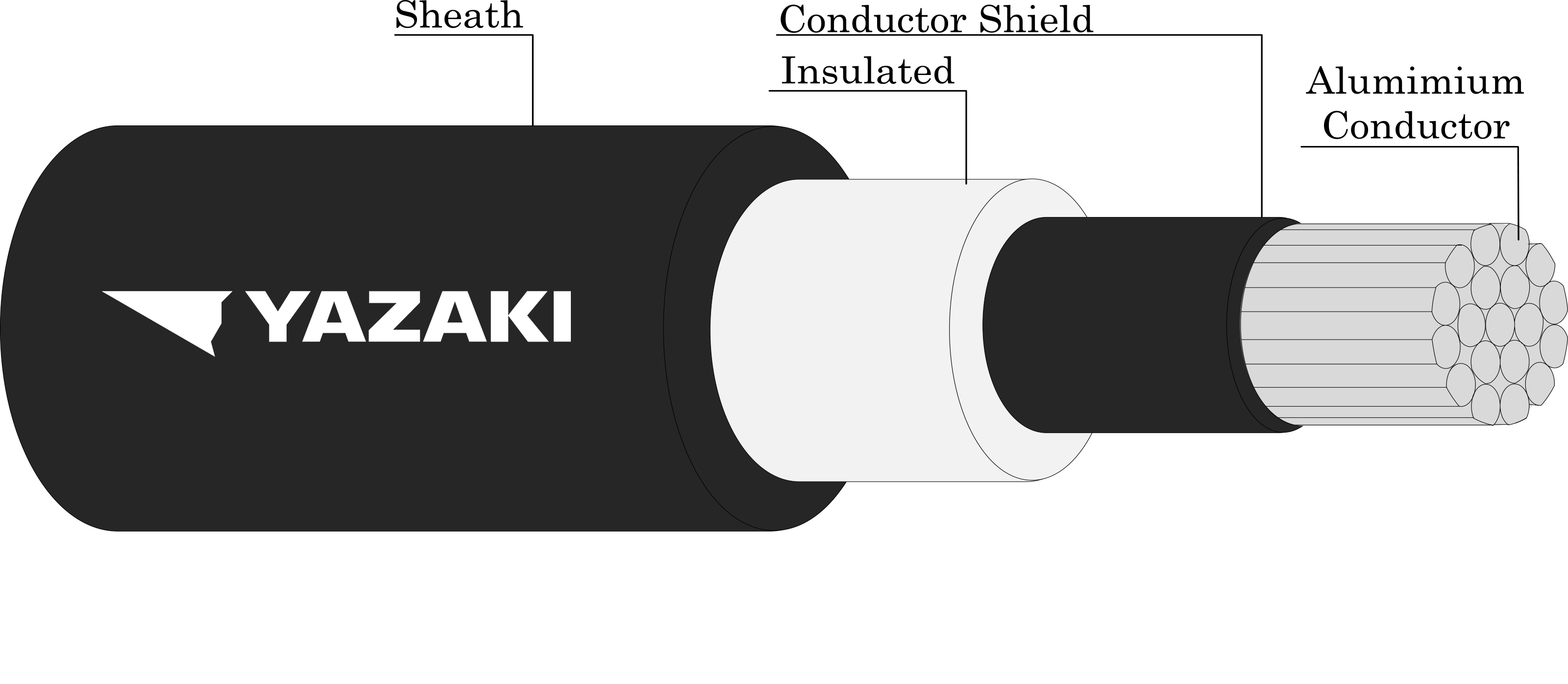

15KV-CC

15 KV ALL ALUMINIUM CONDUCTOR SPACED AERIAL CABLE

DOWNLOAD FILE
CONDUCTOR
    Compacted round stranded hard drawn aluminuim wire
>
CONDUCTOR SCREEN
    Semi-Conductive Cross-linked polyethylene (XLPE) compound
>
INSULATION
    Cross-Linked polyethylene (XLPE)
>
>
>
>
>
>
>
>
>
>
>
OUTER SHEATH
    Black Cross-Linked polyethylene (XLPE)
CLASSIFICATION
    Maximum conductor temperature 90°C
    Circuit voltage not exceeding 15,000 Volts
>
TESTING VOLTAGE
    27,000 Volts
REFERENCE STANDARD
    ICEA S-66-524, ICEA S-93-639
APPLICATION
    For Aerial power transmission and distribution line
33 KV-OC

33 KV CROSS-LINKED POLYETHYLENE PARTIAL INSULATED ALLALUMINIUM CABLE

DOWNLOAD FILE
CONDUCTOR
    Compacted round stranded hard drawn aluminuim wire
>
CONDUCTOR SCREEN
    Semi-Conductive Cross-linked polyethylene (XLPE) compound
>
INSULATION
    Black Cross-Linked polyethylene (XLPE)
>
>
>
>
>
>
>
>
>
>
>
>
CLASSIFICATION
    Maximum conductor temperature 90°C
    Circuit voltage not exceeding 33,000 Volts
>
TESTING VOLTAGE
    17,000 Volts
REFERENCE STANDARD
    ICEA S-66-524, ICEA S-93-639
APPLICATION
    For Aerial power transmission and distribution line

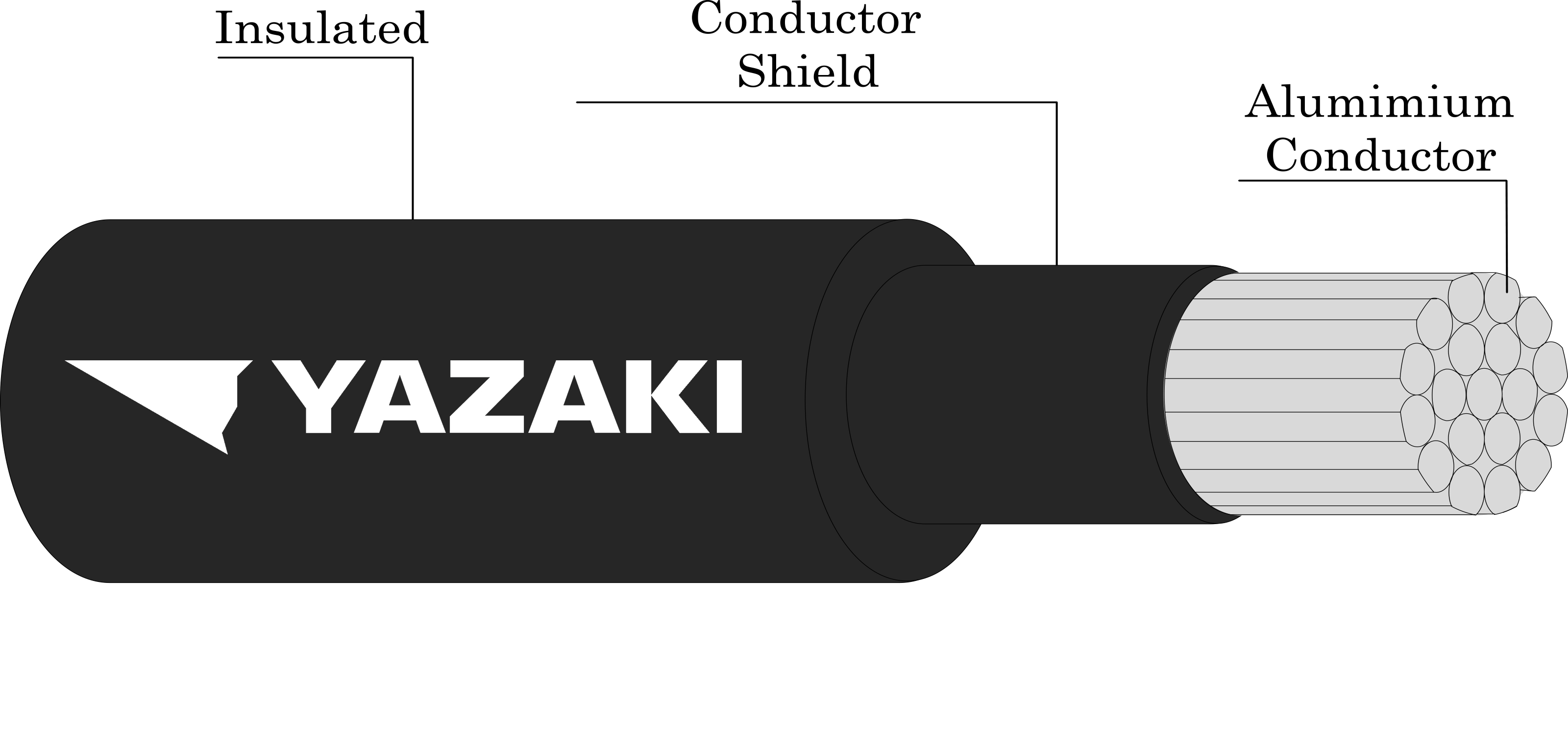

24 KV-OC

24 KV CROSS-LINKED POLYETHYLENE PARTIAL INSULATED ALLALUMINIUM CABLE

DOWNLOAD FILE
CONDUCTOR
    Compacted round stranded hard drawn aluminium wires
>
CONDUCTOR SCREEN
    Semi-Conductive Cross-linked polyethylene (XLPE) compound
>
INSULATION
    Black Cross-Linked polyethylene (XLPE)
>
>
>
>
>
>
>
>
>
>
>
>
CLASSIFICATION
    Maximum conductor temperature 90°C
    Circuit voltage not exceeding 24,000 Volts
>
TESTING VOLTAGE
    11,000 Volts
REFERENCE STANDARD
    ICEA S-66-524, ICEA S-93-639
APPLICATION
    For Aerial power transmission and distribution line

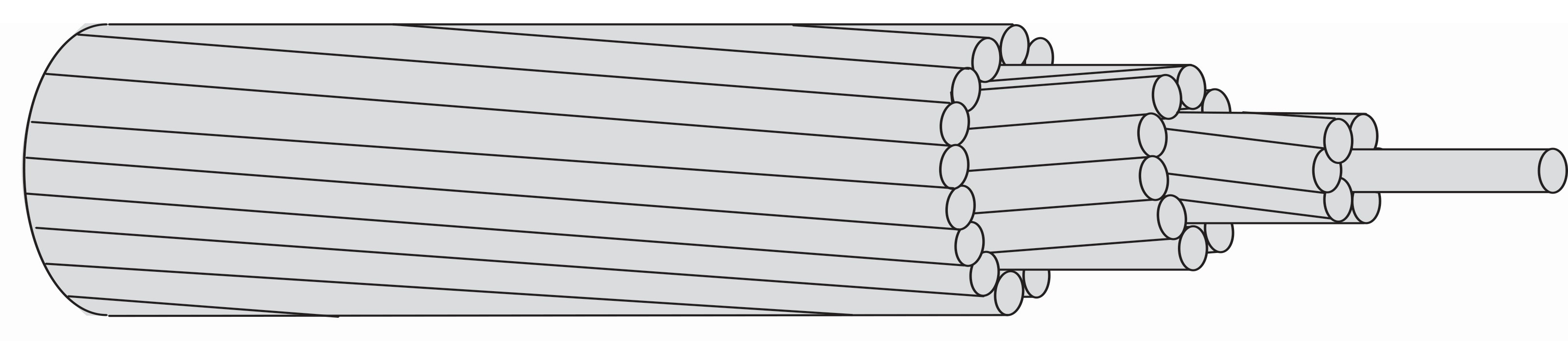

AAC

ALL ALUMINUIM STRANDED CONDUCTOR

DOWNLOAD FILE
CONDUCTOR
    Hard drawn aluminuim wires, concentric stranded conductor
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
REFERENCE STANDARD
    TIS 85-2548
APPLICATION
    For overhead transmission and distribution line

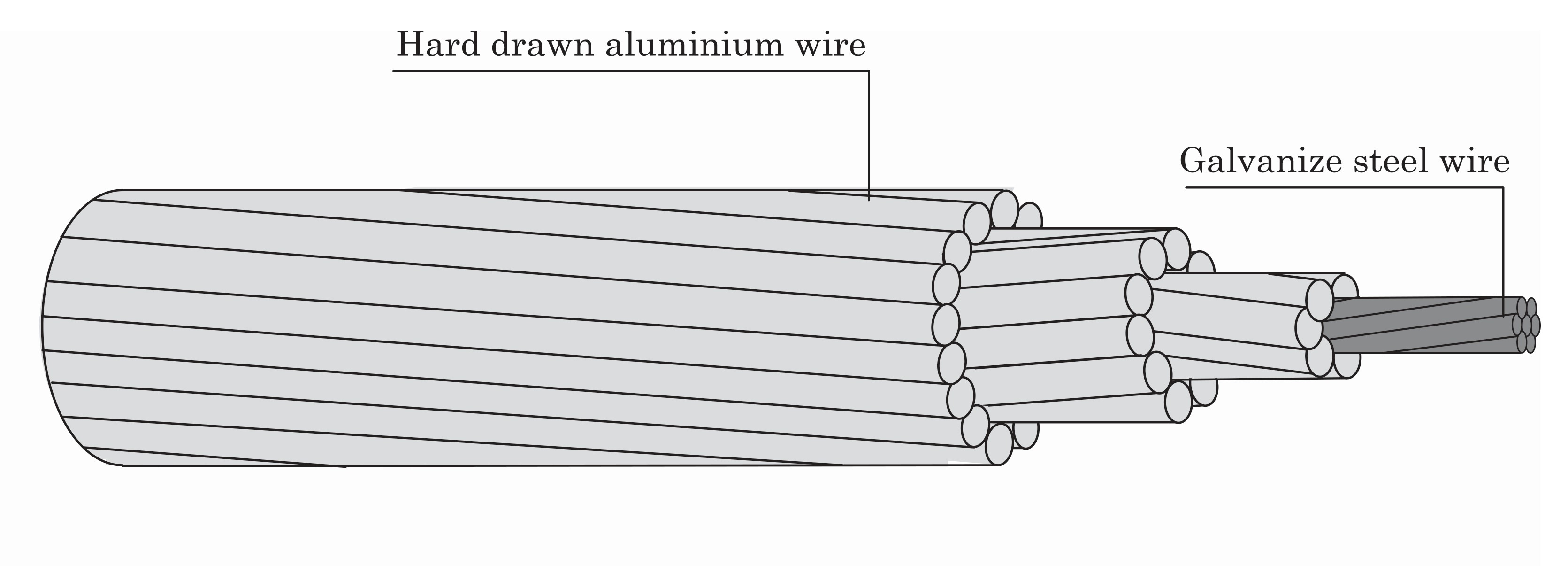

ACSR

ALL ALUMINIUM CONDUCTOR STEEL REINFORCED

DOWNLOAD FILE
CONDUCTOR
    Hard draw aluminuim wires, concentric stranded conductor
    Steel Core : Galvanize steel (Zinc coted), solid and concentric stranded
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
REFERENCE STANDARD
    TIS 85-2548
APPLICATION
    For overhead transmission and distribution line
