Thai Yazaki Electric Wire

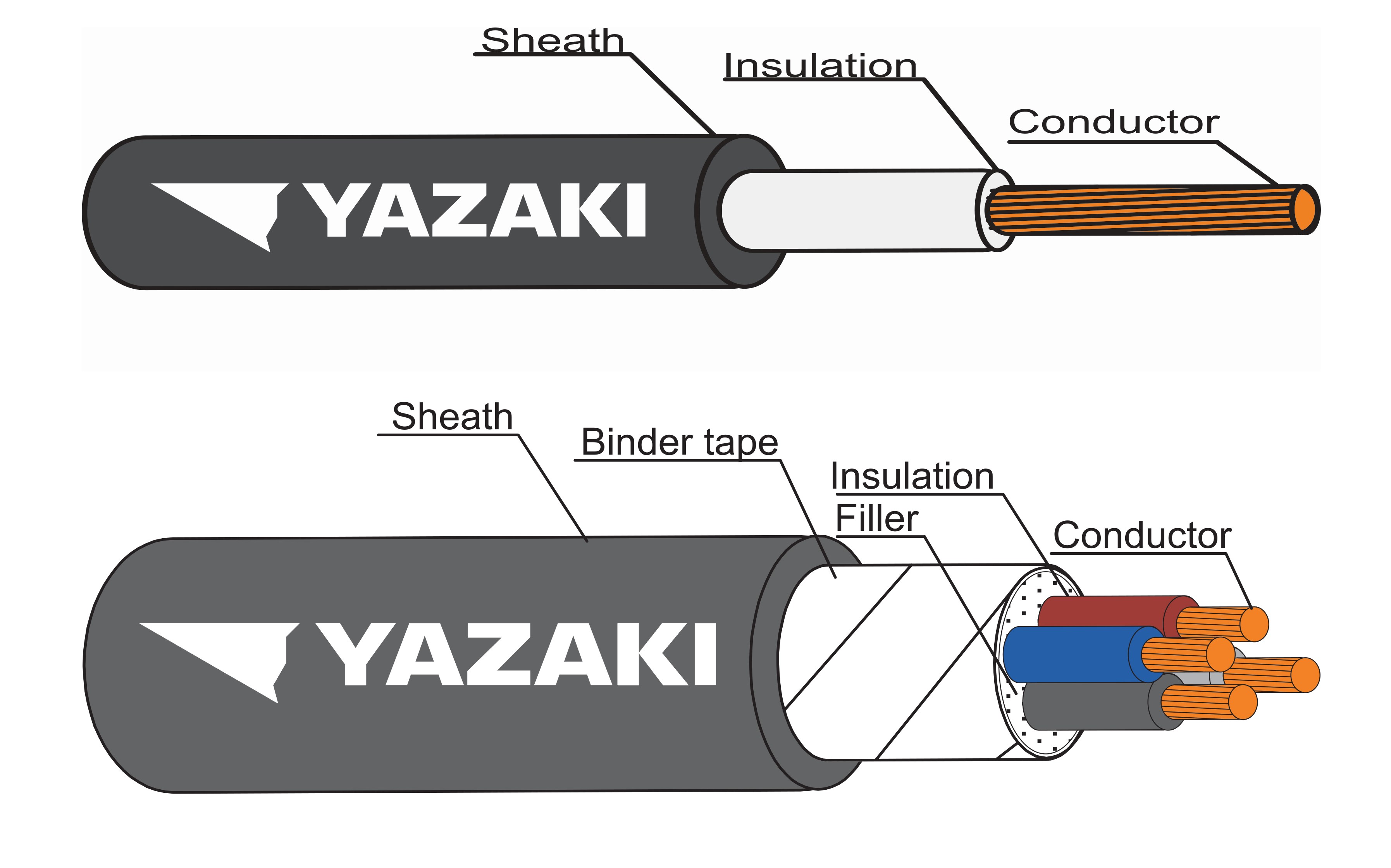

FD-0.6/1KV-CV

0.6/1kV 90°C CROSS-LINKED POLYETHYLENE INSULATED PVC SHEATHED FLAME RETARDANT POWER CABLE

DOWNLOAD FILE

CONDUCTOR

Non-compacted and compacted round annealed copper

INSULATION

Cross-linked Polyethylene (XLPE)

CORE IDENTIFICATION

Single-core : Natural (Translucent)

2 Core : Blue and Brown

3 Core : Brown, Black and Grey

4 Core : Blue, Brown, Black and Grey

Other colors are available on customer request

OUTER SHEATH

Black flame retardant polyvinyl chloride (PVC/ST2)

CLASSIFICATION

Maximum conductor temperature 90°C

Circuit voltage not exceeding 1,200 Volts

RATED VOLTAGE

600 Volts between Line to Earth

1,000 Volts between Line to Line

TESTING VOLTAGE

3,500 Volts

REFERENCE STANDARD

IEC 60502-1, IEC 60228, IEC 60332-1, IEC 60332-3-24 (Cat.C)

APPLICATION

For installation exposed or in raceway, wet or dry location, or direct burial in ground

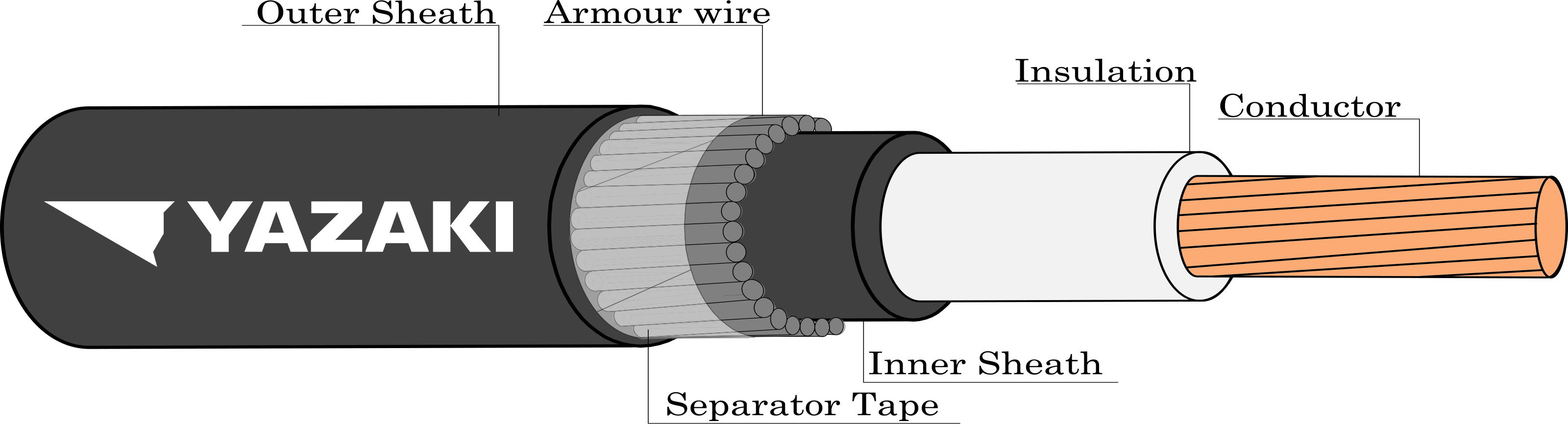

FD-0.6/1KV-CV-AWA

0.6/1(1.2)kV 90 °C CROSS -LINKED POLYETHYLENE INSULATED PVC SHEATHED, WITH ALUMINIUM WIRE ARMORED FLAME RETARDANT POWER CABLE

DOWNLOAD FILE

CONDUCTOR

Non-compacted and compacted round annealed copper

INSULATION

Cross-linked Polyethylene (XLPE)

CORE IDENTIFICATION

Single-core : Natural (Translucent)

ARMOUR

Aluminium wires

OUTER SHEATH

Black flame retardant polyvinyl chloride (PVC/ST2)

CLASSIFICATION

Maximum conductor temperature 90°C

Circuit voltage not exceeding 1,200 Volts

RATED VOLTAGE

600 Volts between Line to Earth

1,000 Volts between Line to Line

TESTING VOLTAGE

3,500 Volts

REFERENCE STANDARD

IEC 60502-1, IEC 60228, IEC 60332-1, IEC 60332-3-24 (Cat.C)

APPLICATION

For installation exposed or in raceway, wet or dry location, or direct burial in ground

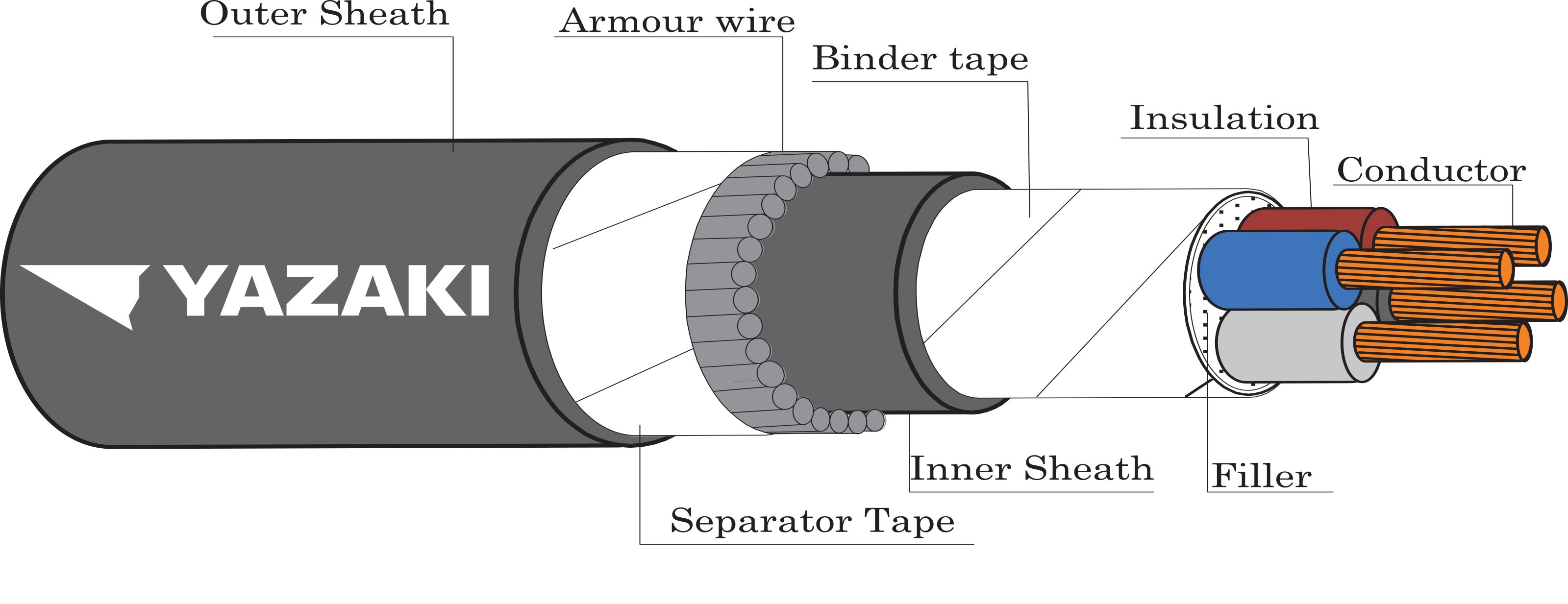

FD-0.6/1 KV-CV-SWA

0.6/1 KV 90°C CROSS-LINKED POLYETHYLENE INSULATED PVC SHEATHED, WITH GALVANIZED STEEL WIRES ARMORED POWER CABLE

DOWNLOAD FILE

CONDUCTOR

Non-compacted and compacted stranded annealed copper

INSULATION

Cross-linked Polyethylene (XLPE)

CORE IDENTIFICATION

2 Core : Blue and Brown

3 Core : Brown, Black and Grey

4 Core : Blue, Brown, Black and Grey

Other colors are available on customer request

INNER SHEATH

Black polyvinyl chloride (PVC)

ARMOUR

Galvanized Steel Wires

OUTER SHEATH

Black Flame retardant polyvinyl chloride (PVC/ST2)

CLASSIFICATION

Maximum conductor temperature 90°C

Circuit voltage not exceeding 1,200 Volts

RATED VOLTAGE

600 Volts between Line to Earth

1,000 Volts between Line to Line

TESTING VOLTAGE

3,500 Volts

REFERENCE STANDARD

IEC 60502-1, IEC 60228, IEC 60332-1,

IEC 60332-3-24 (Cat.C)

APPLICATION

For installation exposed or in raceway, wet or dry location, or direct burial in ground

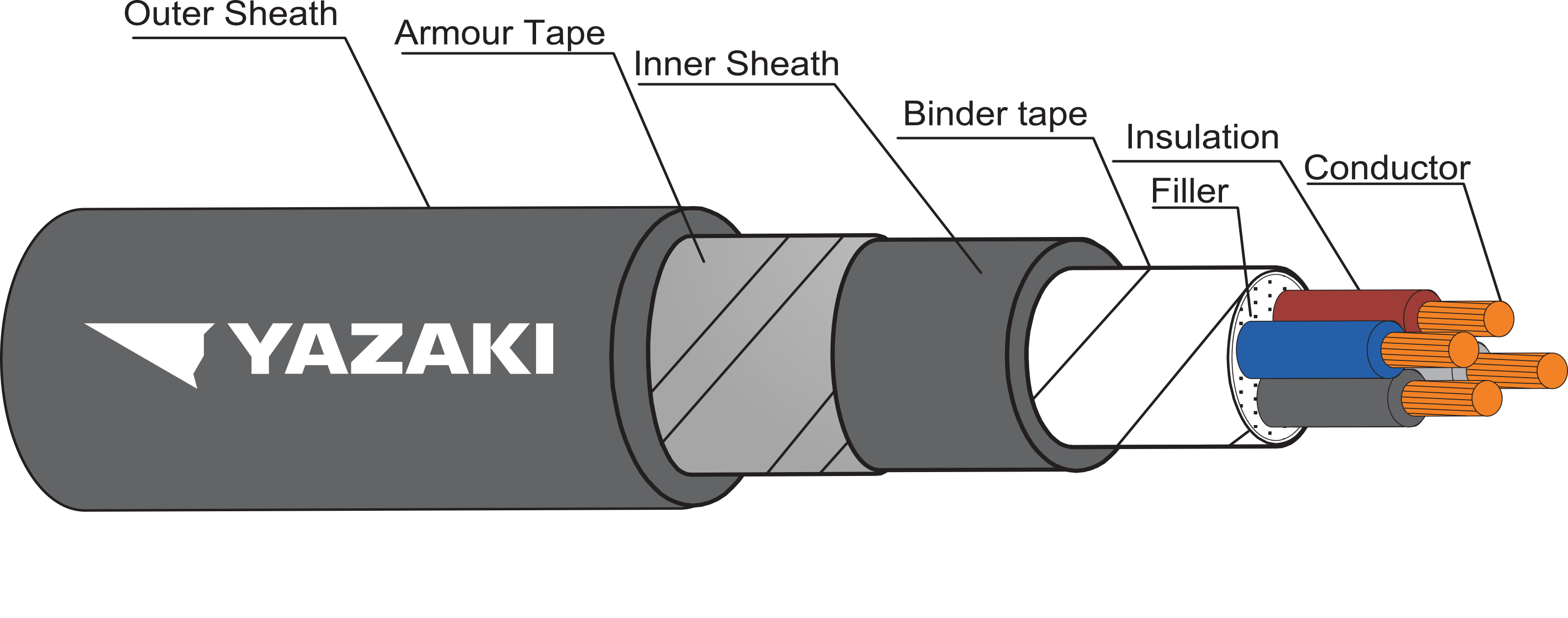

FD-0.6/1 KV-CV-STA

0.6/1 KV 90°C CROSS-LINKED POLYETHYLENE INSULATED PVC SHEATHED STEEL TAPE ARMOUR FLAME RETARDANT POWER CABLE

DOWNLOAD FILE

CONDUCTOR

Non-compacted and compacted round annealed copper

INSULATION

Cross-linked Polyethylene (XLPE)

CORE IDENTIFICATION

2 Core : Blue and Brown

3 Core : Brown, Black and Grey

4 Core : Blue, Brown, Black and Grey

Other colors are available on customer request

INNER SHEATH

Black polyvinyl chloride (PVC)

ARMOUR

Two Galvanized flat Steel Tape

OUTER SHEATH

Black Flame retardant polyvinyl chloride (PVC/ST2)

CLASSIFICATION

Maximum conductor temperature 90°C

Circuit voltage not exceeding 1,200 Volts

RATED VOLTAGE

Maximum conductor temperature 90°C

Circuit voltage not exceeding 1,200 Volts

TESTING VOLTAGE

3,500 Volts

REFERENCE STANDARD

IEC 60502-1, IEC 60228, IEC 60332-1,

IEC 60332-3-24 (Cat.C)

APPLICATION

For installation exposed or in raceway, wet or dry location, or direct burial in ground

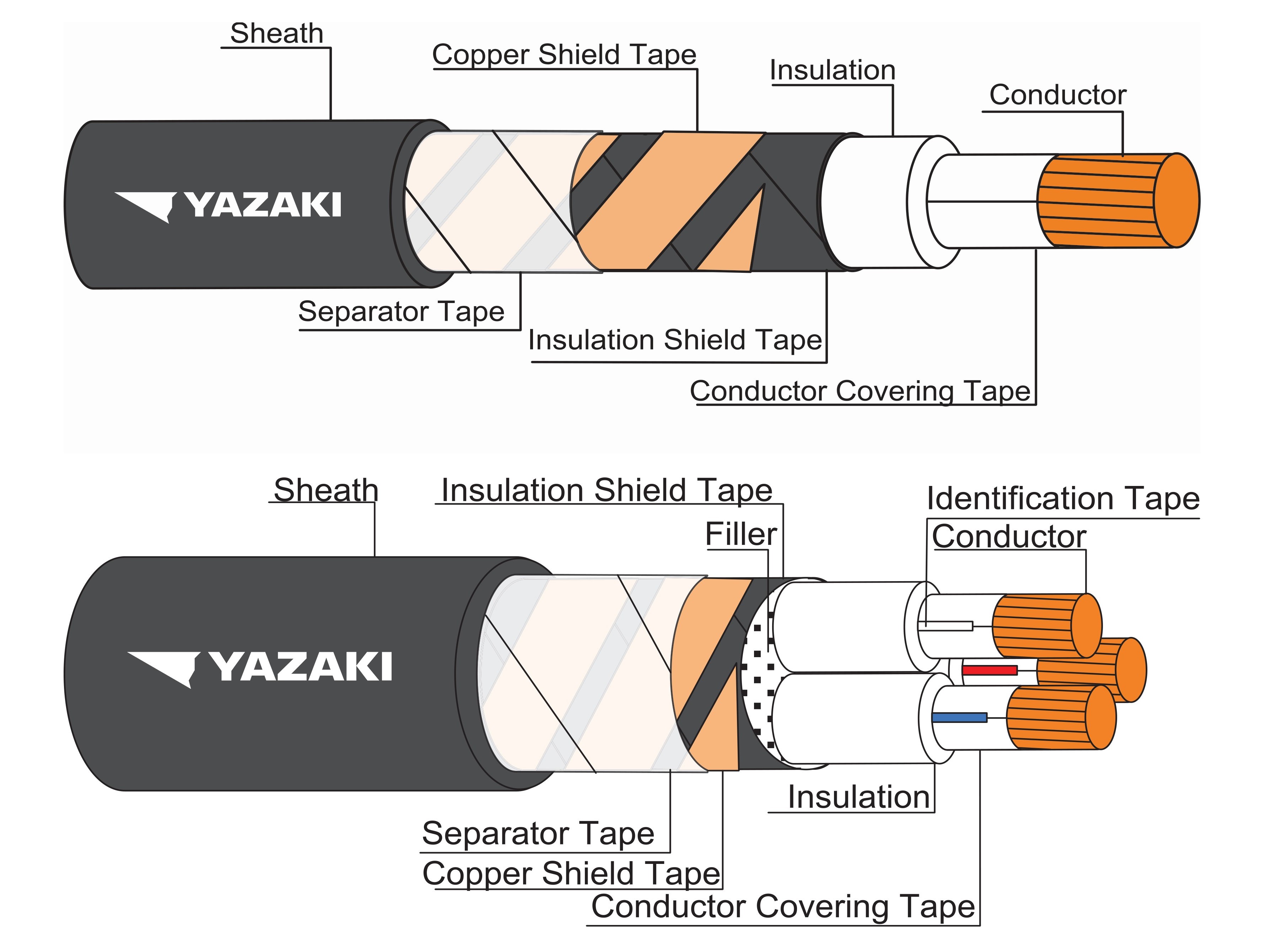

1.8/3 KV-CV

1.8/3 (3.6) kV 90°C CROSS-LINKED POLYETHYLENE INSULATED PVCSHEATHED POWER CABLE

DOWNLOAD FILE

CONDUCTOR

Compacted round stranded annealed copper

INSULATION

Cross-Linked polyethylene (XLPE)

INSULATION SHIELD

Semi-conductive tape

CORE IDENTIFICATION

Single-core : Natural (Translucent)

3 core : White, Red and Blue

SHIELD

Copper tape

OUTER SHEATH

Black polyvinyl chloride (PVC/ST2)

CLASSIFICATION

Maximum conductor temperature 90°C

Circuit voltage not exceeding 3,600 Volts

RATED VOLTAGE

1,800 Volts between Line to Earth

3,000 Volts between Line to Line

TESTING VOLTAGE

6,500 Volts

REFERENCE STANDARD

IEC 60502-1, IEC 60228, IEC 60332-1

APPLICATION

For installation exposed or in raceway, wet or dry location, or direct burial in ground

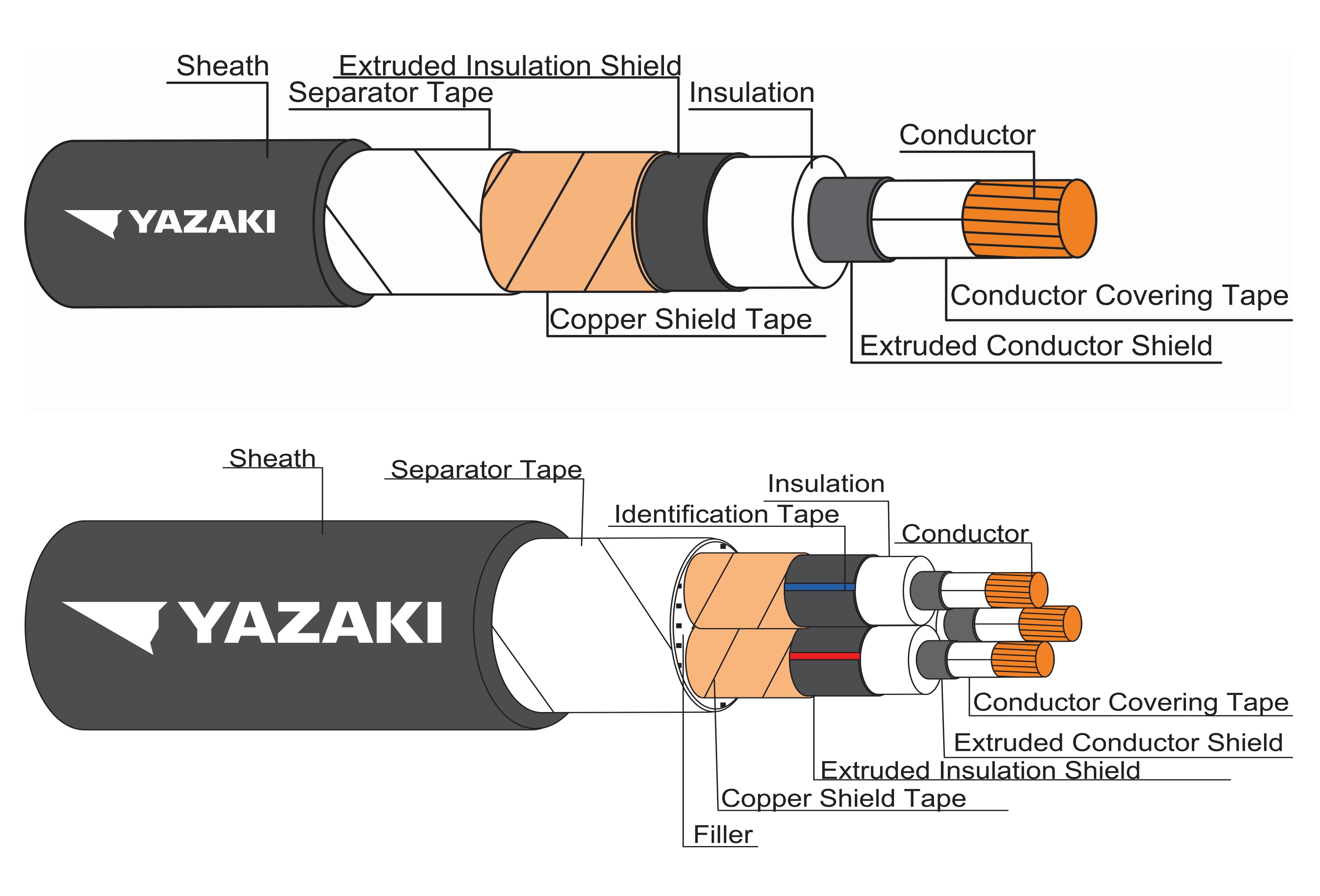

3.6/6 KV-CV

3.6/6 (7.2) kV 90°C CROSS-LINKED POLYETHYLENE INSULATED ANDPVC SHEATHED POWER CABLE

DOWNLOAD FILE

CONDUCTOR

Compacted round stranded annealed copper

INSULATION

Cross-Linked polyethylene (XLPE)

INSULATION SHIELD

Semi-conductive Cross-linked polyethylene compound

CORE IDENTIFICATION

Single-core : Natural (Translucent)

3 core : White, Red and Blue

SHIELD

Copper tape

OUTER SHEATH

Black polyvinyl chloride (PVC/ST2)

CLASSIFICATION

Maximum conductor temperature 90°C

Circuit voltage not exceeding 7,200 Volts

RATED VOLTAGE

3,600 Volts between Line to Earth

6,000 Volts between Line to Line

TESTING VOLTAGE

12,500 Volts

REFERENCE STANDARD

IEC 60502-1, IEC 60228, IEC 60332-1

APPLICATION

For installation exposed or in raceway, wet or dry location, or direct burial in ground

6/10 KV-CV

6/10 (12) kV 90°C CROSS-LINKED POLYETHYLENE INSULATED AND PVC SHEATHED POWER CABLE

DOWNLOAD FILE

CONDUCTOR

Compacted round stranded annealed copper

INSULATION

Cross-Linked polyethylene (XLPE)

INSULATION SHIELD

Semi-conductive Cross-linked polyethylene compound

CORE IDENTIFICATION

Single-core : Natural (Translucent)

3 core : White, Red and Blue

SHIELD

Copper tape

OUTER SHEATH

Black polyvinyl chloride (PVC/ST2)

CLASSIFICATION

Maximum conductor temperature 90°C

Circuit voltage not exceeding 12,000 Volts

RATED VOLTAGE

6,000 Volts between Line to Earth

10,000 Volts between Line to Line

TESTING VOLTAGE

21,000 Volts

REFERENCE STANDARD

IEC 60502-1, IEC 60228, IEC 60332-1

APPLICATION

For installation exposed or in raceway, wet or dry location, or direct burial in ground

8.7/15KV-CV

8.7/15 (17.5) kV 90°C CROSS-LINKED POLYETHYLENE INSULATED ANDPVC SHEATHED POWER CABLE

DOWNLOAD FILE

CONDUCTOR

Compacted round stranded annealed copper

INSULATION

Cross-Linked polyethylene (XLPE)

INSULATION SHIELD

Semi-conductive Cross-linked polyethylene compound

CORE IDENTIFICATION

Single-core : Natural (Translucent)

3 core : White, Red and Blue

SHIELD

Copper tape

OUTER SHEATH

Black polyvinyl chloride (PVC/ST2)

CLASSIFICATION

Maximum conductor temperature 90°C

Circuit voltage not exceeding 17,500 Volts

RATED VOLTAGE

8,700 Volts between Line to Earth

15,000 Volts between Line to Line

TESTING VOLTAGE

30,500 Volts

REFERENCE STANDARD

IEC 60502-1, IEC 60228, IEC 60332-1

APPLICATION

For installation exposed or in raceway, wet or dry location, or direct burial in ground

12/20 KV-CV

12/20 (24) kV 90°C CROSS-LINKED POLYETHYLENE INSULATED ANDPVC SHEATHED POWER CABLE

DOWNLOAD FILE

CONDUCTOR

Compacted round stranded annealed copper

INSULATION

Cross-Linked polyethylene (XLPE)

INSULATION SHIELD

Semi-conductive Cross-linked polyethylene compound

CORE IDENTIFICATION

Single-core : Natural (Translucent)

3 core : White, Red and Blue

SHIELD

Copper tape

OUTER SHEATH

Black polyvinyl chloride (PVC/ST2)

CLASSIFICATION

Maximum conductor temperature 90°C

Circuit voltage not exceeding 24,000 Volts

RATED VOLTAGE

12,000 Volts between Line to Earth

24,000 Volts between Line to Line

TESTING VOLTAGE

42,000 Volts

REFERENCE STANDARD

IEC 60502-1, IEC 60228, IEC 60332-1

APPLICATION

For installation exposed or in raceway, wet or dry location, or direct burial in ground

18/30 KV-CV

18/30 (36) kV 90°C CROSS-LINKED POLYETHYLENEINSULATED AND PVC SHEATHED POWER CABLE

DOWNLOAD FILE

CONDUCTOR

Compacted round stranded annealed copper

INSULATION

Cross-Linked polyethylene (XLPE)

INSULATION SHIELD

Semi-conductive Cross-linked polyethylene compound

CORE IDENTIFICATION

Single-core : Natural (Translucent)

3 core : White, Red and Blue

SHIELD

Copper tape

OUTER SHEATH

Black polyvinyl chloride (PVC/ST2)

CLASSIFICATION

Maximum conductor temperature 90°C

Circuit voltage not exceeding 36,000 Volts

RATED VOLTAGE

18,000 Volts between Line to Earth

30,000 Volts between Line to Line

TESTING VOLTAGE

63,000 Volts

REFERENCE STANDARD

IEC 60502-1, IEC 60228, IEC 60332-1

APPLICATION

For installation exposed or in raceway, wet or dry location, or direct burial in ground

69 KV-CE

69 kV 90°C CROSS-LINKED POLYETHYLENE INSULATED WITH COPPER WIRE SCREEN AND POLYETHYLENE JACKETED POWER CABLE

DOWNLOAD FILE

CONDUCTOR

Compact round stranded annealed copper

CONDUCTOR SHIELD

Semi conductive tape with extruded Semi-conductive cross-linked polyethylene compound

INSULATION

Cross-Linked polyethylene (XLPE)

INSULATION SHIELD

Semi-conductive tape cross-Linked polyethylene compound

WATER BLOCKING TAPE

Semi-conductive water blocking tape

METALLIC SCREEN

Copper wire screen with copper contact tape

SYNTHETIC WATER BLOCKING AND CUSHIONING TAPE

Non-conductive water blocking tape

RADIAL WATER BARRIER

Aluminium laminate tape

OUTER SHEATH

Black Polyethylene (PE/ST7)

CLASSIFICATION

Maximum conductor temperature 90°C

TESTING VOLTAGE

90,000 Volts

REFERENCE STANDARD

TIS 2202, TIS 2427 (IEC 60840, IEC 60228)

APPLICATION

For installation exposed or in raceway, wet or dry location, or direct burial in ground

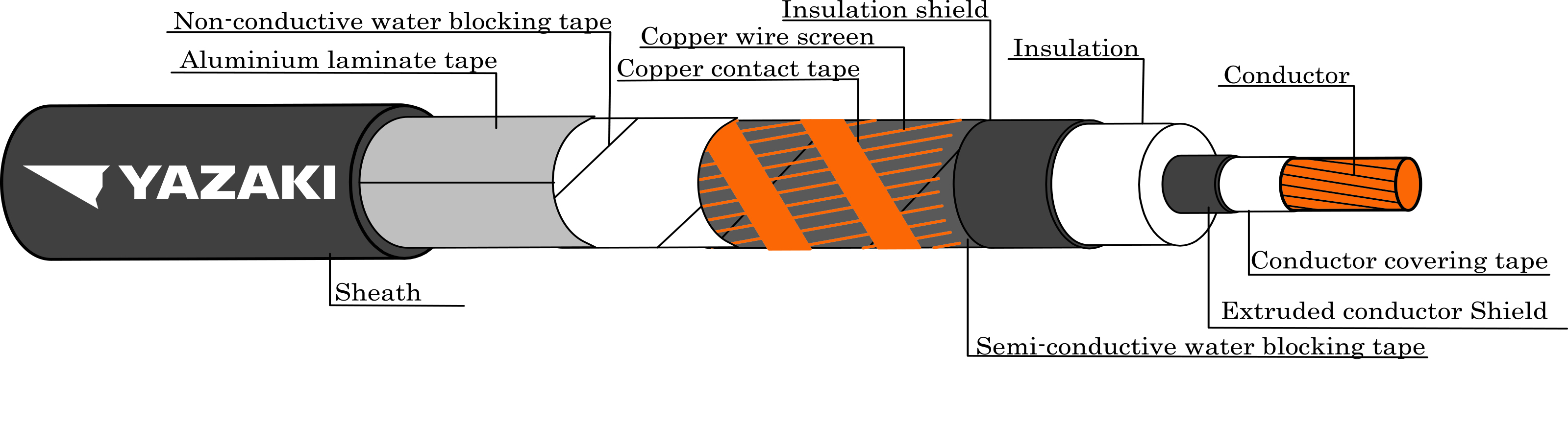

115 KV-CE

115 kV 90°C CROSS-LINKED POLYETHYLENE INSULATED WITH COPPER WIRE SCREEN AND POLYETHYLENE JACKETED POWER CABLE

DOWNLOAD FILE

CONDUCTOR

Compact round stranded annealed copper

CONDUCTOR SHIELD

Semi conductive tape with extruded Semi-conductive cross-linked polyethylene compound

INSULATION

Cross-Linked polyethylene (XLPE)

INSULATION SHIELD

Semi-conductive tape cross-Linked polyethylene compound

WATER BLOCKING TAPE

Semi-conductive water blocking tape

METALLIC SCREEN

Copper wire screen with copper contact tape

SYNTHETIC WATER BLOCKING AND CUSHIONING TAPE

Non-conductive water blocking tape

RADIAL WATER BARRIER

Aluminium laminate tape

OUTER SHEATH

Black Polyethylene (PE/ST7)

CLASSIFICATION

Maximum conductor temperature 90°C

TESTING VOLTAGE

160,000 Volts

REFERENCE STANDARD

TIS 2202, TIS 2427 (IEC 60840, IEC 60228)

APPLICATION

For installation exposed or in raceway, wet or dry location, or direct burial in ground

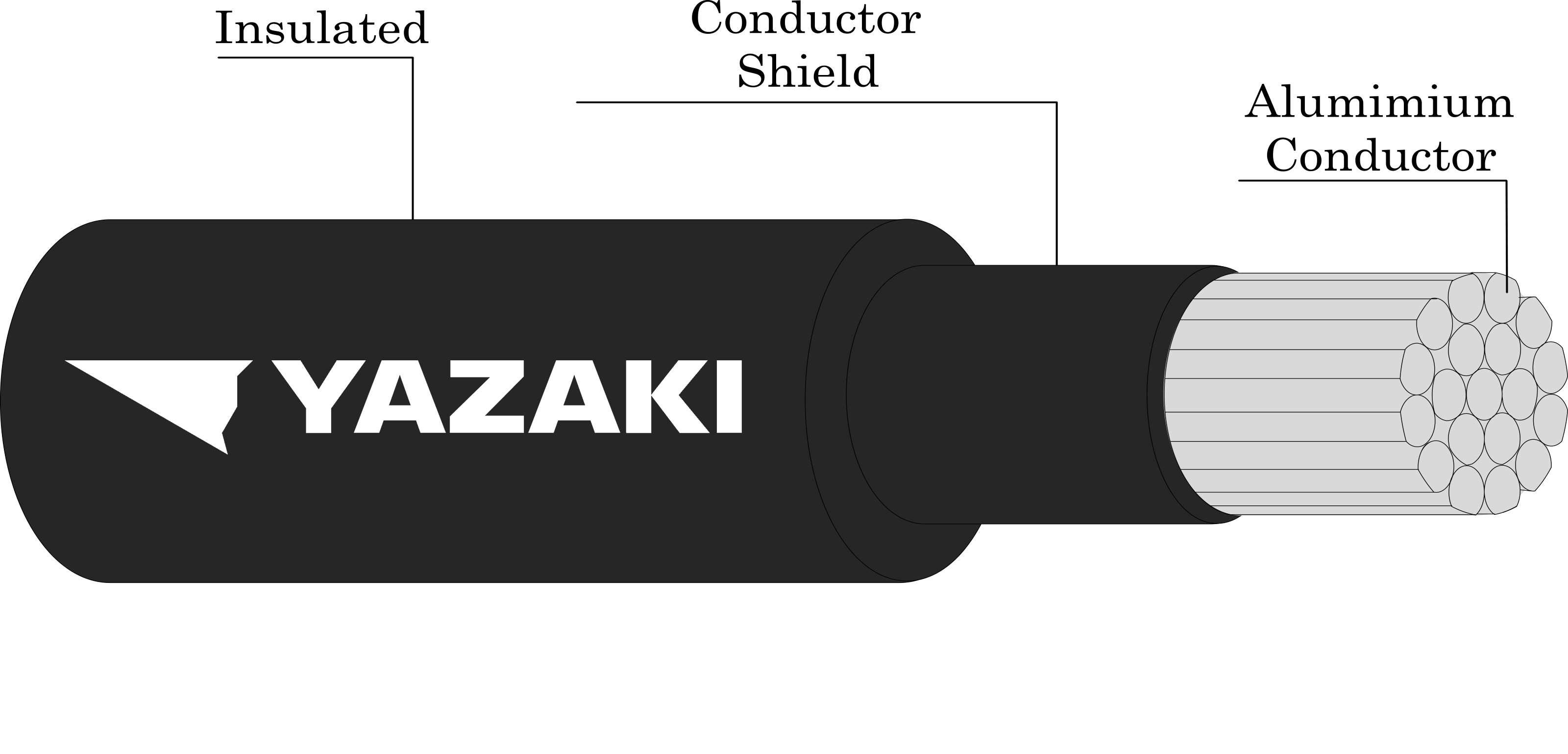

24 KV-OC

24 KV CROSS-LINKED POLYETHYLENE PARTIAL INSULATED ALLALUMINIUM CABLE

DOWNLOAD FILE

CONDUCTOR

Compacted round stranded hard drawn aluminium wires

CONDUCTOR SCREEN

Semi-Conductive Cross-linked polyethylene (XLPE) compound

INSULATION

Black Cross-Linked polyethylene (XLPE)

CLASSIFICATION

Maximum conductor temperature 90°C

Circuit voltage not exceeding 24,000 Volts

TESTING VOLTAGE

11,000 Volts

REFERENCE STANDARD

ICEA S-66-524, ICEA S-93-639

APPLICATION

For Aerial power transmission and distribution line

33 KV-OC

33 KV CROSS-LINKED POLYETHYLENE PARTIAL INSULATED ALLALUMINIUM CABLE

DOWNLOAD FILE

CONDUCTOR

Compacted round stranded hard drawn aluminuim wire

CONDUCTOR SCREEN

Semi-Conductive Cross-linked polyethylene (XLPE) compound

INSULATION

Black Cross-Linked polyethylene (XLPE)

CLASSIFICATION

Maximum conductor temperature 90°C

Circuit voltage not exceeding 33,000 Volts

TESTING VOLTAGE

17,000 Volts

REFERENCE STANDARD

ICEA S-66-524, ICEA S-93-639

APPLICATION

For Aerial power transmission and distribution line

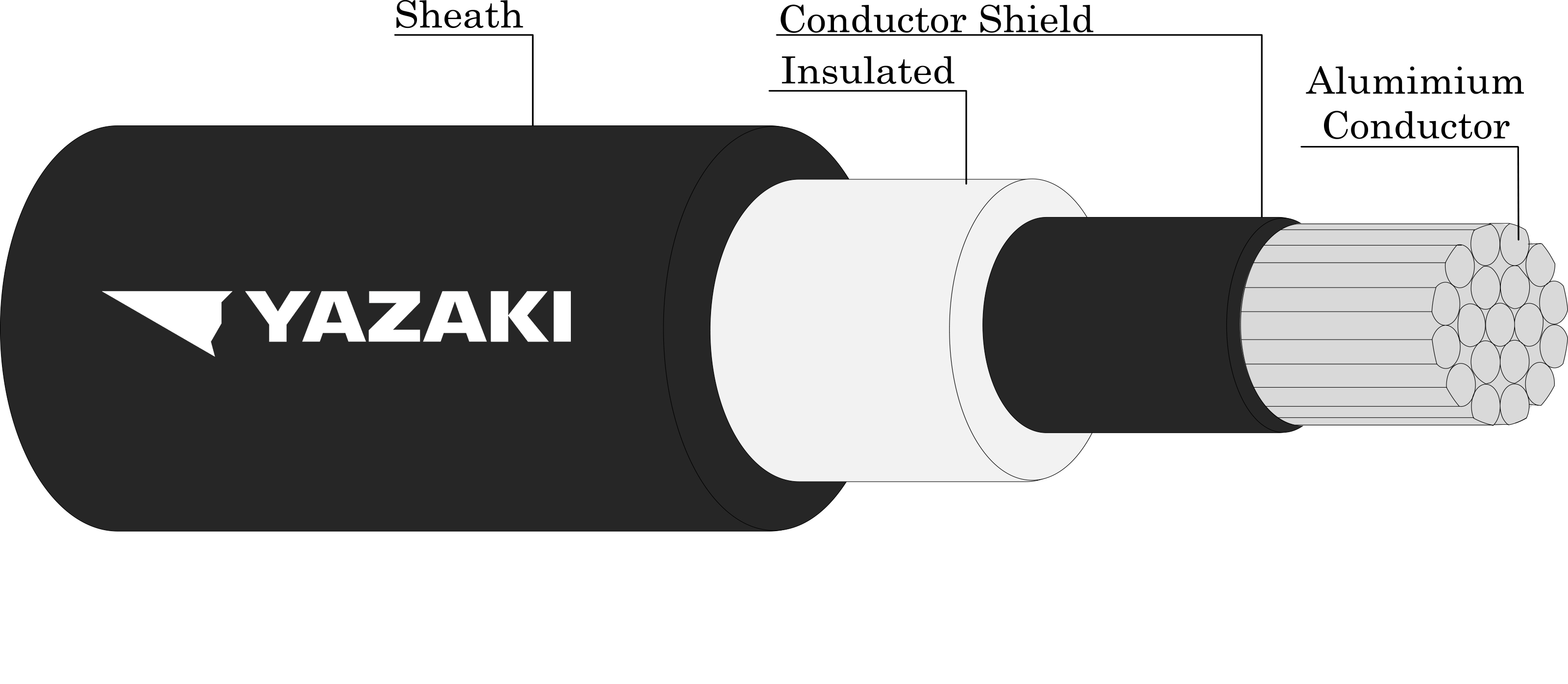

15KV-CC

15 KV ALL ALUMINIUM CONDUCTOR SPACED AERIAL CABLE

DOWNLOAD FILE

CONDUCTOR

Compacted round stranded hard drawn aluminuim wire

CONDUCTOR SCREEN

Semi-Conductive Cross-linked polyethylene (XLPE) compound

INSULATION

Cross-Linked polyethylene (XLPE)

OUTER SHEATH

Black Cross-Linked polyethylene (XLPE)

CLASSIFICATION

Maximum conductor temperature 90°C

Circuit voltage not exceeding 15,000 Volts

TESTING VOLTAGE

27,000 Volts

REFERENCE STANDARD

ICEA S-66-524, ICEA S-93-639

APPLICATION

For Aerial power transmission and distribution line

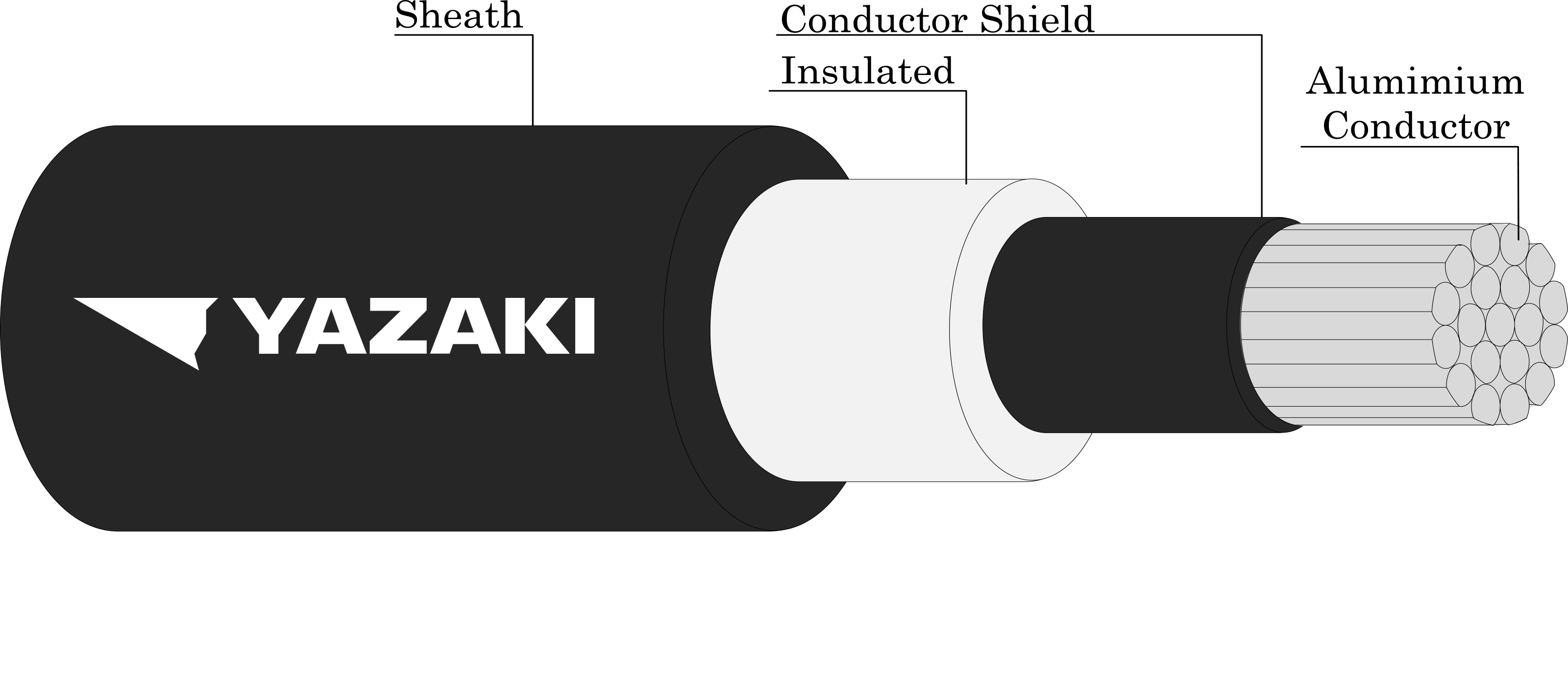

25 KV-CC

25 KV ALL ALUMINIUM CONDUCTOR SPACED AERIAL CABLE

DOWNLOAD FILE

CONDUCTOR

Compacted round stranded hard drawn aluminuim wire

CONDUCTOR SCREEN

Semi-Conductive Cross-linked polyethylene (XLPE) compound

INSULATION

Cross-Linked polyethylene (XLPE)

OUTER SHEATH

Black Cross-Linked polyethylene (XLPE)

CLASSIFICATION

Maximum conductor temperature 90°C

Circuit voltage not exceeding 25,000 Volts

TESTING VOLTAGE

38,000 Volts

REFERENCE STANDARD

ICEA S-66-524, ICEA S-93-639

APPLICATION

For Aerial power transmission and distribution line

35 KV-CC

35 KV ALL ALUMINIUM CONDUCTOR SPACED AERIAL CABLE

DOWNLOAD FILE

CONDUCTOR

Compacted round stranded hard drawn aluminuim wire

CONDUCTOR SCREEN

Semi-Conductive Cross-linked polyethylene (XLPE) compound

INSULATION

Cross-Linked polyethylene (XLPE)

OUTER SHEATH

Black Cross-Linked polyethylene (XLPE)

CLASSIFICATION

Maximum conductor temperature 90°C

Circuit voltage not exceeding 35,000 Volts

TESTING VOLTAGE

49,000 Volts

REFERENCE STANDARD

ICEA S-66-524, ICEA S-93-639

APPLICATION

For Aerial power transmission and distribution line

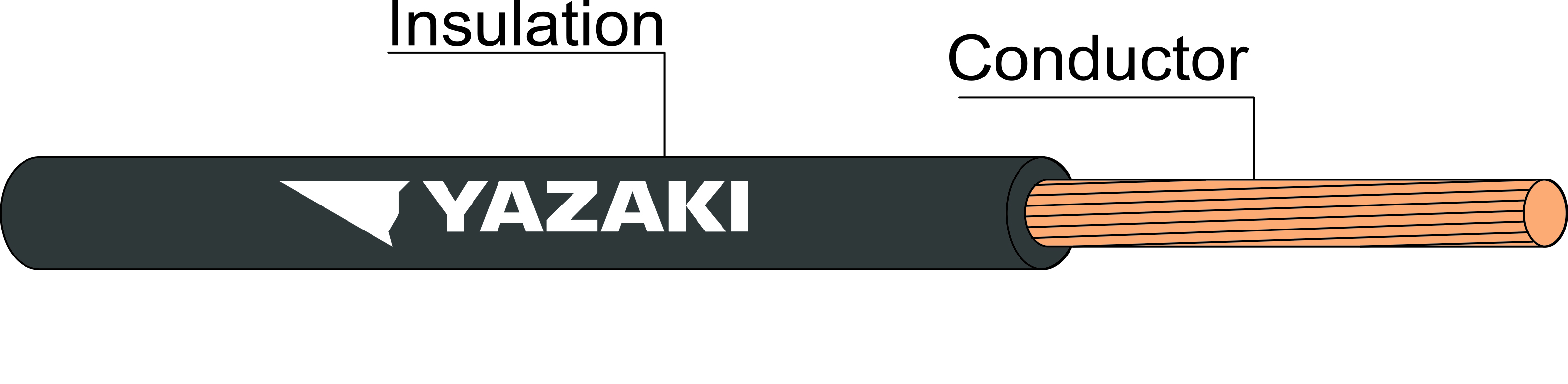

0.6/1KV-FRLH-IE

600/1000 V 90°C CROSS-LINKED POLYETHYLENE INSULATED FLAME RETARDANT WITH LOW SMOKE AND ZERO HALOGEN POWER CABLE

DOWNLOAD FILE

CONDUCTOR

Non-Compacted and compacted round annealed copper

INSULATION

Flame retardant Low smoke and halogen free Cross-linked polyethylene (LSHF-XLPE:EI5)

CORE IDENTIFICATION

Single-Cores: Black or Orange

CLASSIFICATION

Maximum conductor temperature 90°C

Circuit voltage not exceeding 1,200 Volts

RATED VOLTAGE

600 Volts between Line to Earth

1,000 Volts between Line to Line

TESTING VOLTAGE

3,500 V

REFERENCE STANDARD

Construction : BS EN 50525-3-41

Flame retardant : BS EN 60332-1-2

BS EN IEC 60332-3-22 Category A

BS EN IEC 60332-3-23 Category B

BS EN IEC 60332-3-24 Category C

Acid gas emission : BS EN 60754-1, BS EN 60754-2

Smoke emission : BS EN 61034-2

Non-toxic gases : Defence standard 02-713

APPLICATION

For Fixed installation in electrical cabinet, conduit and wireway which provide flame retardant, low smoked and non toxic emission under fire

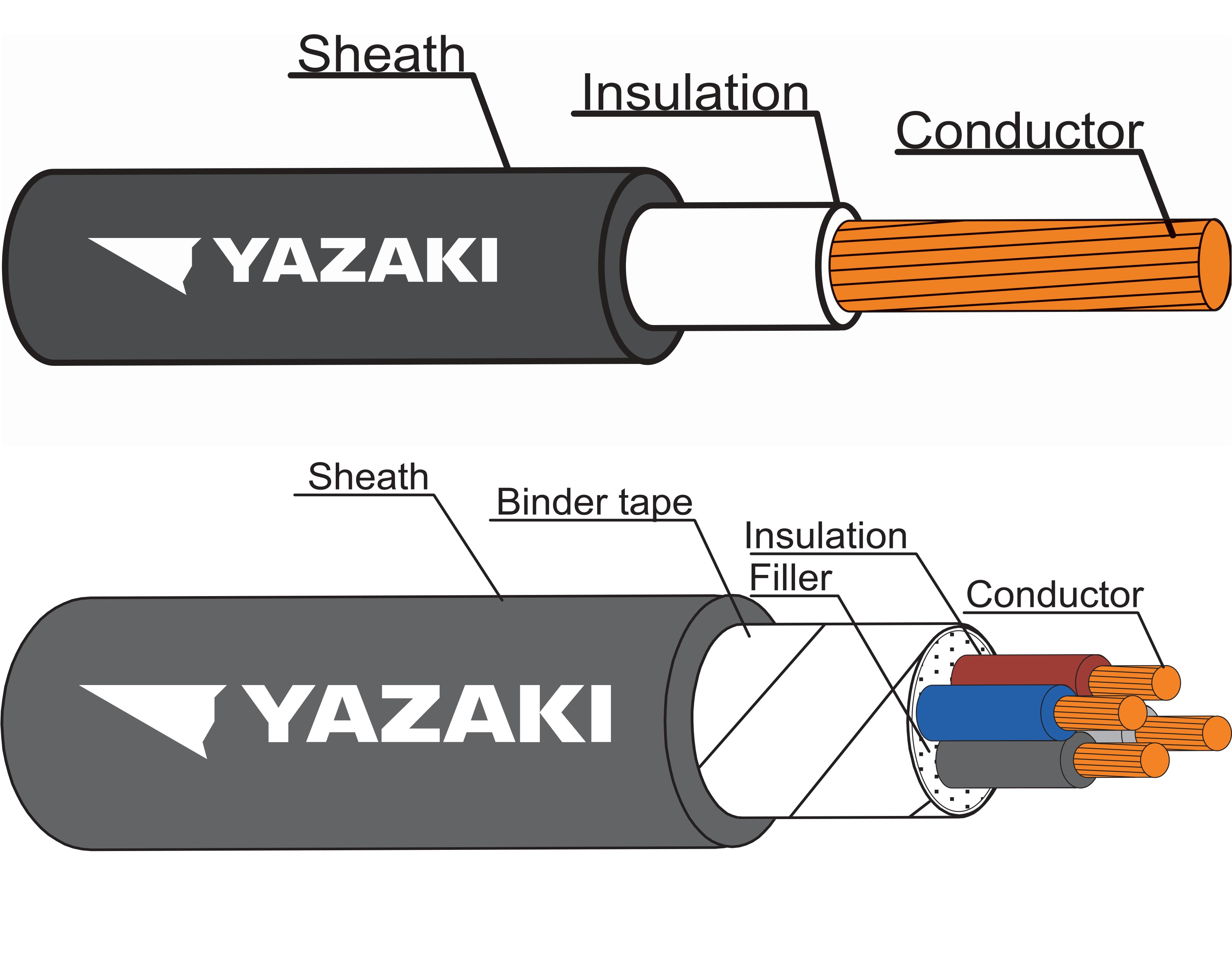

FDLH-0.6/1KV-CE

0.6/1kV 90°C CROSS-LINKED POLYETHYLENE INSULATED POLYOLEFIN SHEATHED FLAME RETARDANT WITH LOW SMOKE AND ZERO HALOGEN POWER CABLE

DOWNLOAD FILE

CONDUCTOR

Non-Compacted and compacted round annealed coppe

INSULATION

Cross-Linked polyethylene(XLPE)

CORE IDENTIFICATION

Single-core : Natural (Translucent)

2 Core : Blue and Brown

3 Core : Brown, Black and Grey

4 Core : Blue, Brown, Black and Grey

OUTER SHEATH

Black Low smoke and zero halogen flame retardant polyolefin (ST8)

CLASSIFICATION

Maximum conductor temperature 90°C

Circuit voltage not exceeding 1,200 Volts

RATED VOLTAGE

600 Volts between Line to Earth

1,000 Volts between Line to Line

TESTING VOLTAGE

3,500 V

REFERENCE STANDARD

Construction : IEC 60502-1

Flame retardant : BS EN 60332-1-2

BS EN IEC 60332-3-22 Category A

BS EN IEC 60332-3-23 Category B

BS EN IEC 60332-3-24 Category C

Acid gas emission : BS EN 60754-1, BS EN 60754-2

Smoke emission : BS EN 61034-2

Non-toxic gases : Defence standard 02-713

APPLICATION

For Fixed installation in electrical cabinet, conduit and wireway which provide flame retardant, low smoked and non toxic emission under fire

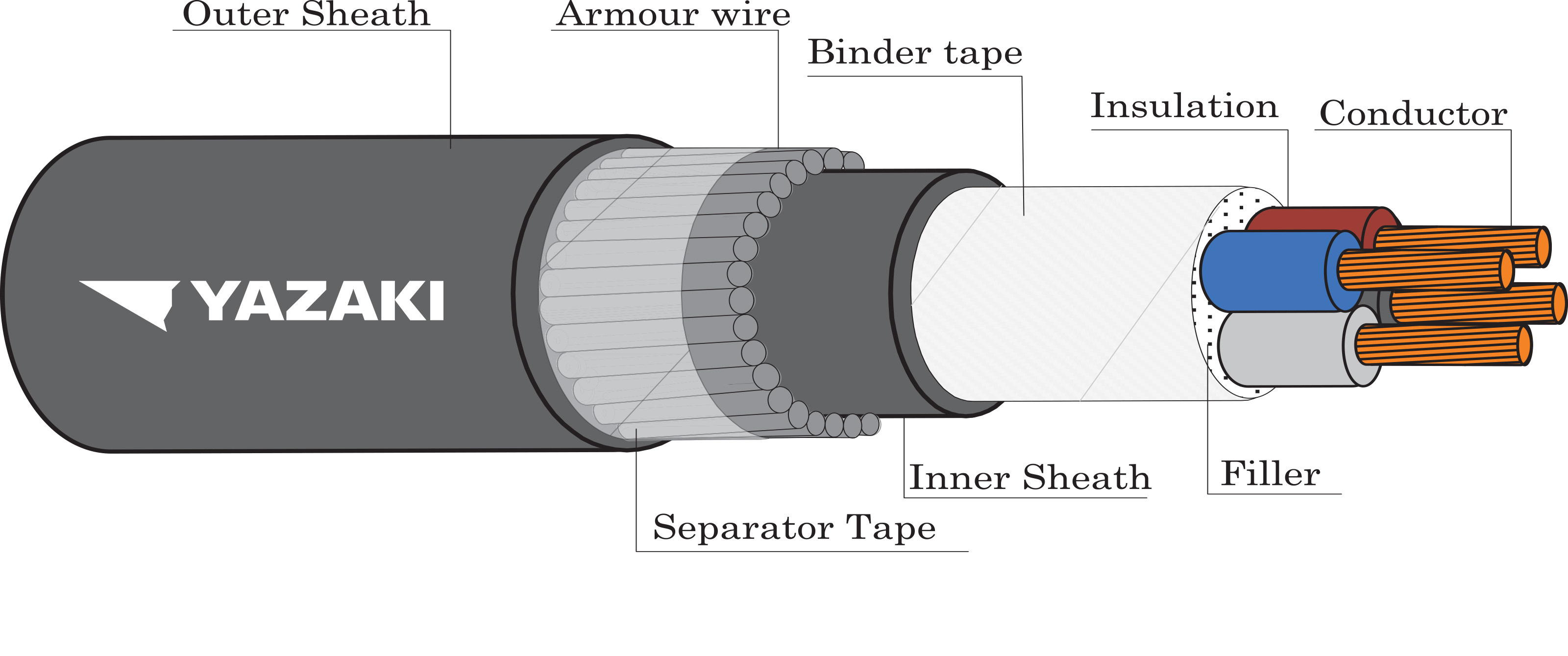

FDLH-0.6/1KV-CE-SWA

0.6/1kV 90°C ALUMINIUM CONDUCTOR CROSS-LINKED POLYETHYLENE INSULATED PVC SHEATHED, WITH GALVANIZED STEEL WIRE ARMORED FLAME RETARDANT POWER CABLE

DOWNLOAD FILE

CONDUCTOR

Non-Compacted and compacted round annealed copper

INSULATION

Cross-Linked polyethylene(XLPE)

CORE IDENTIFICATION

2 Core : Blue and Brown

3 Core : Brown, Black and Grey

4 Core : Blue, Brown, Black and Grey

INNER SHEATH

Black Low smoke and zero halogen flame retardant polyolefin (ST8)

ARMOUR

Galvanized Steel Wires

OUTER SHEATH

Black Low smoke and zero halogen flame retardant polyolefin (ST8)

CLASSIFICATION

Maximum conductor temperature 90°C

Circuit voltage not exceeding 1,200 Volts

RATED VOLTAGE

600 Volts between Line to Earth

1,000 Volts between Line to Line

TESTING VOLTAGE

3,500 V

REFERENCE STANDARD

Construction : IEC 60502-1, BS 6724

Flame retardant : BS EN 60332-1-2

BS EN IEC 60332-3-22 Category A

BS EN IEC 60332-3-23 Category B

BS EN IEC 60332-3-24 Category C

Acid gas emission : BS EN 60754-1, BS EN 60754-2

Smoke emission : BS EN 61034-2

Non-toxic gases : Defence standard 02-713

APPLICATION

For Fixed installation in electrical cabinet, conduit and wireway which provide flame retardant, low smoked and non toxic emission under fire

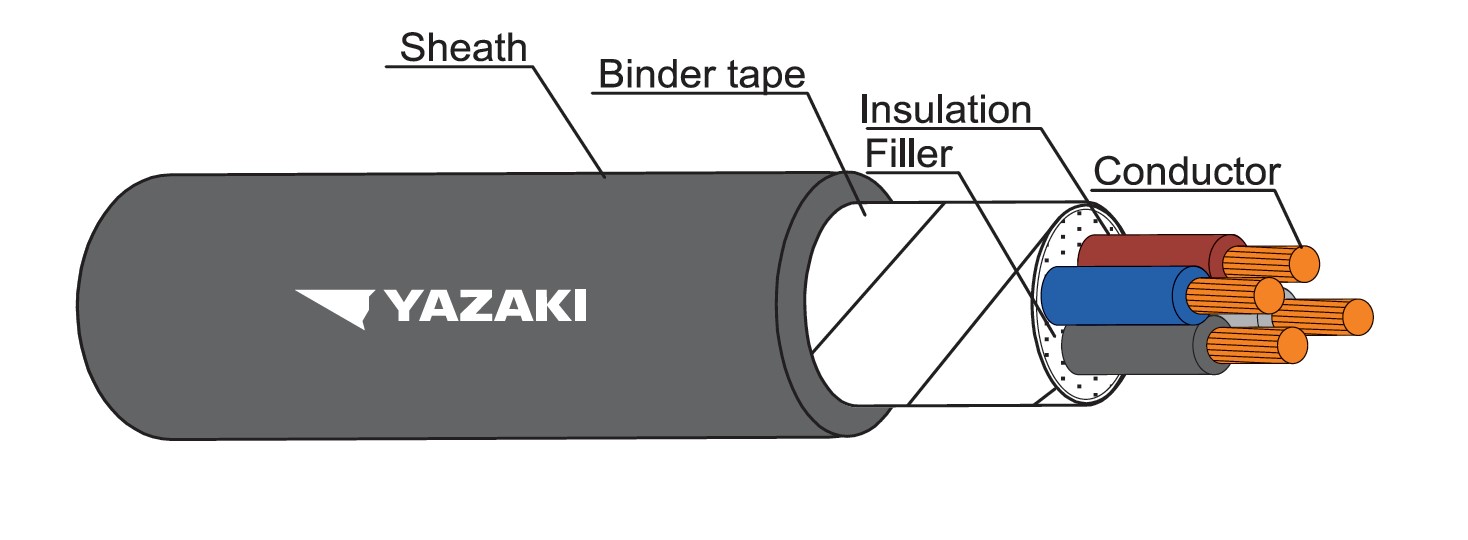

FDLH-0.6/1KV-CCE

0.6/1kV 90°C CROSS-LINKED POLYETHYLENE INSULATED POLYOLEFIN SHEATHED FLAME RETARDANT WITH LOW SMOKE AND ZERO HALOGEN CONTROL CABLE

DOWNLOAD FILE

CONDUCTOR

Stranded annealed copper

INSULATION

Cross-Linked polyethylene(XLPE)

CORE IDENTIFICATION

2 Cores : Blue and Brown

3 Cores : Brown, Black and Grey

4 Cores : Blue, Brown, Black and Grey

More than 4 Cores : Black with marking numbers, colored white, printed continuously throungout the whole length of insulated wires for the propose of core indentification.

OUTER SHEATH

Black Low smoke and zero halogen flame retardant polyolefin (ST8)

CLASSIFICATION

Maximum conductor temperature 90°C

Circuit voltage not exceeding 1,200 Volts

RATED VOLTAGE

600 Volts between Line to Earth

1,000 Volts between Line to Line

TESTING VOLTAGE

3,500 V

REFERENCE STANDARD

Construction : IEC 60502-1

Flame retardant : BS EN 60332-1-2

BS EN IEC 60332-3-22 Category A

BS EN IEC 60332-3-23 Category B

BS EN IEC 60332-3-24 Category C

Acid gas emission : BS EN 60754-1, BS EN 60754-2

Smoke emission : BS EN 61034-2

Non-toxic gases : Defence standard 02-713

APPLICATION

For Fixed installation in electrical cabinet, conduit and wireway which provide flame retardant, low smoked and non toxic emission under fire

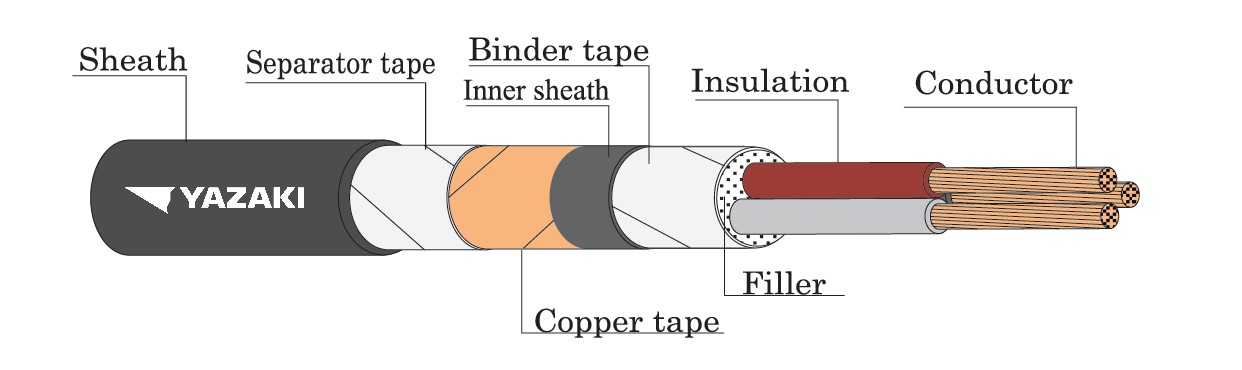

FDLH-0.6/1KV-CCE-S

0.6/1kV 90°C CROSS-LINKED POLYETHYLENE INSULATED POLYOLEFIN SHEATHED FLAME RETARDANT WITH LOW SMOKE AND ZERO HALOGEN SHIELED CONTROL CABLE

DOWNLOAD FILE

CONDUCTOR

Stranded annealed copper

INSULATION

Cross-Linked polyethylene(XLPE)

CORE IDENTIFICATION

2 Cores : Blue and Brown

3 Cores : Brown, Black and Grey

4 Cores : Blue, Brown, Black and Grey

More than 4 Cores : Black with marking numbers, colored white, printed continuously throungout the whole length of insulated wires for the propose of core indentification.

INNER SHEATH

Black Low smoke and zero halogen flame retardant polyolefin (ST8)

SHIELD

Copper tape

OUTER SHEATH

Black Low smoke and zero halogen flame retardant polyolefin (ST8)

CLASSIFICATION

Maximum conductor temperature 90°C

Circuit voltage not exceeding 1,200 Volts

RATED VOLTAGE

600 Volts between Line to Earth

1,000 Volts between Line to Line

TESTING VOLTAGE

3,500 V

REFERENCE STANDARD

Construction : IEC 60502-1, BS 6724

Flame retardant : BS EN 60332-1-2

BS EN IEC 60332-3-22 Category A

BS EN IEC 60332-3-23 Category B

BS EN IEC 60332-3-24 Category C

Acid gas emission : BS EN 60754-1, BS EN 60754-2

Smoke emission : BS EN 61034-2

Non-toxic gases : Defence standard 02-713

APPLICATION

For Fixed installation in electrical cabinet, conduit and wireway which provide flame retardant, low smoked and non toxic emission under fire

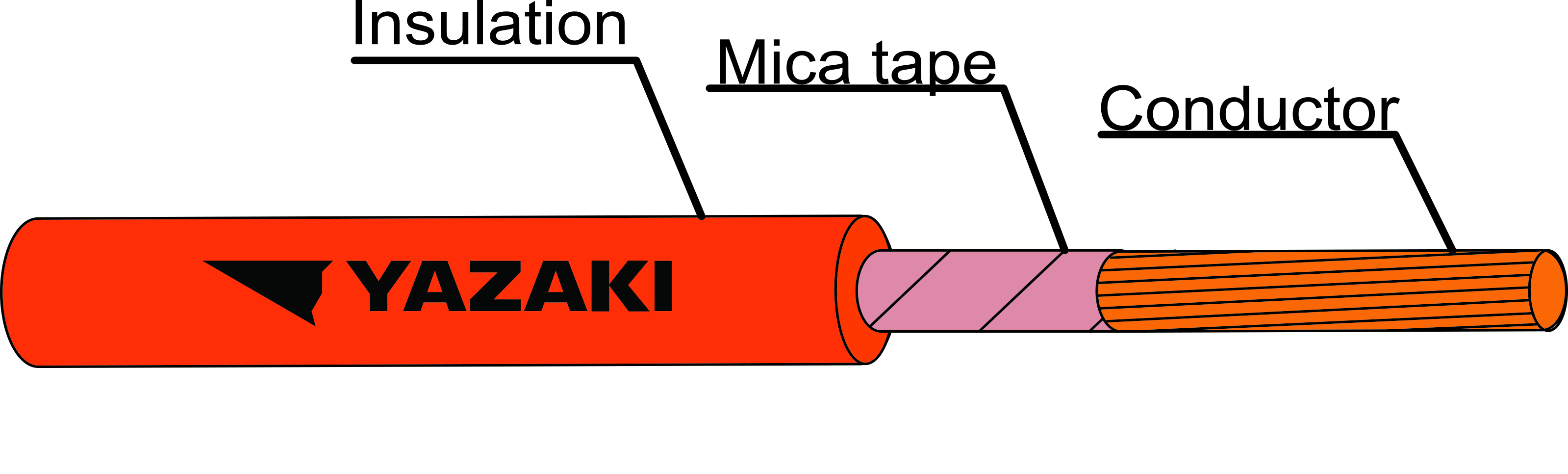

FS/LH-0.6/1KV-XLPE (C)

600/1000V 90°C MICA TAPE CROSS-LINKED POLYETHYLENE INSULATED FLAME RETARDANT WITH LOW SMOKE AND ZERO HALOGEN POWER CABLE

DOWNLOAD FILE

CONDUCTOR

Non-Compacted and compacted round annealed copper

FIRE BARRIER TAPE

Mica tape

INSULATION

Flame retardant Low smoke and halogen free Cross-linked polyethylene (LSHF-XLPE:EI5)

CORE IDENTIFICATION

Single-core : Orange

CLASSIFICATION

Maximum conductor temperature 90°C

Circuit voltage not exceeding 1,200 Volts

RATED VOLTAGE

600 Volts between Line to Earth

1,000 Volts between Line to Line

TESTING VOLTAGE

3,500 V

REFERENCE STANDARD

Construction : BS EN 50525-3-41

Circuit integrity : BS 6387 Category C, W, Z

Flame retardant : BS EN 60332-1-2

BS EN IEC 60332-3-22 Category A

BS EN IEC 60332-3-23 Category B

BS EN IEC 60332-3-24 Category C

Acid gas emission : BS EN 60754-1, BS EN 60754-2

Smoke emission : BS EN 61034-2

Non-toxic gases : Defence standard 02-713

APPLICATION

For Fixed installation in electrical cabinet, conduit, trench and tray which provide flame retardant, low smoked and corrosive gases properties and main circuit integrity under fire.

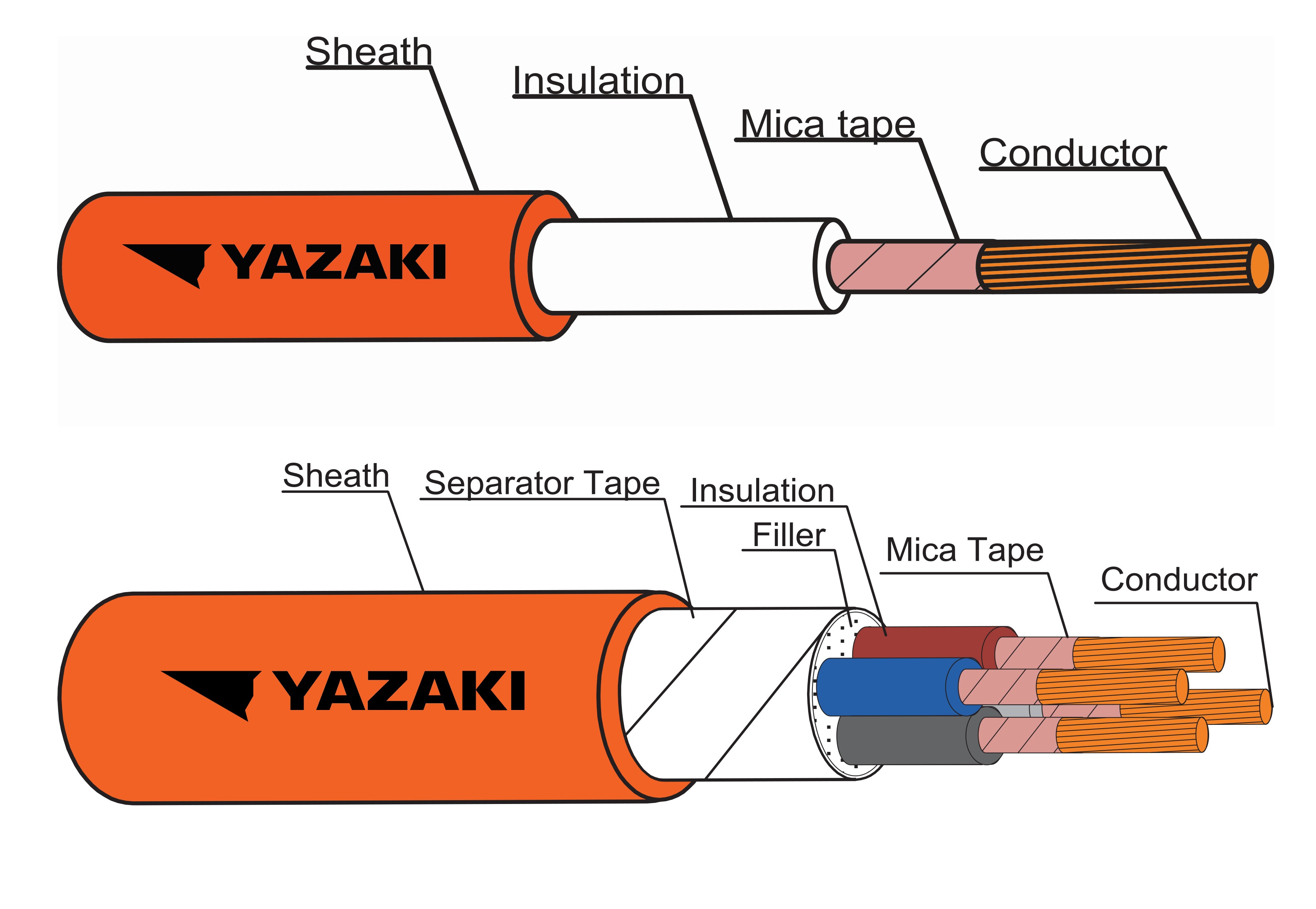

FS-FDLH-0.6/1KV-CE

0.6/1kV 90°C MICA TAPE CROSS-LINKED POLYETHYLENE INSULATED POLYOLEFIN SHEATHED FIRE RESISTANCE FLAME RETARDANT WITH LOW SMOKE AND ZERO HALOGEN POWER CABLE

DOWNLOAD FILE

CONDUCTOR

Non-Compacted and compacted round annealed copper

FIRE BARRIER TAPE

Mica tape

INSULATION

Cross-Linked polyethylene(XLPE)

CORE IDENTIFICATION

Single-core : Natural (Translucent)

2 Core : Blue and Brown

3 Core : Brown, Black and Grey

4 Core : Blue, Brown, Black and Grey

OUTER SHEATH

Orange Low smoke and zero halogen flame retardant polyolefin (ST8)

CLASSIFICATION

Maximum conductor temperature 90°C

Circuit voltage not exceeding 1,200 Volts

RATED VOLTAGE

600 Volts between Line to Earth

1,000 Volts between Line to Line

TESTING VOLTAGE

3,500 V

REFERENCE STANDARD

Construction : IEC 60502-1

Circuit integrity : BS 6387 Category C, W, Z

Flame retardant : BS EN 60332-1-2

BS EN IEC 60332-3-22 Category A

BS EN IEC 60332-3-23 Category B

BS EN IEC 60332-3-24 Category C

Acid gas emission : BS EN 60754-1, BS EN 60754-2

Smoke emission : BS EN 61034-2

Non-toxic gases : Defence standard 02-713

APPLICATION

For Fixed installation in electrical cabinet, conduit, trench and tray which provide flame retardant, low smoked and corrosive gases properties and main circuit integrity under fire.

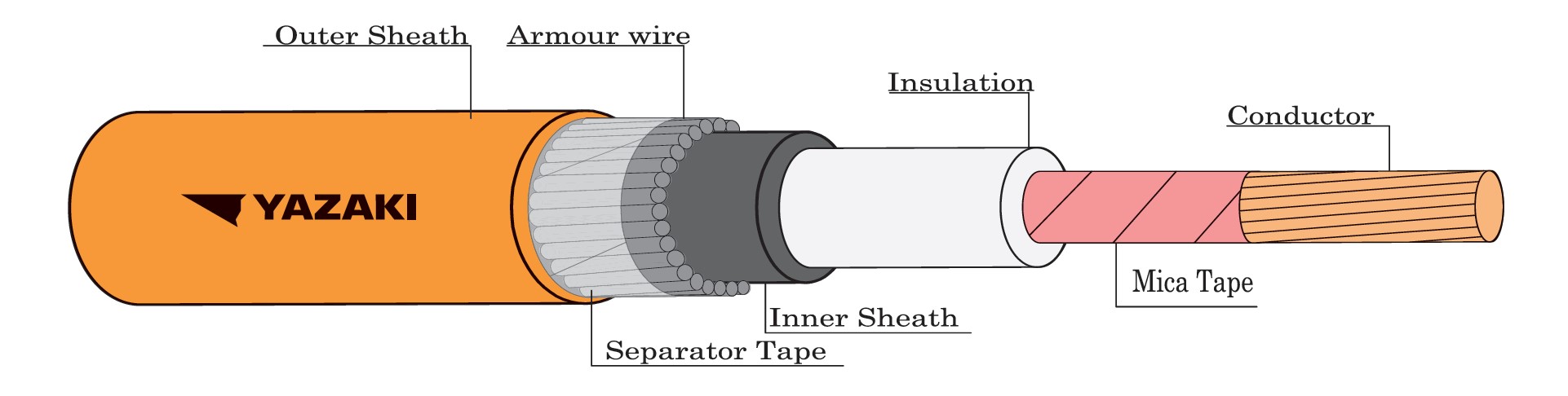

FS/FDLH-0.6/1KV-CE-AWA

0.6/1kV 90°C MICA TAPE CROSS-LINKED POLYETHYLENE INSULATED POLYOLEFIN SHEATHED, WITH ALUMINIUM WIRE ARMORED FLAME RETARDANT, LOW SMOKE AND ZERO HALOGEN POWER CABLE

DOWNLOAD FILE

CONDUCTOR

Non-Compacted and compacted round annealed copper

FIRE BARRIER TAPE

Mica tape

INSULATION

Cross-Linked polyethylene(XLPE)

CORE IDENTIFICATION

Single-core : Natural (Translucent)

INNER SHEATH

Black Low smoke and zero halogen flame retardant polyolefin (ST8)

ARMOUR

Aluminium wires

OUTER SHEATH

Orange Low smoke and zero halogen flame retardant polyolefin (ST8)

CLASSIFICATION

Maximum conductor temperature 90°C

Circuit voltage not exceeding 1,200 Volts

RATED VOLTAGE

600 Volts between Line to Earth

1,000 Volts between Line to Line

TESTING VOLTAGE

3,500 V

REFERENCE STANDARD

Construction : IEC 60502-1

Circuit integrity : BS 6387 Category C, W, Z

Flame retardant : BS EN 60332-1-2

BS EN IEC 60332-3-22 Category A

BS EN IEC 60332-3-23 Category B

BS EN IEC 60332-3-24 Category C

Acid gas emission : BS EN 60754-1, BS EN 60754-2

Smoke emission : BS EN 61034-2

APPLICATION

For Fixed installation in electrical cabinet, conduit, trench and tray which provide flame retardant, low smoked and corrosive gases properties and main circuit integrity under fire.

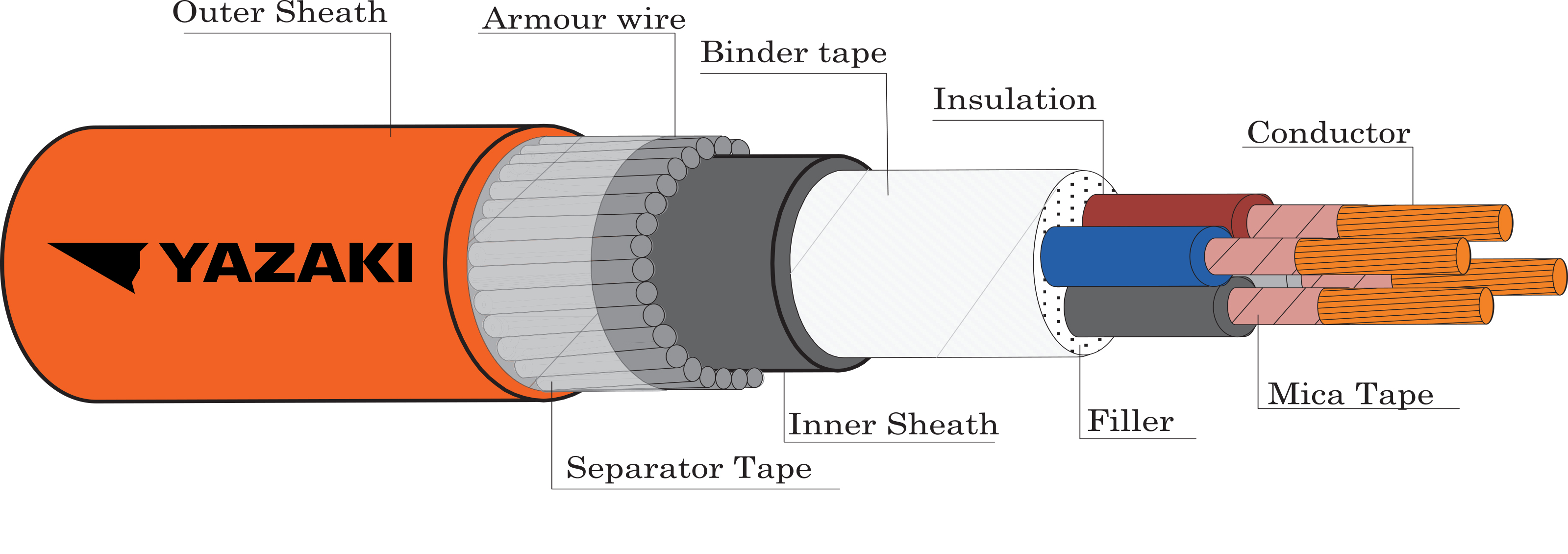

FS/FDLH-0.6/1KV-CE-SWA

0.6/1kV 90°C MICA TAPE CROSS-LINKED POLYETHYLENE INSULATED POLYOLEFIN SHEATHED, WITH GALVANIZED STEEL WIRE ARMORED FLAME RETARDANT, LOW SMOKE AND ZERO HALOGEN POWER CABLE

DOWNLOAD FILE

CONDUCTOR

Non-Compacted and compacted round annealed copper

FIRE BARRIER TAPE

Mica tape

INSULATION

Cross-Linked polyethylene(XLPE)

CORE IDENTIFICATION

2 Core : Blue and Brown

3 Core : Brown, Black and Grey

4 Core : Blue, Brown, Black and Grey

INNER SHEATH

Black Low smoke and zero halogen flame retardant polyolefin (ST8)

ARMOUR

Galvanized Steel Wires

OUTER SHEATH

Orange Low smoke and zero halogen flame retardant polyolefin (ST8)

CLASSIFICATION

Maximum conductor temperature 90°C

Circuit voltage not exceeding 1,200 Volts

RATED VOLTAGE

600 Volts between Line to Earth

1,000 Volts between Line to Line

TESTING VOLTAGE

3,500 V

REFERENCE STANDARD

Construction : IEC 60502-1, BS 7846

Circuit integrity : BS 6387 Category C, W, Z

Flame retardant : BS EN 60332-1-2

BS EN IEC 60332-3-22 Category A

BS EN IEC 60332-3-23 Category B

BS EN IEC 60332-3-24 Category C

Acid gas emission : BS EN 60754-1, BS EN 60754-2

Smoke emission : BS EN 61034-2

APPLICATION

For Fixed installation in electrical cabinet, conduit, trench and tray which provide flame retardant, low smoked and corrosive gases properties and main circuit integrity under fire.

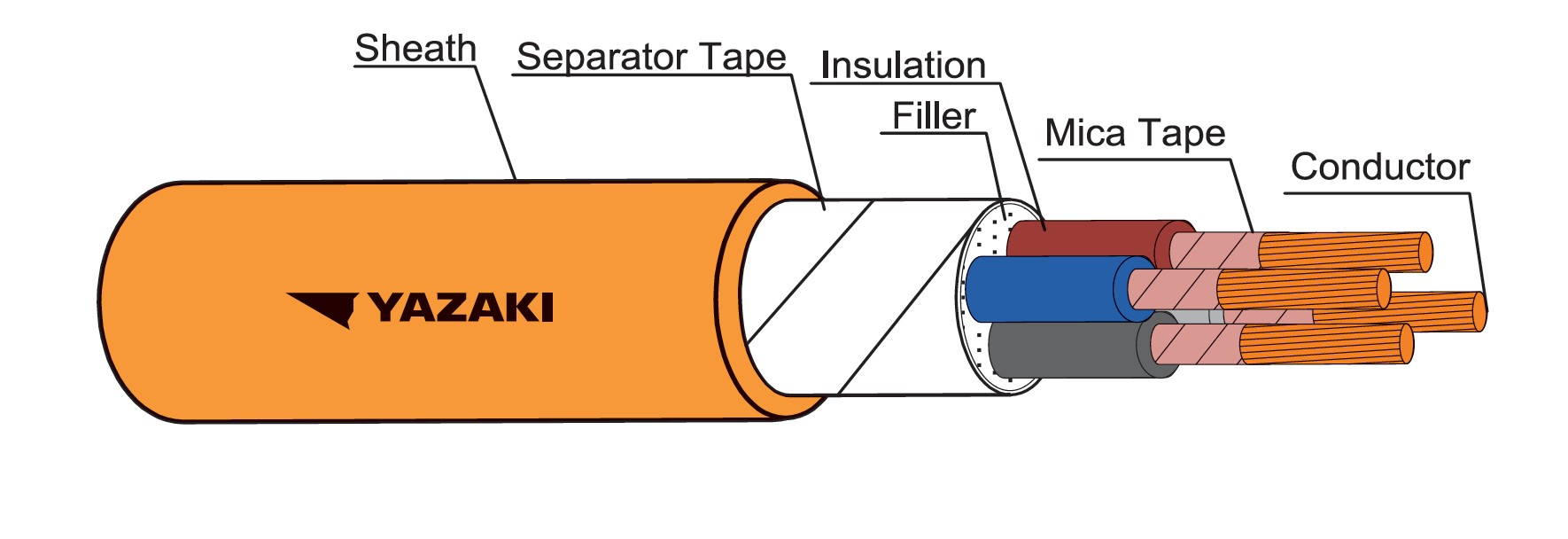

FS/FDLH-0.6/1KV-CCE

0.6/1kV 90°C MICA TAPE CROSS-LINKED POLYETHYLENE INSULATED POLYOLEFIN SHEATHED FIRE RESISTANT FLAME RETARDANT WITH LOW SMOKE AND ZERO HALOGEN CONTROL CABLE

DOWNLOAD FILE

CONDUCTOR

Stranded annealed copper

FIRE BARRIER TAPE

Mica tape

INSULATION

Cross-Linked polyethylene(XLPE)

CORE IDENTIFICATION

2 Cores : Blue and Brown

3 Cores : Brown, Black and Grey

4 Cores : Blue, Brown, Black and Grey

More than 4 Cores : Black with marking numbers, colored white, printed continuously throungout the whole length of insulated wires for the propose of core indentification.

OUTER SHEATH

Orange Low smoke and zero halogen flame retardant polyolefin (ST8)

CLASSIFICATION

Maximum conductor temperature 90°C

Circuit voltage not exceeding 1,200 Volts

RATED VOLTAGE

600 Volts between Line to Earth

1,000 Volts between Line to Line

TESTING VOLTAGE

3,500 V

REFERENCE STANDARD

Construction : IEC 60502-1

Circuit integrity : BS 6387 Category C, W, Z

Flame retardant : BS EN 60332-1-2

BS EN IEC 60332-3-22 Category A

BS EN IEC 60332-3-23 Category B

BS EN IEC 60332-3-24 Category C

Acid gas emission : BS EN 60754-1, BS EN 60754-2

Smoke emission : BS EN 61034-2

APPLICATION

For Fixed installation in electrical cabinet, conduit, trench and tray which provide flame retardant, low smoked and corrosive gases properties and main circuit integrity under fire.

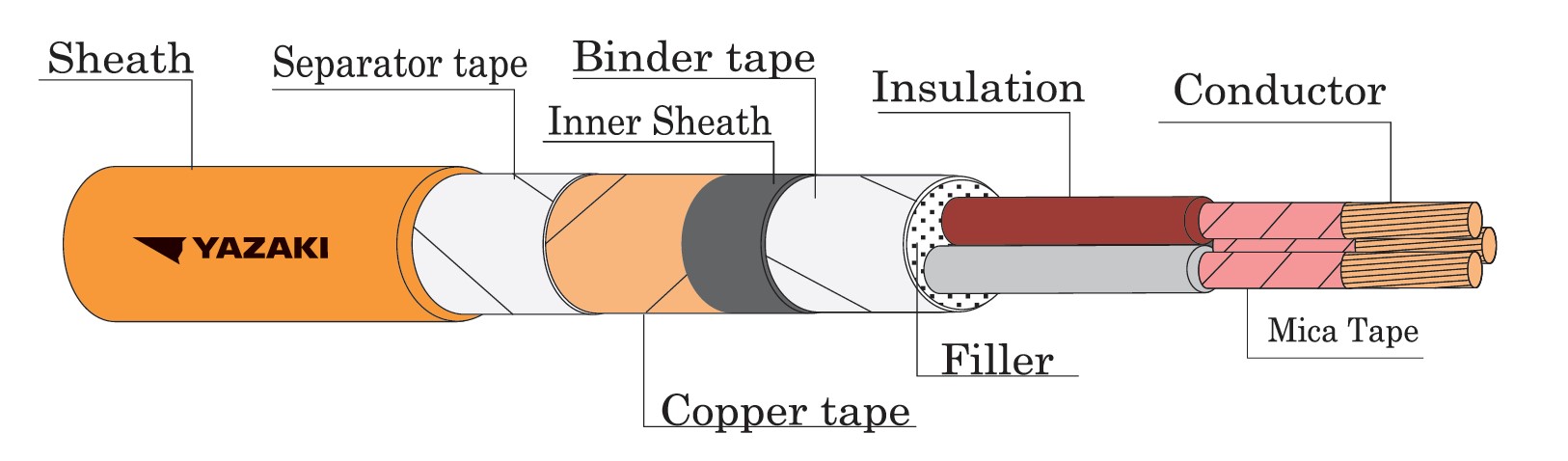

FS/FDLH-0.6/1KV-CCE-S

0.6/1kV 90°C MICA TAPE CROSS-LINKED POLYETHYLENE INSULATED POLYOLEFIN SHEATHED FIRE RESISTANT FLAME RETARDANT WITH LOW SMOKE AND ZERO HALOGEN SHIELED CONTROL CABLE

DOWNLOAD FILE

CONDUCTOR

Stranded annealed copper

FIRE BARRIER TAPE

Mica tape

INSULATION

Cross-Linked polyethylene(XLPE)

CORE IDENTIFICATION

2 Cores : Blue and Brown

3 Cores : Brown, Black and Grey

4 Cores : Blue, Brown, Black and Grey

More than 4 Cores : Black with marking numbers, colored white, printed continuously throungout the whole length of insulated wires for the propose of core indentification.

INNER SHEATH

Black Low smoke and zero halogen flame retardant polyolefin (ST8)

SHIELD

Copper tape

OUTER SHEATH

Orange Low smoke and zero halogen flame retardant polyolefin (ST8)

CLASSIFICATION

Maximum conductor temperature 90°C

Circuit voltage not exceeding 1,200 Volts

RATED VOLTAGE

600 Volts between Line to Earth

1,000 Volts between Line to Line

TESTING VOLTAGE

3,500 V

REFERENCE STANDARD

Construction : IEC 60502-1

Circuit integrity : BS 6387 Category C, W, Z

Flame retardant : BS EN 60332-1-2

BS EN IEC 60332-3-22 Category A

BS EN IEC 60332-3-23 Category B

BS EN IEC 60332-3-24 Category C

Acid gas emission : BS EN 60754-1, BS EN 60754-2

Smoke emission : BS EN 61034-2

APPLICATION

For Fixed installation in electrical cabinet, conduit, trench and tray which provide flame retardant, low smoked and corrosive gases properties and main circuit integrity under fire.

FS/FDLH-0.6/1KV-CCE-SLA

0.6/1kV 90°C MICA TAPE CROSS-LINKED POLYETHYLENE INSULATED POLYOLEFIN SHEATHED FIRE RESISTANT FLAME RETARDANT WITH LOW SMOKE AND ZERO HALOGEN SHIELED CONTROL CABLE

DOWNLOAD FILE

CONDUCTOR

Stranded annealed copper

FIRE BARRIER TAPE

Mica tape

INSULATION

Cross-Linked polyethylene(XLPE)

CORE IDENTIFICATION

2 Cores : Blue and Brown

3 Cores : Brown, Black and Grey

4 Cores : Blue, Brown, Black and Grey

More than 4 Cores : Black with marking numbers, colored white, printed continuously throungout the whole length of insulated wires for the propose of core indentification.

INNER SHEATH

Black Low smoke and zero halogen flame retardant polyolefin (ST8)

SHIELD

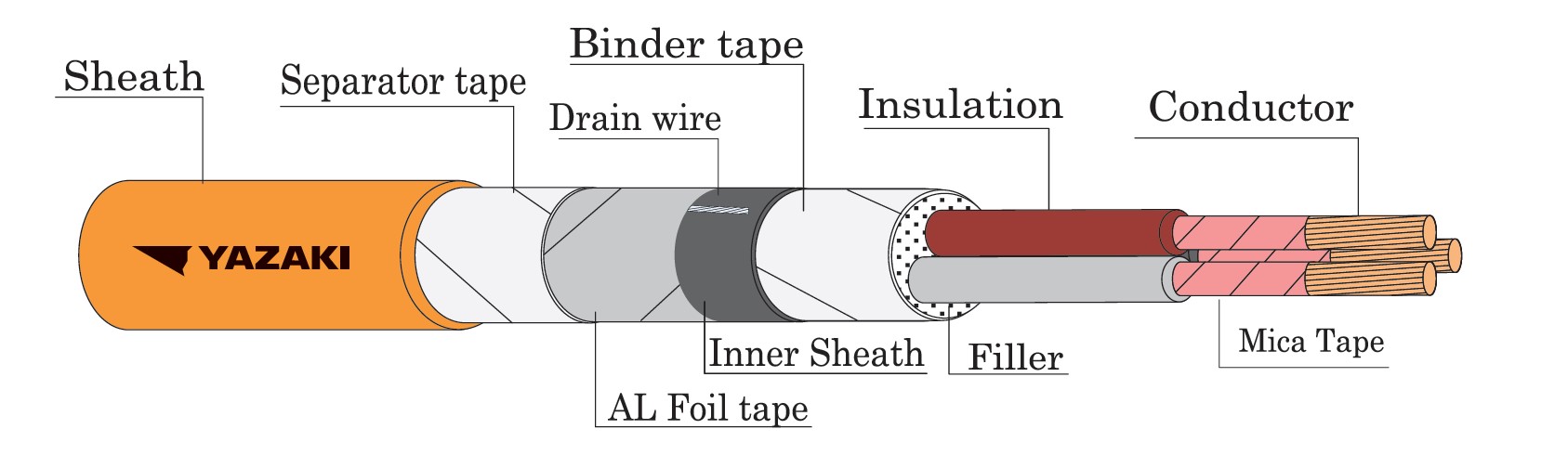

Laminated aluminium boned with polyester tape and drain wire

OUTER SHEATH

Orange Low smoke and zero halogen flame retardant polyolefin (ST8)

CLASSIFICATION

Maximum conductor temperature 90°C

Circuit voltage not exceeding 1,200 Volts

RATED VOLTAGE

600 Volts between Line to Earth

1,000 Volts between Line to Line

TESTING VOLTAGE

3,500 V

REFERENCE STANDARD

Construction : IEC 60502-1

Circuit integrity : BS 6387 Category C, W, Z

Flame retardant : BS EN 60332-1-2

BS EN IEC 60332-3-22 Category A

BS EN IEC 60332-3-23 Category B

BS EN IEC 60332-3-24 Category C

Acid gas emission : BS EN 60754-1, BS EN 60754-2

Smoke emission : BS EN 61034-2

APPLICATION

For Fixed installation in electrical cabinet, conduit, trench and tray which provide flame retardant, low smoked and corrosive gases properties and main circuit integrity under fire.

FACTORY

Thai-Yazaki Electric Wire co., ltd.

ABOUT US

PRODUCT

DOWNLOAD
