Super Soft YK Series Cables

Super Soft YK Series Cables

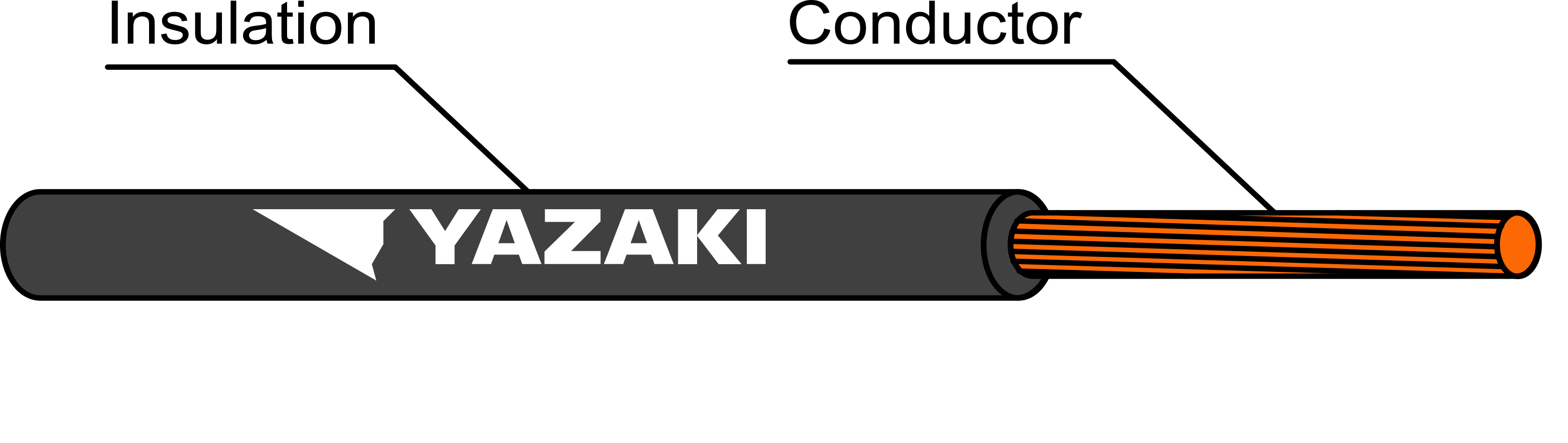

YK 60227 IEC 01 THW

450/750 V 70°C STRANDED CONDUCTOR PVC INSULATED SUPER SOFT SINGLE CORE

DOWNLOAD FILE
CONDUCTOR
    Stranded annealed copper wire

>
>
>
INSULATION
    Polyvinyl chloride (PVC/C)
>
CORE IDENTIFICATION
    Single – cores  : Any color
>
>
>
>
>
>
>
>
>
>
CLASSIFICATION
    Maximum conductor temperature 70°C
    Circuit voltage not exceeding 450/750 Volts
RATED VOLTAGE
      450 Volts between Line to Earth
      750 Volts between Line to Line
TESTING VOLTAGE
    2,500 Volts
REFERENCE STANDARD
    TIS 11 Part 3-2553, Table 1
APPLICATION
    Building wiring for installation on insulator or in raceway dry location

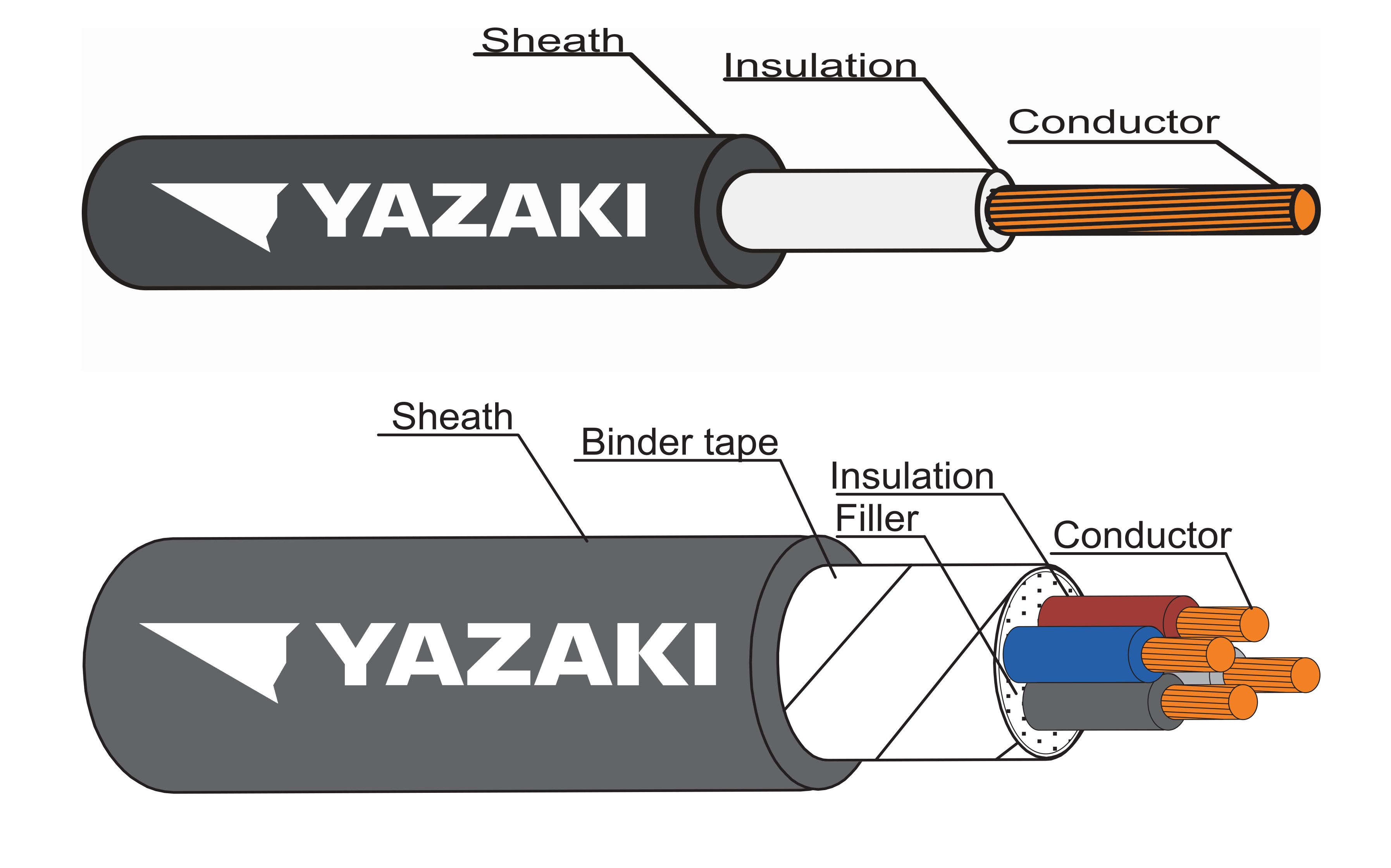

YK FD-0.6/1KV-CV

0.6/1 kV 90 °C CROSS-LINKED POLYETHYLENE INSULATED PVC SHEATHED PVC SHEATHED FLAME RETARDANT SUPER SOFT POWER CABLE

DOWNLOAD FILE
CONDUCTOR
     Non-compacted and compacted round annealed copper
>
>
>
INSULATION
    Cross-linked Polyethylene (XLPE)
>
CORE IDENTIFICATION
    Single-core : Natural (Translucent)
    2 Core : Blue and Brown
    3 Core : Brown, Black and Grey
    4 Core : Blue, Brown, Black and Grey
    Other colors are available on customer request
>
>
>
>
>
>
>
>
>
OUTER SHEATH
    Black flame retardant polyvinyl chloride (PVC/ST2)
CLASSIFICATION
    Maximum conductor temperature 90°C
    Circuit voltage not exceeding 1,200 Volts
RATED VOLTAGE
    600 Volts between Line to Earth
    1,000 Volts between Line to Line
TESTING VOLTAGE
    3,500 Volts
REFERENCE STANDARD
    IEC 60502-1, IEC 60228, IEC 60332-1, IEC 60332-3-24 (Cat.C)
APPLICATION
    For installation exposed or in raceway, wet or dry location, or direct burial in ground

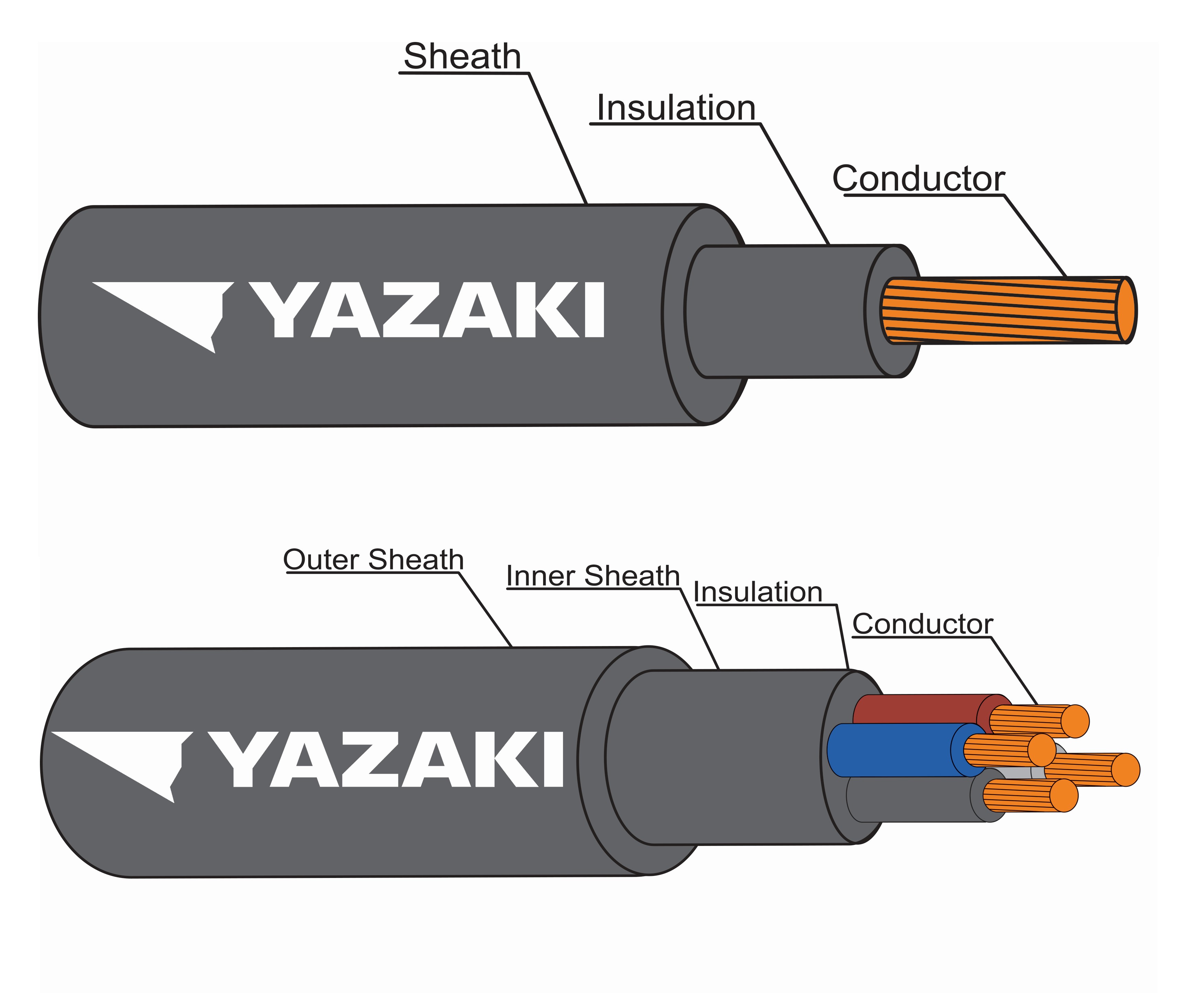

YK NYY

450/750 V 70°C STRANDED CONDUCTOR PVC INSULATED AND DOUBLE SHEATHED, SUPER SOFT POWER CABLE

DOWNLOAD FILE
CONDUCTOR
    Stranded annealed copper wire
>
>
>
INSULATION
      Polyvinyl chloride (PVC/C)
>
CORE IDENTIFICATION
      Single-core : Black
      2 Core : Blue and Brown
      3 Core : Brown, Black and Grey
      4 Core : Blue, Brown, Black and Grey
>
>
INNER SHEATH
      Black polyvinyl chloride (PVC)
>
>
>
>
>
>
OUTER SHEATH
      Black polyvinyl chloride (PVC/ST4)
CLASSIFICATION
    Maximum conductor temperature 70°C
    Circuit voltage not exceeding 450/750 Volts
RATED VOLTAGE
      450 Volts between Line to Earth
      750 Volts between Line to Line
TESTING VOLTAGE
      2,500 Volts
REFERENCE STANDARD
      TIS 11 Part 101-2559, Table 4
APPLICATION
    For installation exposed or in raceway, wet or dry location, or direct burial in ground
