Medium Voltage Cables

Medium Voltage Cables

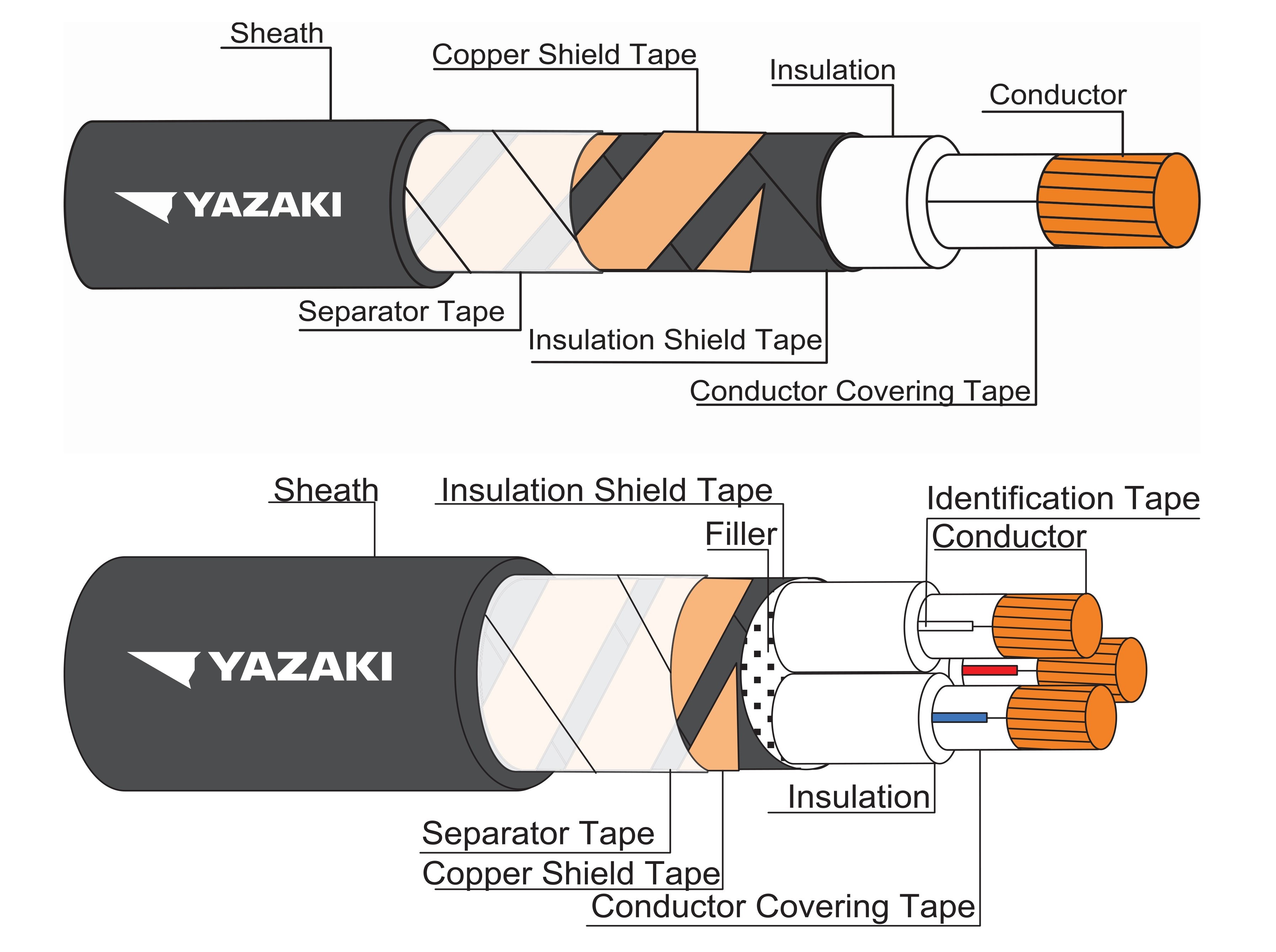

1.8/3 KV-CV

1.8/3 (3.6) kV 90°C CROSS-LINKED POLYETHYLENE INSULATED PVCSHEATHED POWER CABLE

DOWNLOAD FILE
CONDUCTOR
    Compacted round stranded annealed copper
>
>
>
INSULATION
    Cross-Linked polyethylene (XLPE)
INSULATION SHIELD
    Semi-conductive tape
CORE IDENTIFICATION
    Single-core : Natural (Translucent)
    3 core : White, Red and Blue
>
>
>
SHIELD
    Copper tape
>
>
>
>
>
OUTER SHEATH
    Black polyvinyl chloride (PVC/ST2)
CLASSIFICATION
    Maximum conductor temperature 90°C
    Circuit voltage not exceeding 3,600 Volts
RATED VOLTAGE
    1,800 Volts between Line to Earth
    3,000 Volts between Line to Line
TESTING VOLTAGE
    6,500 Volts
REFERENCE STANDARD
    IEC 60502-1, IEC 60228, IEC 60332-1
APPLICATION

    For installation exposed or in raceway, wet or dry location, or direct burial in ground

3.6/6 KV-CV

3.6/6 (7.2) kV 90°C CROSS-LINKED POLYETHYLENE INSULATED ANDPVC SHEATHED POWER CABLE

DOWNLOAD FILE
CONDUCTOR
      Compacted round stranded annealed copper
>
>
>
INSULATION
    Cross-Linked polyethylene (XLPE)
INSULATION SHIELD
    Semi-conductive Cross-linked polyethylene compound
CORE IDENTIFICATION
    Single-core : Natural (Translucent)
    3 core : White, Red and Blue
>
>
>
SHIELD
    Copper tape
>
>
>
>
>
OUTER SHEATH
    Black polyvinyl chloride (PVC/ST2)
CLASSIFICATION
    Maximum conductor temperature 90°C
    Circuit voltage not exceeding 7,200 Volts
RATED VOLTAGE
    3,600 Volts between Line to Earth
    6,000 Volts between Line to Line
TESTING VOLTAGE
    12,500 Volts
REFERENCE STANDARD
    IEC 60502-1, IEC 60228, IEC 60332-1
APPLICATION
    For installation exposed or in raceway, wet or dry location, or direct burial in ground
6/10 KV-CV

6/10 (12) kV 90°C CROSS-LINKED POLYETHYLENE INSULATED AND PVC SHEATHED POWER CABLE

DOWNLOAD FILE
CONDUCTOR
    Compacted round stranded annealed copper
>
>
>
INSULATION
    Cross-Linked polyethylene (XLPE)
INSULATION SHIELD
      Semi-conductive Cross-linked polyethylene compound
CORE IDENTIFICATION
    Single-core : Natural (Translucent)
    3 core : White, Red and Blue
>
>
>
SHIELD
    Copper tape
>
>
>
>
>
OUTER SHEATH
    Black polyvinyl chloride (PVC/ST2)
CLASSIFICATION
    Maximum conductor temperature 90°C
    Circuit voltage not exceeding 12,000 Volts
RATED VOLTAGE
    6,000 Volts between Line to Earth
    10,000 Volts between Line to Line
TESTING VOLTAGE
    21,000 Volts
REFERENCE STANDARD
    IEC 60502-1, IEC 60228, IEC 60332-1
APPLICATION
    For installation exposed or in raceway, wet or dry location, or direct burial in ground
8.7/15KV-CV

8.7/15 (17.5) kV 90°C CROSS-LINKED POLYETHYLENE INSULATED ANDPVC SHEATHED POWER CABLE

DOWNLOAD FILE
CONDUCTOR
      Compacted round stranded annealed copper
>
>
>
INSULATION
    Cross-Linked polyethylene (XLPE)
INSULATION SHIELD
      Semi-conductive Cross-linked polyethylene compound
CORE IDENTIFICATION
    Single-core : Natural (Translucent)
    3 core : White, Red and Blue
>
>
>
SHIELD
    Copper tape
>
>
>
>
>
OUTER SHEATH
    Black polyvinyl chloride (PVC/ST2)
CLASSIFICATION
    Maximum conductor temperature 90°C
    Circuit voltage not exceeding 17,500 Volts
RATED VOLTAGE
    8,700 Volts between Line to Earth
    15,000 Volts between Line to Line
TESTING VOLTAGE
      30,500 Volts
REFERENCE STANDARD
      IEC 60502-1, IEC 60228, IEC 60332-1
APPLICATION
      For installation exposed or in raceway, wet or dry location, or direct burial in ground

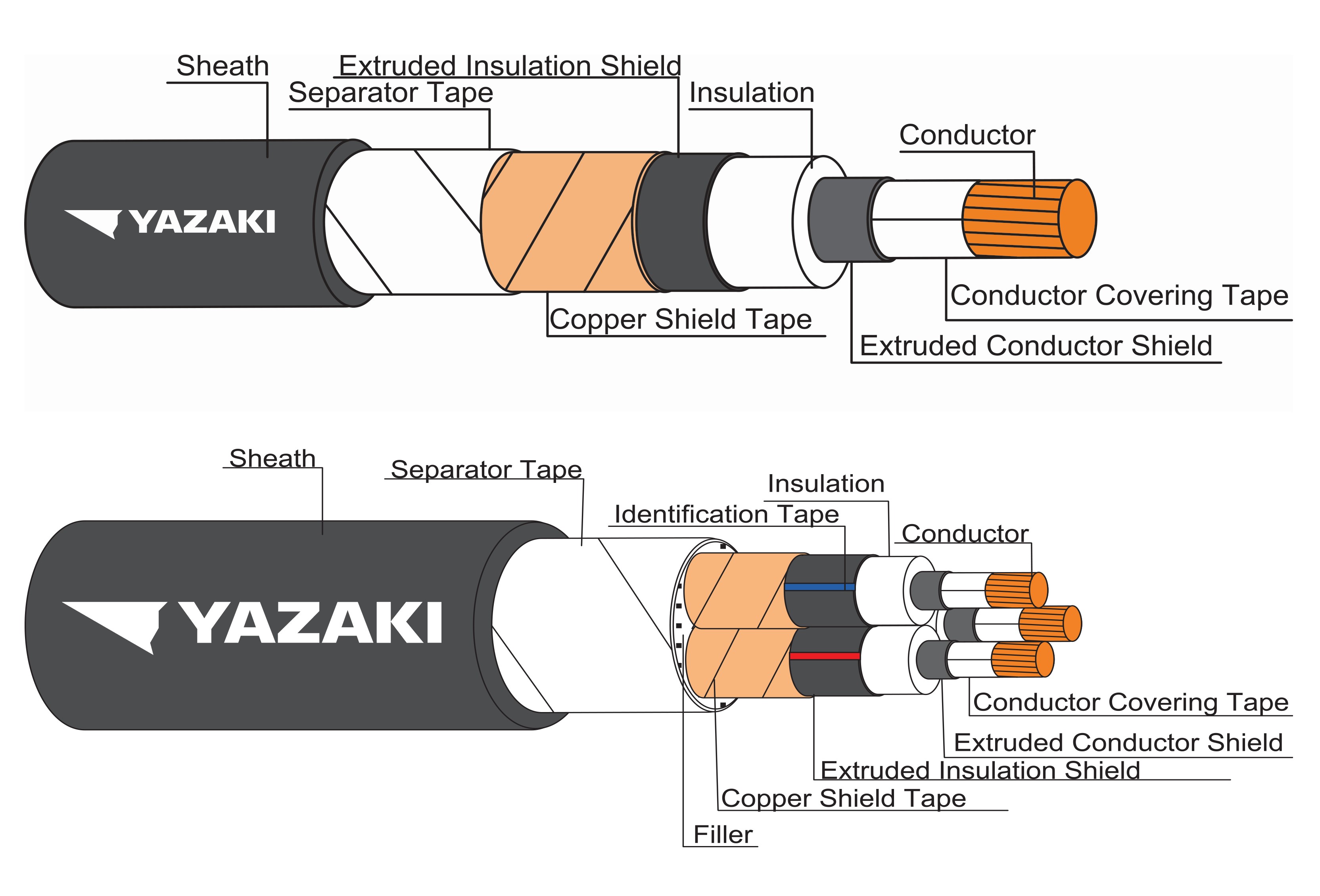

12/20 KV-CV

12/20 (24) kV 90°C CROSS-LINKED POLYETHYLENE INSULATED ANDPVC SHEATHED POWER CABLE

DOWNLOAD FILE
CONDUCTOR
      Compacted round stranded annealed copper
>
>
>
INSULATION
    Cross-Linked polyethylene (XLPE)
INSULATION SHIELD
      Semi-conductive Cross-linked polyethylene compound
CORE IDENTIFICATION
    Single-core : Natural (Translucent)
    3 core : White, Red and Blue
>
>
>
SHIELD
      Copper tape
>
>
>
>
>
OUTER SHEATH
      Black polyvinyl chloride (PVC/ST2)
CLASSIFICATION
    Maximum conductor temperature 90°C
    Circuit voltage not exceeding 24,000 Volts
RATED VOLTAGE
    12,000 Volts between Line to Earth
    24,000 Volts between Line to Line
TESTING VOLTAGE
    42,000 Volts
REFERENCE STANDARD
    IEC 60502-1, IEC 60228, IEC 60332-1
APPLICATION
      For installation exposed or in raceway, wet or dry location, or direct burial in ground
18/30 KV-CV

18/30 (36) kV 90°C CROSS-LINKED POLYETHYLENEINSULATED AND PVC SHEATHED POWER CABLE

DOWNLOAD FILE
CONDUCTOR
    Compacted round stranded annealed copper
>
>
>
INSULATION
    Cross-Linked polyethylene (XLPE)
INSULATION SHIELD
      Semi-conductive Cross-linked polyethylene compound
CORE IDENTIFICATION
    Single-core : Natural (Translucent)
    3 core : White, Red and Blue
>
>
>
SHIELD
      Copper tape
>
>
>
>
>
OUTER SHEATH
      Black polyvinyl chloride (PVC/ST2)
CLASSIFICATION
    Maximum conductor temperature 90°C
    Circuit voltage not exceeding 36,000 Volts
RATED VOLTAGE
    18,000 Volts between Line to Earth
    30,000 Volts between Line to Line
TESTING VOLTAGE

    63,000 Volts

REFERENCE STANDARD
    IEC 60502-1, IEC 60228, IEC 60332-1
APPLICATION
    For installation exposed or in raceway, wet or dry location, or direct burial in ground
24 KV-OC

24 KV CROSS-LINKED POLYETHYLENE PARTIAL INSULATED ALLALUMINIUM CABLE

DOWNLOAD FILE
CONDUCTOR

    Compacted round stranded hard drawn aluminium wires

>
CONDUCTOR SCREEN
    Semi-Conductive Cross-linked polyethylene (XLPE) compound
>
INSULATION
    Black Cross-Linked polyethylene (XLPE)
>
>
>
>
>
>
>
>
>
>
>
>
CLASSIFICATION
    Maximum conductor temperature 90°C
    Circuit voltage not exceeding 24,000 Volts
>
TESTING VOLTAGE
    11,000 Volts
REFERENCE STANDARD

    ICEA S-66-524, ICEA S-93-639

APPLICATION
    For Aerial power transmission and distribution line

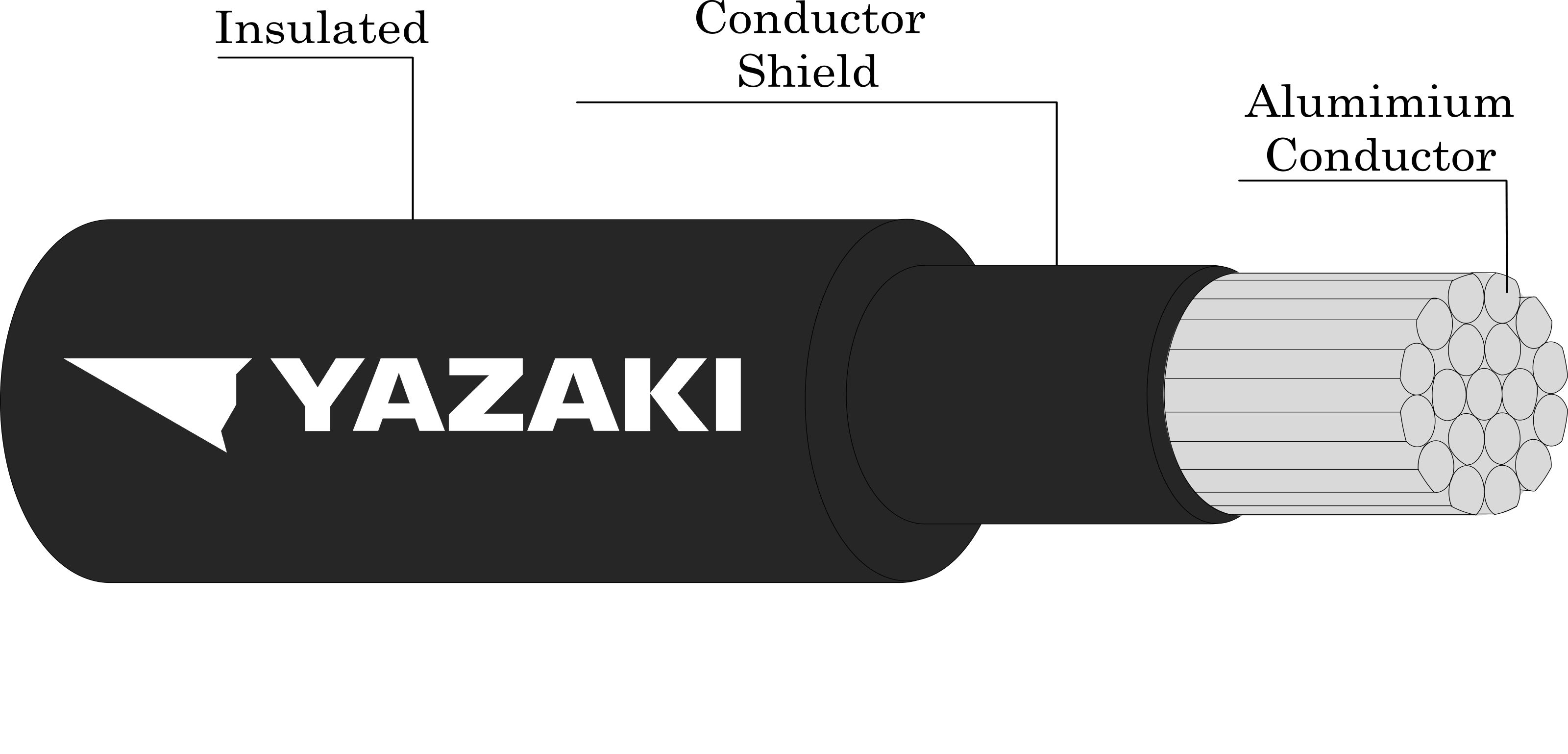

33 KV-OC

33 KV CROSS-LINKED POLYETHYLENE PARTIAL INSULATED ALLALUMINIUM CABLE

DOWNLOAD FILE
CONDUCTOR
      Compacted round stranded hard drawn aluminuim wire
>
CONDUCTOR SCREEN
    Semi-Conductive Cross-linked polyethylene (XLPE) compound
>
INSULATION
    Black Cross-Linked polyethylene (XLPE)
>
>
>
>
>
>
>
>
>
>
>
>
CLASSIFICATION
    Maximum conductor temperature 90°C
    Circuit voltage not exceeding 33,000 Volts
>
TESTING VOLTAGE
      17,000 Volts
REFERENCE STANDARD
    ICEA S-66-524, ICEA S-93-639
APPLICATION
    For Aerial power transmission and distribution line

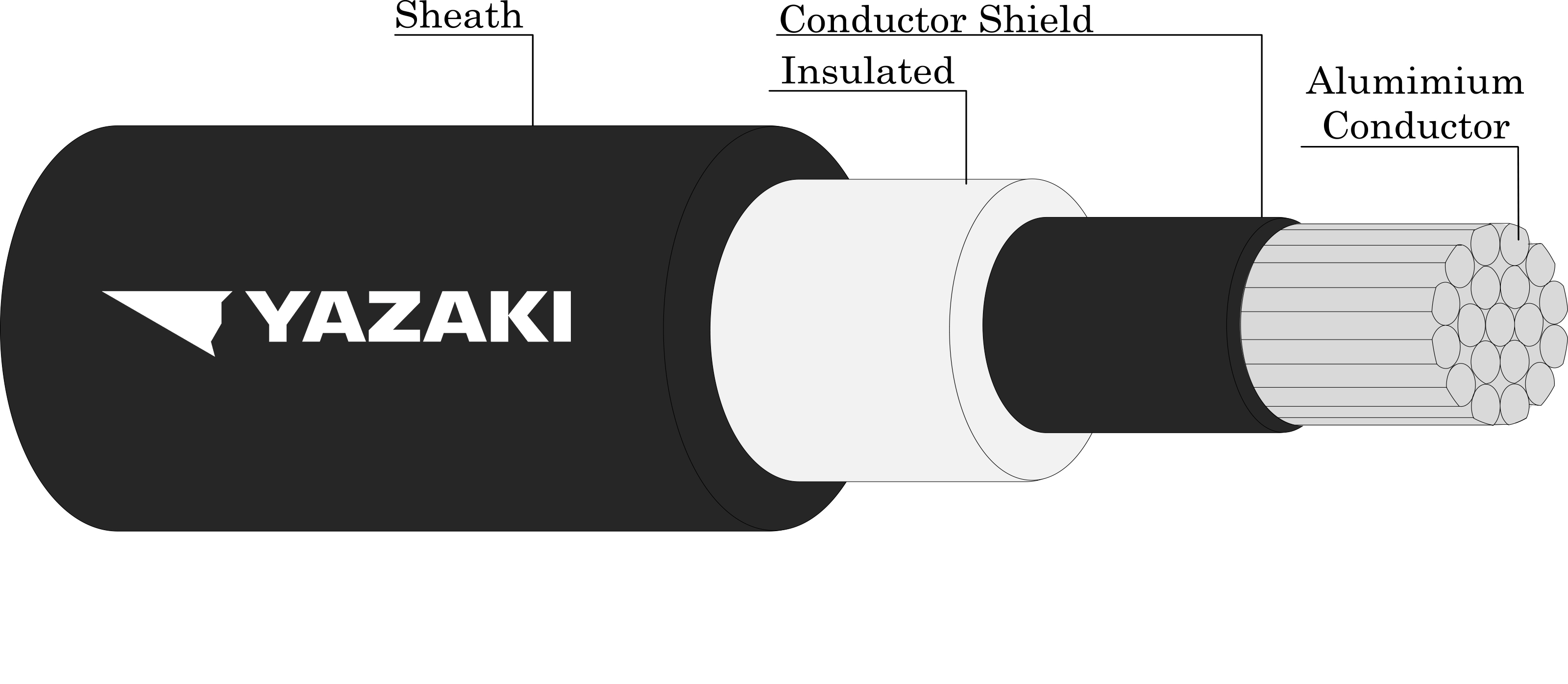

15KV-CC

15 KV ALL ALUMINIUM CONDUCTOR SPACED AERIAL CABLE

DOWNLOAD FILE
CONDUCTOR
      Compacted round stranded hard drawn aluminuim wire
>
CONDUCTOR SCREEN
      Semi-Conductive Cross-linked polyethylene (XLPE) compound
>
INSULATION
      Cross-Linked polyethylene (XLPE)
>
>
>
>
>
>
>
>
>
>
>
OUTER SHEATH
    Black Cross-Linked polyethylene (XLPE)
CLASSIFICATION
    Maximum conductor temperature 90°C
    Circuit voltage not exceeding 15,000 Volts
>
TESTING VOLTAGE
    27,000 Volts
REFERENCE STANDARD
    ICEA S-66-524, ICEA S-93-639
APPLICATION
    For Aerial power transmission and distribution line
25 KV-CC

25 KV ALL ALUMINIUM CONDUCTOR SPACED AERIAL CABLE

DOWNLOAD FILE
CONDUCTOR
      Compacted round stranded hard drawn aluminuim wire
>
CONDUCTOR SCREEN
    Semi-Conductive Cross-linked polyethylene (XLPE) compound
>
INSULATION
    Cross-Linked polyethylene (XLPE)
>
>
>
>
>
>
>
>
>
>
>
OUTER SHEATH
    Black Cross-Linked polyethylene (XLPE)
CLASSIFICATION
      Maximum conductor temperature 90°C
      Circuit voltage not exceeding 25,000 Volts
>
TESTING VOLTAGE
    38,000 Volts
REFERENCE STANDARD
    ICEA S-66-524, ICEA S-93-639
APPLICATION
    For Aerial power transmission and distribution line

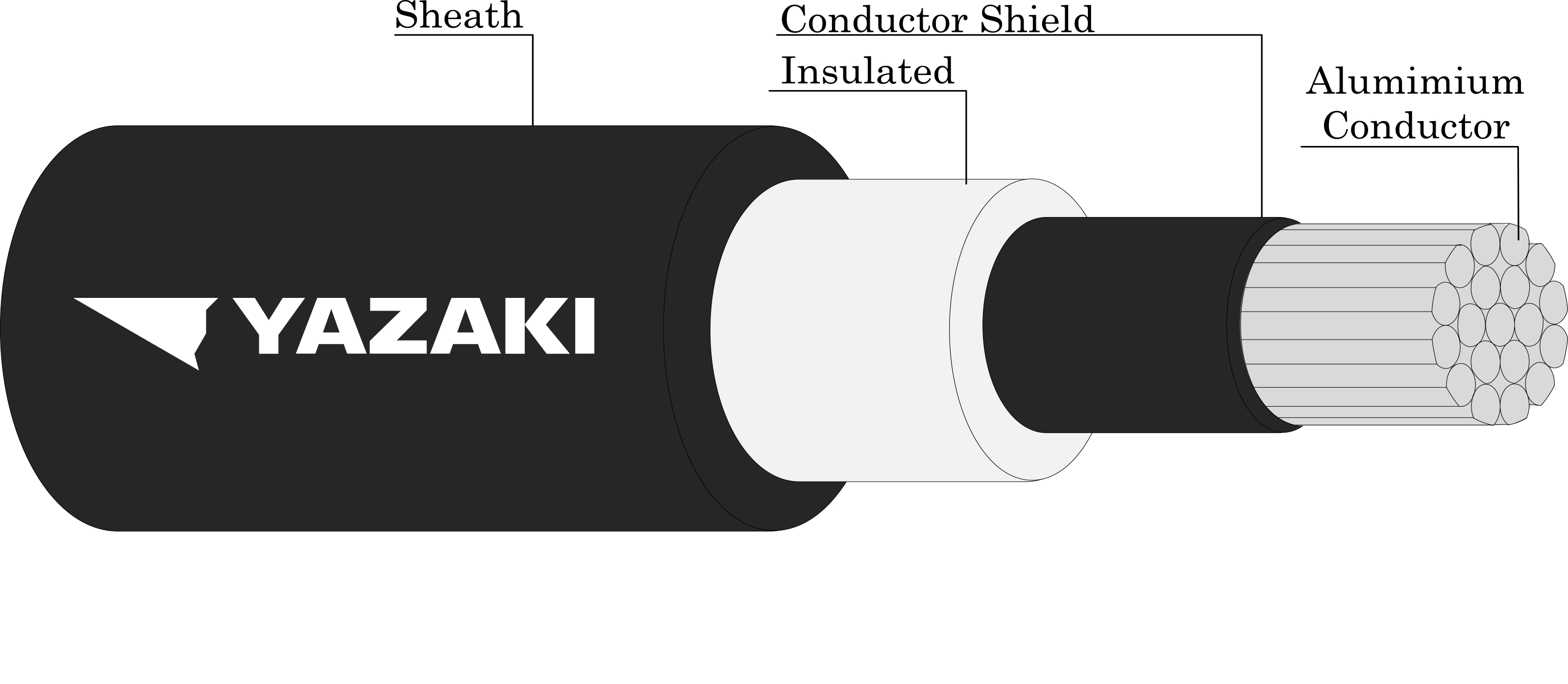

35 KV-CC

35 KV ALL ALUMINIUM CONDUCTOR SPACED AERIAL CABLE

DOWNLOAD FILE
CONDUCTOR

    Compacted round stranded hard drawn aluminuim wire

>
CONDUCTOR SCREEN

    Semi-Conductive Cross-linked polyethylene (XLPE) compound

>
INSULATION
    Cross-Linked polyethylene (XLPE)
>
>
>
>
>
>
>
>
>
>
>
OUTER SHEATH
    Black Cross-Linked polyethylene (XLPE)
CLASSIFICATION
    Maximum conductor temperature 90°C
    Circuit voltage not exceeding 35,000 Volts
>
TESTING VOLTAGE
    49,000 Volts
REFERENCE STANDARD
    ICEA S-66-524, ICEA S-93-639
APPLICATION

    For Aerial power transmission and distribution line
