Low Voltage Cables

Low Voltage Cables
NYY-SWA

450/750 V 70°C PVC INSULATED AND DOUBLE SHEATHED, WITH GALVANIZED STEEL WIRES ARMORED POWER CABLE

CONDUCTOR
    Solid and stranded annealed copper
>
>
>
INSULATION
    Polyvinyl chloride (PVC/C)
>
CORE IDENTIFICATION
    2 Core : Blue and Brown
    3 Core : Brown, Black and Grey
    4 Core : Blue, Brown, Black and Grey
    Other colors are available on customer request
>
>
>
>
>
>
ARMOUR
    Galvanized Steel Wires
>
>
OUTER SHEATH
    Black polyvinyl chloride (PVC/ST4)
CLASSIFICATION
    Maximum conductor temperature 70°C
    Circuit voltage not exceeding 450/750 Volts
RATED VOLTAGE
    450 Volts between Line to Earth
    750 Volts between Line to Line
TESTING VOLTAGE
    2,500 Volts
REFERENCE STANDARD
    TIS 11 Part 101-2559, Table 4
APPLICATION
    For installation exposed or in raceway, wet or dry location, or direct burial in ground

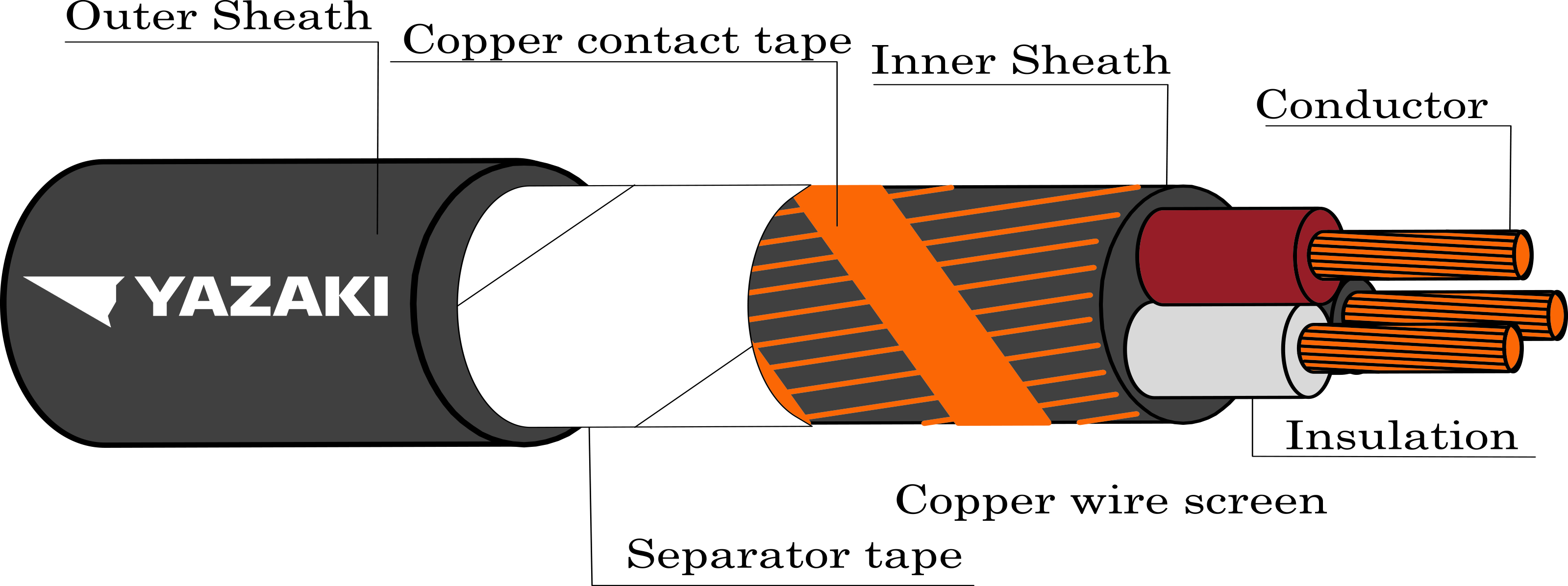

NYCY

450/750 V 70°C PVC INSULATED AND DOUBLE SHEATHED, WITH CONCENTRIC CONDUCTORS POWER CABLE

CONDUCTOR
    Solid and stranded annealed copper wires
>
>
>
INSULATION
    Polyvinyl chloride (PVC/C)
>
CORE IDENTIFICATION
    3 Core : Brown, Black and Grey
    Other colors are available on customer request
>
>
INNER SHEATH
    Black Polyvinyl chloride (PVC)
SHIELD
    Concentric shield : Annealed copper wires with helix of copper tape fully covers
>
>
>
>
>
OUTER SHEATH
    Black polyvinyl chloride (PVC/ST4)
CLASSIFICATION
    Maximum conductor temperature 70°C
    Circuit voltage not exceeding 450/750 Volts
RATED VOLTAGE
    450 Volts between Line to Earth
    750 Volts between Line to Line
TESTING VOLTAGE
    2,500 Volts
REFERENCE STANDARD
    TIS 11 Part 101-2559, Table 4
APPLICATION
    For installation exposed or in raceway, wet or dry location, or direct burial in ground

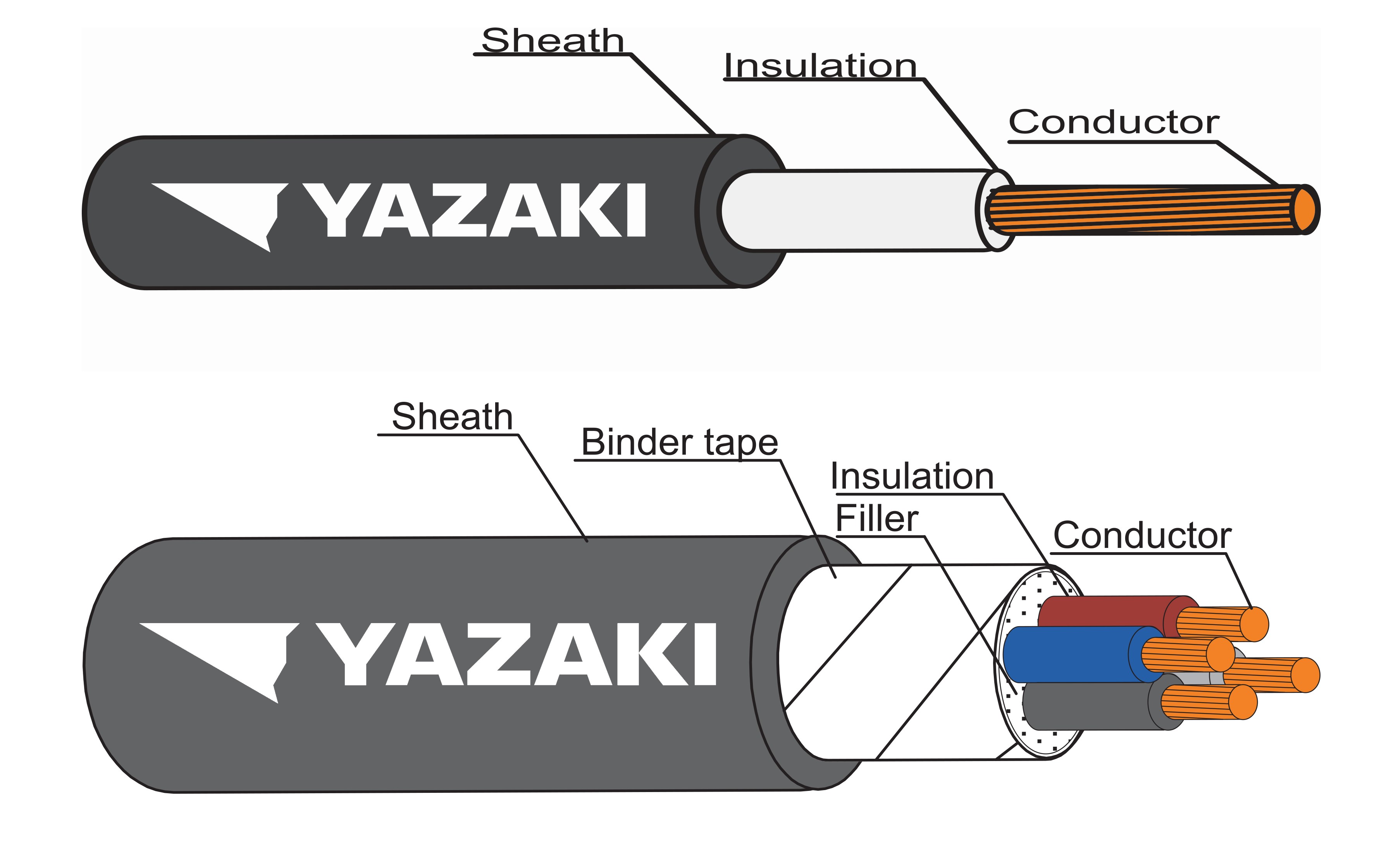

FD-0.6/1KV-CV

0.6/1kV 90°C CROSS-LINKED POLYETHYLENE INSULATED PVC SHEATHED FLAME RETARDANT POWER CABLE

CONDUCTOR
     Non-compacted and compacted round annealed copper
>
>
>
INSULATION
    Cross-linked Polyethylene (XLPE)
>
CORE IDENTIFICATION
    Single-core : Natural (Translucent)
    2 Core : Blue and Brown
    3 Core : Brown, Black and Grey
    4 Core : Blue, Brown, Black and Grey
    Other colors are available on customer request
>
>
>
>
>
>
>
>
>
OUTER SHEATH
    Black flame retardant polyvinyl chloride (PVC/ST2)
CLASSIFICATION
    Maximum conductor temperature 90°C
    Circuit voltage not exceeding 1,200 Volts
RATED VOLTAGE
    600 Volts between Line to Earth
    1,000 Volts between Line to Line
TESTING VOLTAGE
    3,500 Volts
REFERENCE STANDARD
    IEC 60502-1, IEC 60228, IEC 60332-1, IEC 60332-3-24 (Cat.C)
APPLICATION
    For installation exposed or in raceway, wet or dry location, or direct burial in ground

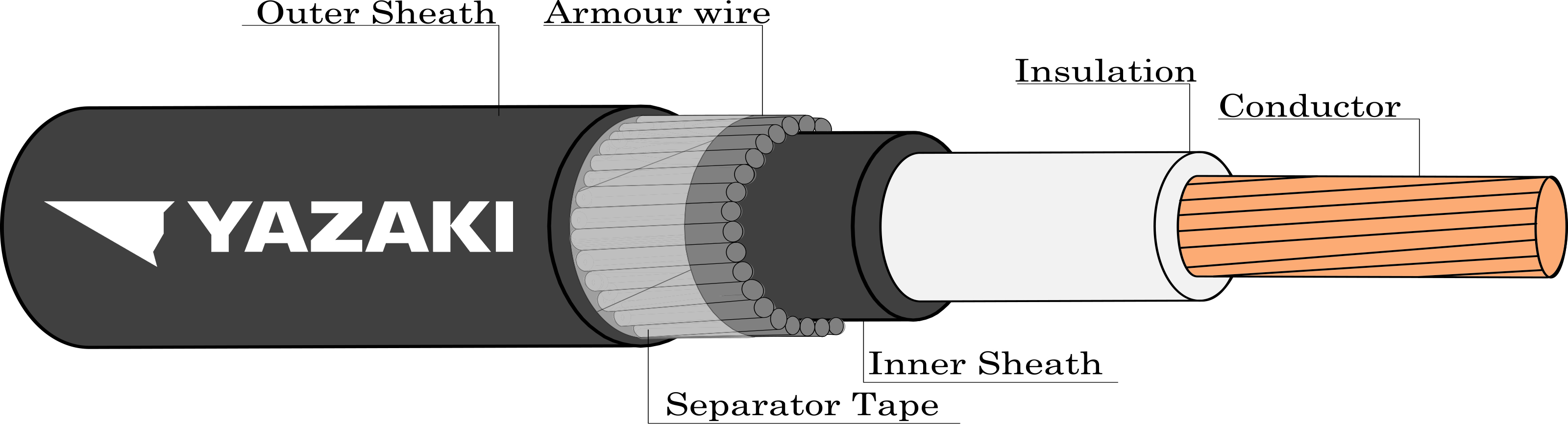

FD-0.6/1KV-CV-AWA

0.6/1(1.2)kV 90 °C CROSS -LINKED POLYETHYLENE INSULATED PVC SHEATHED, WITH ALUMINIUM WIRE ARMORED FLAME RETARDANT POWER CABLE

CONDUCTOR
    Non-compacted and compacted round annealed copper
>
>
>
INSULATION
    Cross-linked Polyethylene (XLPE)
>
CORE IDENTIFICATION
    Single-core : Natural (Translucent)
>
>
>
>
>
>
ARMOUR
    Aluminium wires
>
>
OUTER SHEATH
    Black flame retardant polyvinyl chloride (PVC/ST2)
CLASSIFICATION
    Maximum conductor temperature 90°C
    Circuit voltage not exceeding 1,200 Volts
RATED VOLTAGE
    600 Volts between Line to Earth
    1,000 Volts between Line to Line
TESTING VOLTAGE
    3,500 Volts
REFERENCE STANDARD
    IEC 60502-1, IEC 60228, IEC 60332-1 : IEC 60332-3-24(CAT.C)
APPLICATION
    For installation exposed or in raceway, wet or dry location, or direct burial in ground

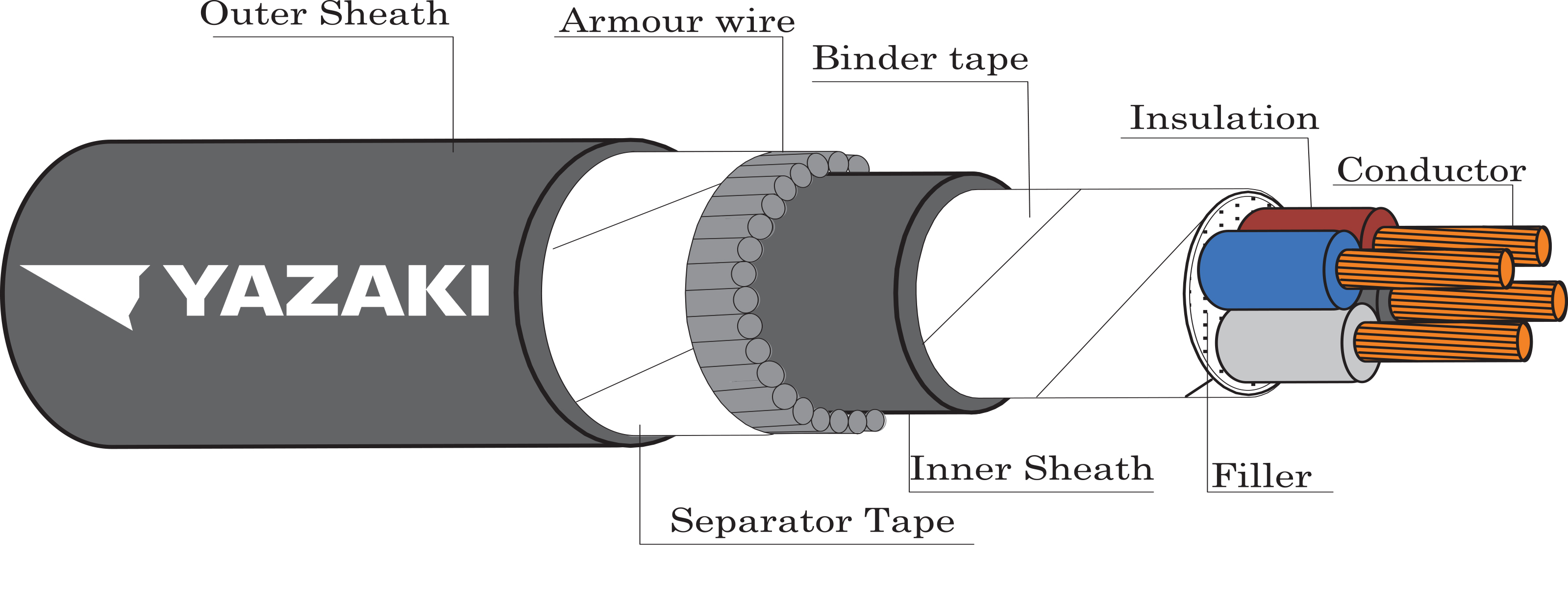

FD-0.6/1 KV-CV-SWA

0.6/1 KV 90°C CROSS-LINKED POLYETHYLENE INSULATED PVC SHEATHED, WITH GALVANIZED STEEL WIRES ARMORED POWER CABLE

CONDUCTOR
      Non-compacted and compacted stranded annealed copper
>
>
>
INSULATION
      Cross-linked Polyethylene (XLPE)
>
CORE IDENTIFICATION
      2 Core : Blue and Brown
      3 Core : Brown, Black and Grey
      4 Core : Blue, Brown, Black and Grey
      Other colors are available on customer request
>
>
INNER SHEATH
      Black polyvinyl chloride (PVC)
>
>
>
ARMOUR
    Galvanized Steel Wires
>
>
OUTER SHEATH
      Black Flame retardant polyvinyl chloride (PVC/ST2)
CLASSIFICATION
    Maximum conductor temperature 90°C

       Circuit voltage not exceeding 1,200 Volts

RATED VOLTAGE
    600 Volts between Line to Earth
    1,000 Volts between Line to Line
TESTING VOLTAGE
    3,500 Volts
REFERENCE STANDARD
      IEC 60502-1, IEC 60228, IEC 60332-1,
      IEC 60332-3-24 (Cat.C)
APPLICATION
    For installation exposed or in raceway, wet or dry location, or direct burial in ground

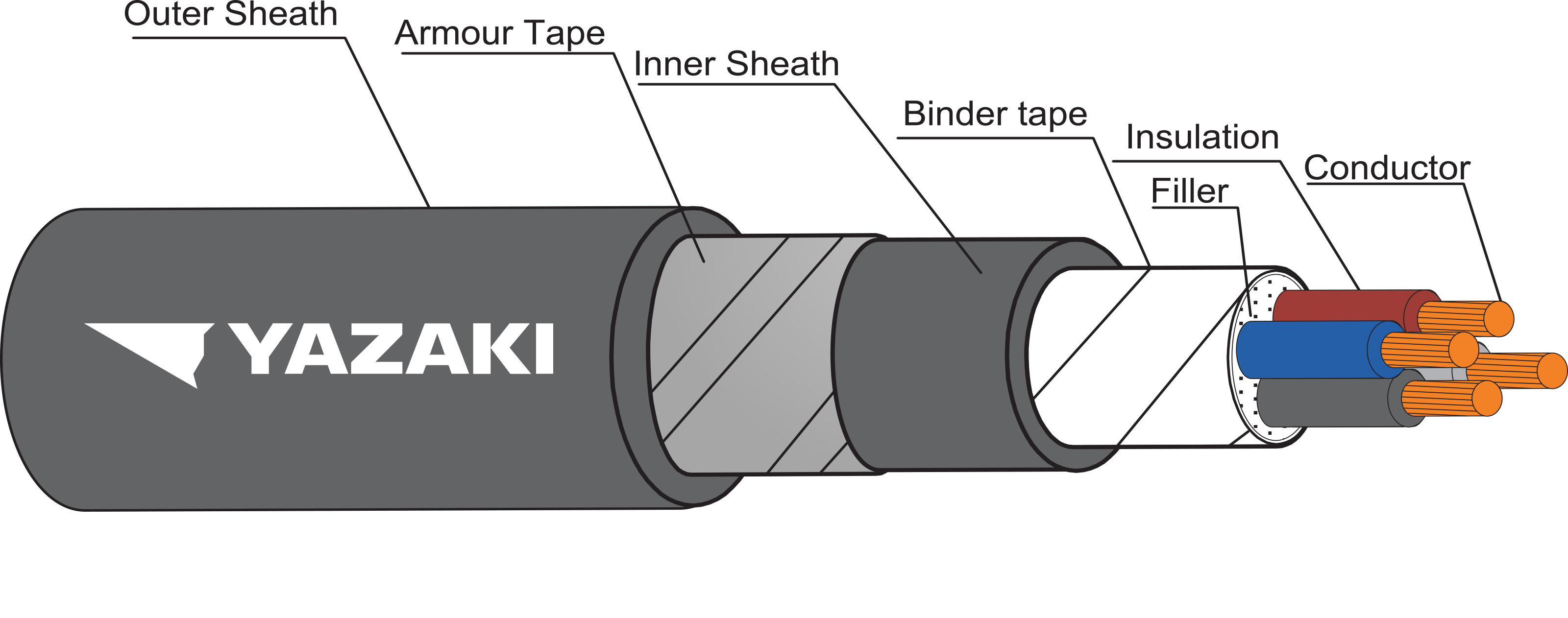

FD-0.6/1 KV-CV-STA

0.6/1 KV 90°C CROSS-LINKED POLYETHYLENE INSULATED PVC SHEATHED STEEL TAPE ARMOUR FLAME RETARDANT POWER CABLE

CONDUCTOR
    Non-compacted and compacted round annealed copper
>
>
>
INSULATION
      Cross-linked Polyethylene (XLPE)
>
CORE IDENTIFICATION
      2 Core : Blue and Brown
      3 Core : Brown, Black and Grey
      4 Core : Blue, Brown, Black and Grey
      Other colors are available on customer request
>
>
INNER SHEATH
      Black polyvinyl chloride (PVC)
>
>
>
ARMOUR
    Two Galvanized flat Steel Tape
>
>
OUTER SHEATH
      Black Flame retardant polyvinyl chloride (PVC/ST2)
CLASSIFICATION
      Maximum conductor temperature 90°C
    Circuit voltage not exceeding 1,200 Volts
RATED VOLTAGE
      600 Volts between Line to Earth
      1,000 Volts between Line to Line
TESTING VOLTAGE
    3,500 Volts
REFERENCE STANDARD
    IEC 60502-1, IEC 60228, IEC 60332-1,
    IEC 60332-3-24 (Cat.C)
APPLICATION
    For installation exposed or in raceway, wet or dry location, or direct burial in ground

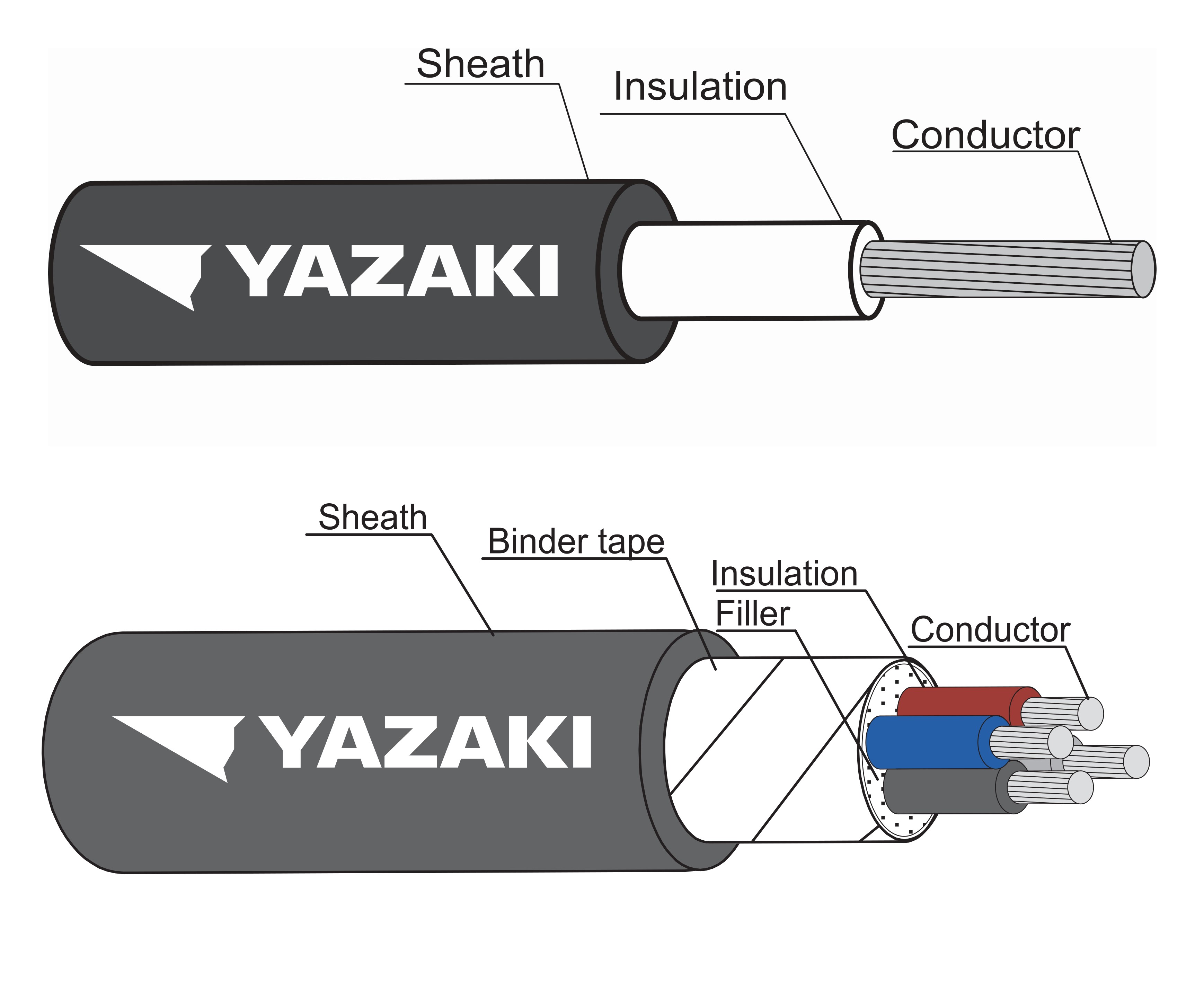

FD-0.6/1KV-AL-CV

0.6/1(1.2)kV 90 °C ALUMINIUM CONDUCTOR CROSS -LINKED POLYETHYLENE INSULATED PVC SHEATHED FLAME RETARDANT POWER CABLE

CONDUCTOR
    Compacted stranded hard drawn aluminium
>
>
>
INSULATION
      Cross-linked Polyethylene (XLPE)
>
CORE IDENTIFICATION
      Single-core : Natural (Translucent)
      2 Core : Blue and Brown
      3 Core : Brown, Black and Grey
      4 Core : Blue, Brown, Black and Grey
>
>
>
>
>
>
>
>
>
OUTER SHEATH
      Black flame retardant polyvinyl chloride (PVC/ST2)
CLASSIFICATION
      Maximum conductor temperature 90°C

         Circuit voltage not exceeding 1,200 Volts

RATED VOLTAGE
      600 Volts between Line to Earth
      1,000 Volts between Line to Line
TESTING VOLTAGE
    3,500 Volts
REFERENCE STANDARD
        IEC 60502-1, IEC 60228, IEC 60332-1,
        IEC 60332-3-24 (Cat.C)
APPLICATION
      For installation exposed or in raceway, wet or dry location, or direct burial in ground

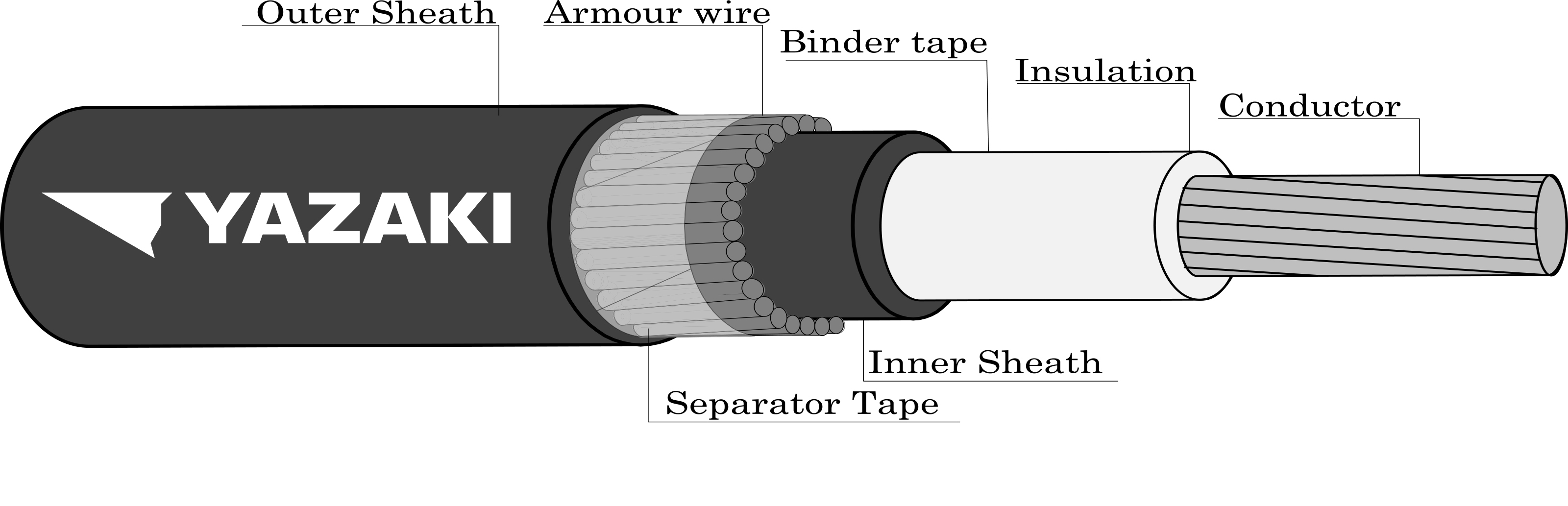

FD-0.6/1KV-AL-CV-AWA

0.6/1(1.2)kV 90 °C ALUMINIUM CONDUCTOR CROSS -LINKED POLYETHYLENE INSULATED PVC SHEATHED, WITH ALUMINIUM WIRE ARMORED FLAME RETARDANT POWER CABLE

CONDUCTOR
      Compacted stranded hard drawn aluminium
>
>
>
INSULATION
      Cross-linked Polyethylene (XLPE)
>
CORE IDENTIFICATION
    Single-core : Natural (Translucent)
>
>
INNER SHEATH
    Black polyvinyl chloride (PVC)
>
>
>
ARMOUR
    Aluminium Wires
>
>
OUTER SHEATH
      Black Flame retardant polyvinyl chloride (PVC/ST2)
CLASSIFICATION
      Maximum conductor temperature 90°C

          Circuit voltage not exceeding 1,200 Volts

RATED VOLTAGE
      600 Volts between Line to Earth
      1,000 Volts between Line to Line
TESTING VOLTAGE
    3,500 Volts
REFERENCE STANDARD
        IEC 60502-1, IEC 60228, IEC 60332-1,
        IEC 60332-3-24 (Cat.C)
APPLICATION
      For installation exposed or in raceway, wet or dry location, or direct burial in ground

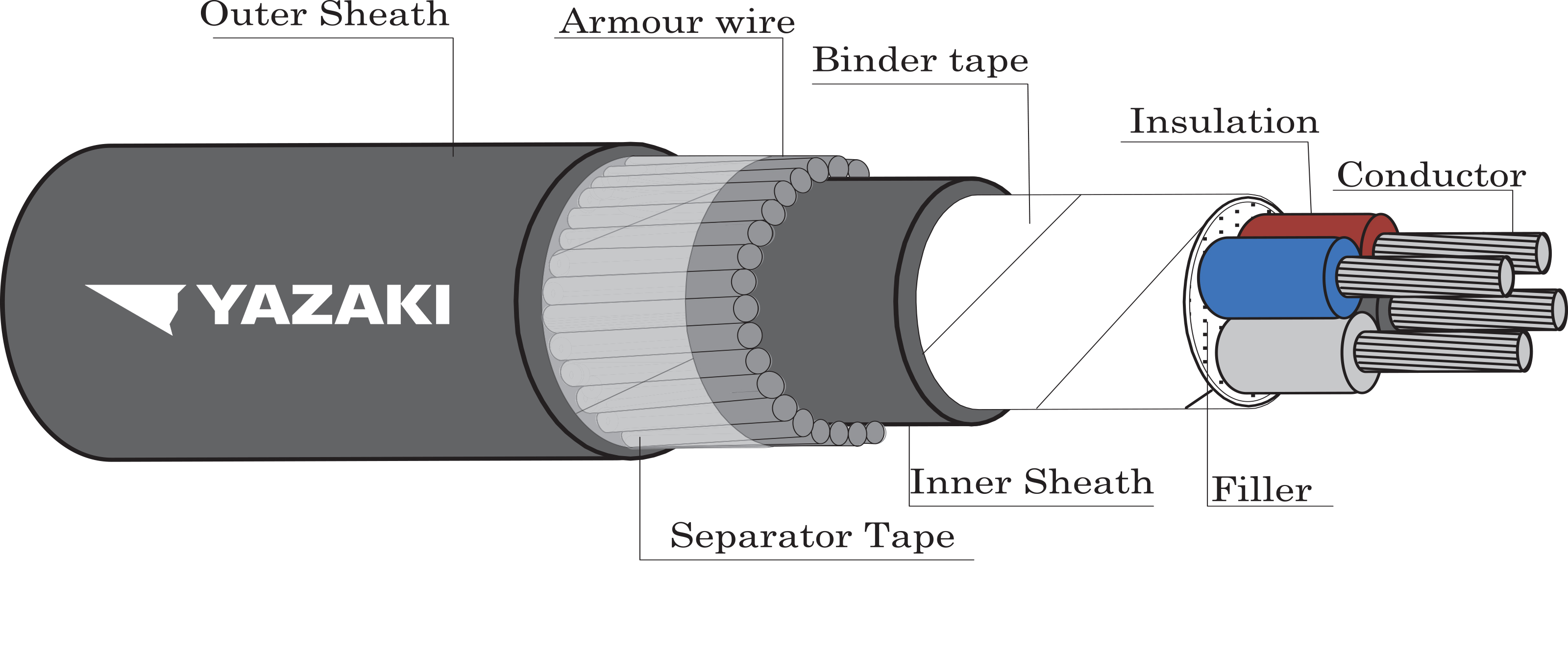

FD-0.6/1KV-AL-CV-SWA

0.6/1 KV 90°C ALUMINIUM CONDUCTOR CROSS-LINKED POLYETHYLENE INSULATED PVC SHEATHED, WITH GALVANIZED STEEL WIRES ARMORED FLAME RETARDANT POWER CABLE

CONDUCTOR
      Compacted stranded hard drawn aluminium
>
>
>
INSULATION
    Cross-linked Polyethylene (XLPE)
>
CORE IDENTIFICATION
      2 Core : Blue and Brown
      3 Core : Brown, Black and Grey
      4 Core : Blue, Brown, Black and Grey
>
>
INNER SHEATH
      Black polyvinyl chloride (PVC)
>
>
>
ARMOUR
      Galvanized Steel Wires
>
>
OUTER SHEATH
         Black Flame retardant polyvinyl chloride (PVC/ST2)
CLASSIFICATION
    Maximum conductor temperature 90°C

        Circuit voltage not exceeding 1,200 Volts

RATED VOLTAGE
      600 Volts between Line to Earth
      1,000 Volts between Line to Line
TESTING VOLTAGE
    3,500 Volts
REFERENCE STANDARD
    IEC 60502-1, IEC 60228, IEC 60332-1,
      IEC 60332-3-24 (Cat.C)
APPLICATION
      For installation exposed or in raceway, wet or dry location, or direct burial in ground

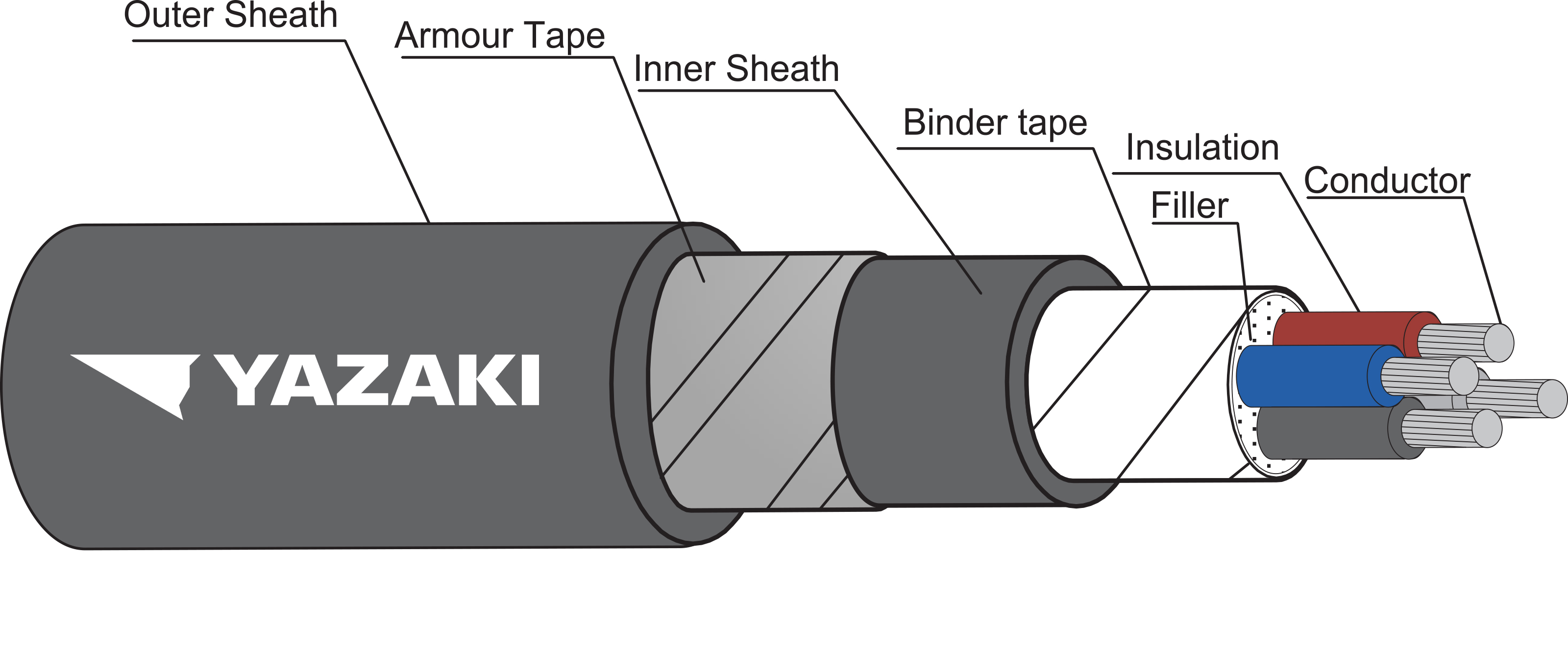

FD-0.6/1KV-AL-CV-STA

0.6/1 KV 90°C ALUMINIUM CONDUCTOR CROSS-LINKED POLYETHYLENE INSULATED PVC SHEATHED STEEL TAPE ARMOUR FLAME RETARDANT POWER CABLE

CONDUCTOR
    Compacted stranded hard drawn aluminium
>
>
>
INSULATION
      Cross-linked Polyethylene (XLPE)
>
CORE IDENTIFICATION
      2 Core : Blue and Brown
      3 Core : Brown, Black and Grey
      4 Core : Blue, Brown, Black and Grey
>
>
INNER SHEATH
    Black polyvinyl chloride (PVC)
>
>
>
ARMOUR
    2 Layers galvanized Steel Tape
>
>
OUTER SHEATH
    Black Flame retardant polyvinyl chloride (PVC/ST2)
CLASSIFICATION
        Maximum conductor temperature 90°C
      Circuit voltage not exceeding 1,200 Volts
RATED VOLTAGE
    600 Volts between Line to Earth
    1,000 Volts between Line to Line
TESTING VOLTAGE
    3,500 Volts
REFERENCE STANDARD
    IEC 60502-1, IEC 60228, IEC 60332-1,
    IEC 60332-3-24 (Cat.C)
APPLICATION
    For installation exposed or in raceway, wet or dry location, or direct burial in ground
